Grizzly G0634XP - Manual (Page 4)

-4-
Model g0634Xp (Mfg. 4/11+)

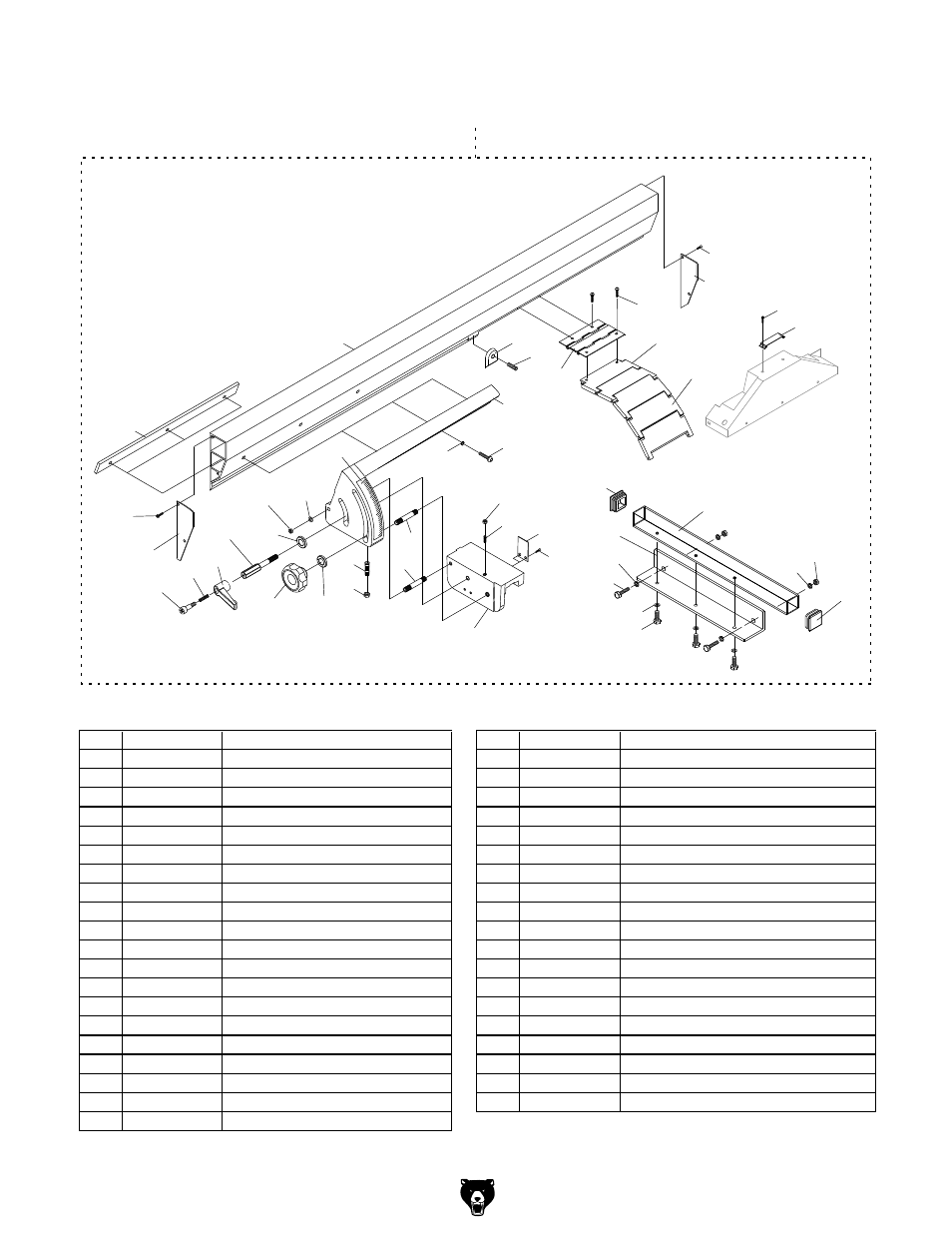

fence/guard parts breakdown
+%'
+%&
+%%
+%(
+%)
+&.
+'*
+'+
+&* +&'
+&%
+%*
+%*
+%,
+'%
+&-
+&+
+&, +',
+')
+'(
+'&
+&)
+&(
+&' +&&
+%+
+'&
+%.
+)%
+)&
+%-
+%-"&
+&%"&
+&%"'
+(.
+%,
+(+
+(&K'
+(+
+)(
+(*
+()
+)*
+))
+)'
+()
REF PART # DESCRIPTION REF PART # DESCRIPTION
600 P0634XP600 COMPLETE FENCE ASSEMBLY 618 PW07 FLAT WASHER 5/16
601 P0634XP601 FENCE 619 P0634XP619 FENCE ANGLE SUPPORT
602 P0634XP602 FENCE FIXED PLATE 620 PCAP03 CAP SCREW 5/16-18 X 1
603 P0634XP603 LEFT FENCE CAP 621 P0634XP621 STUD-UDE 3/8-16 X 2-1/2 1/2 / 3/4RH
604 P0634XP604 RIGHT FENCE CAP 623 PN05 HEX NUT 1/4-20
605 PHTEK23 TAP SCREW #10 X 1/2 624 PSS10 SET SCREW 1/4-20 X 5/8
606 P0634XP606 REAR GUARD HINGE 625 P0634XP625 FENCE SUPPORT
607 PS17M PHLP HD SCR M4-.7 X 6 626 P0634XP626 FENCE SUPPORT PLATE
608 P0634XP608 REAR GUARD CONNECTOR 627 PFH01 FLAT HD SCR 10-24 X 3/8
608-1 P0634XP608-1 REAR GUARD LINK 631V2 P0634XP631V2 FENCE RAIL W/BRACE HOLES V2.04.11
609 P0634XP609 FENCE ANGLE SCALE 634 PLW04 LOCK WASHER 3/8
610 P0634XP610 FENCE LOCK LEVER 635 PN08 HEX NUT 3/8-16
610-1 P0634XP610-1 COMPRESSION SPRING 636 P0634XP636 FENCE RAIL END CAP
610-2 P0634XP610-2 PHLP SHOULDER SCR M5-.8 X 15 639 P0634XP639 FIXED PLATE
611 P0634XP611 FENCE LOCK LEVER SCREW 640 P0634XP640 PLASTIC PROTECTION SHOE
612 PW02 FLAT WASHER 3/8 641 PSS29 SET SCREW 10-24 X 1/4
613 PLN01 LOCK NUT 3/8-16 642 P0634XP642 FENCE RAIL BRACE
614 PW02 FLAT WASHER 3/8 643 PB16 HEX BOLT 3/8-16 X 1-1/2
615 P0634XP615 ANGLE ADJUSTMENT KNOB 3/8 644 PW06 FLAT WASHER 1/4
616 PN02 HEX NUT 5/16-18 645 PB19 HEX BOLT 1/4-20 X 1/2
617 PSS01 SET SCREW 5/16-18 X 1
