-10-
Model g0634Xp (Mfg. 4/11+)
lubrication
Follow all lubrication instructions outlined on
pages 35–36 of the manual. lubricate the
g634Xp fence with multi-purpose grease, as
shown in
figures 7–8.

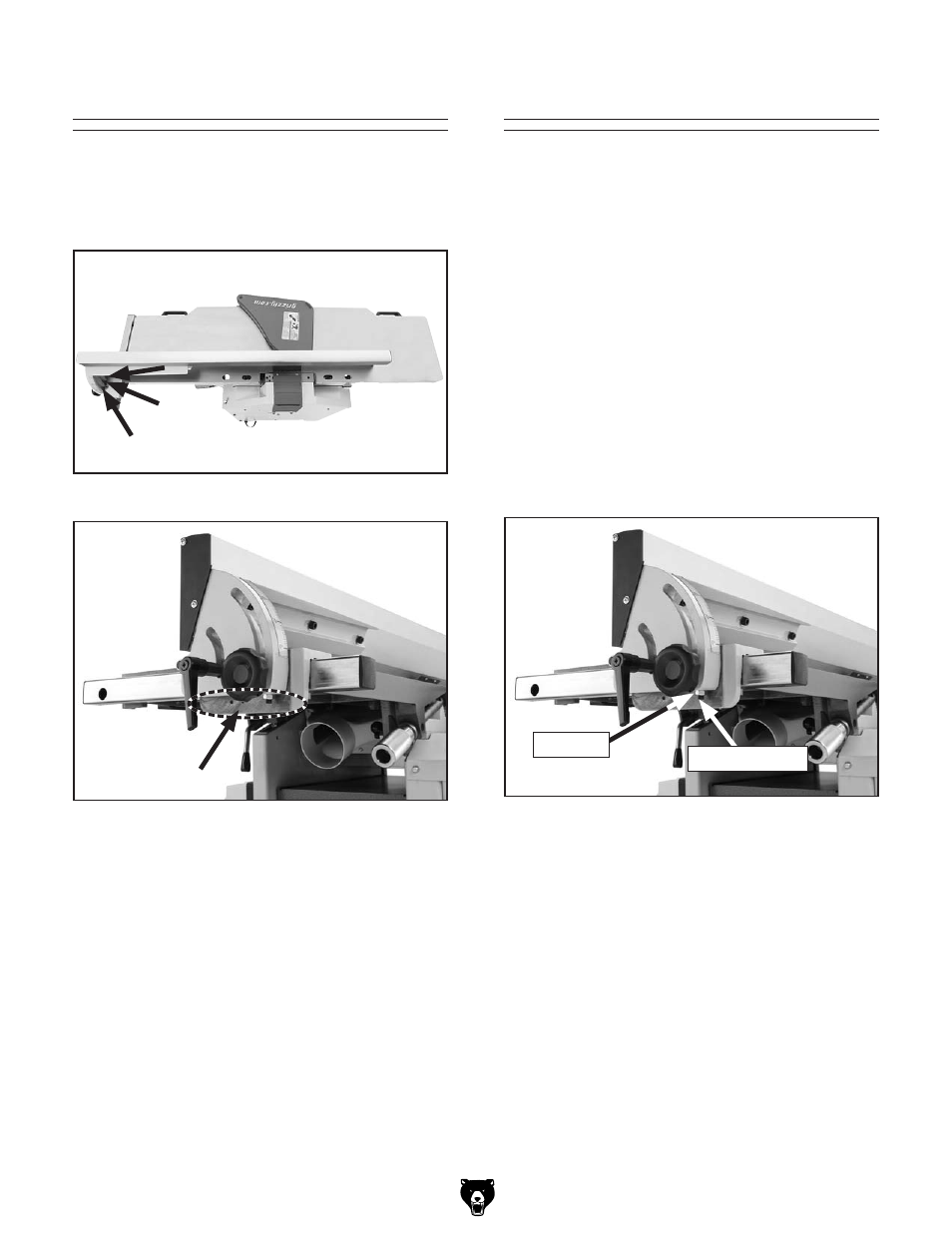

figure 7. inside fence lubrication locations.
the fence stops simplify the task of adjusting the
fence to 45˚ and 90˚.
tools needed Qty
45° square ........................................................ 1
90° square ........................................................ 1
sliding Bevel ...................................................... 1
Wrench 10mm ................................................... 1
Wrench 12mm ................................................... 1
hex Wrench 3mm .............................................. 1
hex Wrench 4mm .............................................. 1
to set the 90˚ fence stop:
1. loosen the lock nut on the 90° fence stop
screw shown in figure 9 , and loosen the
fence tilt knob.
setting fence stops
2. place a 90° square against the table and
fence, and adjust the stop screw so the fence
is set exactly at 90°.
3. tighten the lock nut.
figure 9. Adjusting fence to 90°.
90˚stop screw
lock Nut
figure 8. outside fence lubrication location.
