G0594 Large Chipper/Shredder
-15-
Replacing V-Belt

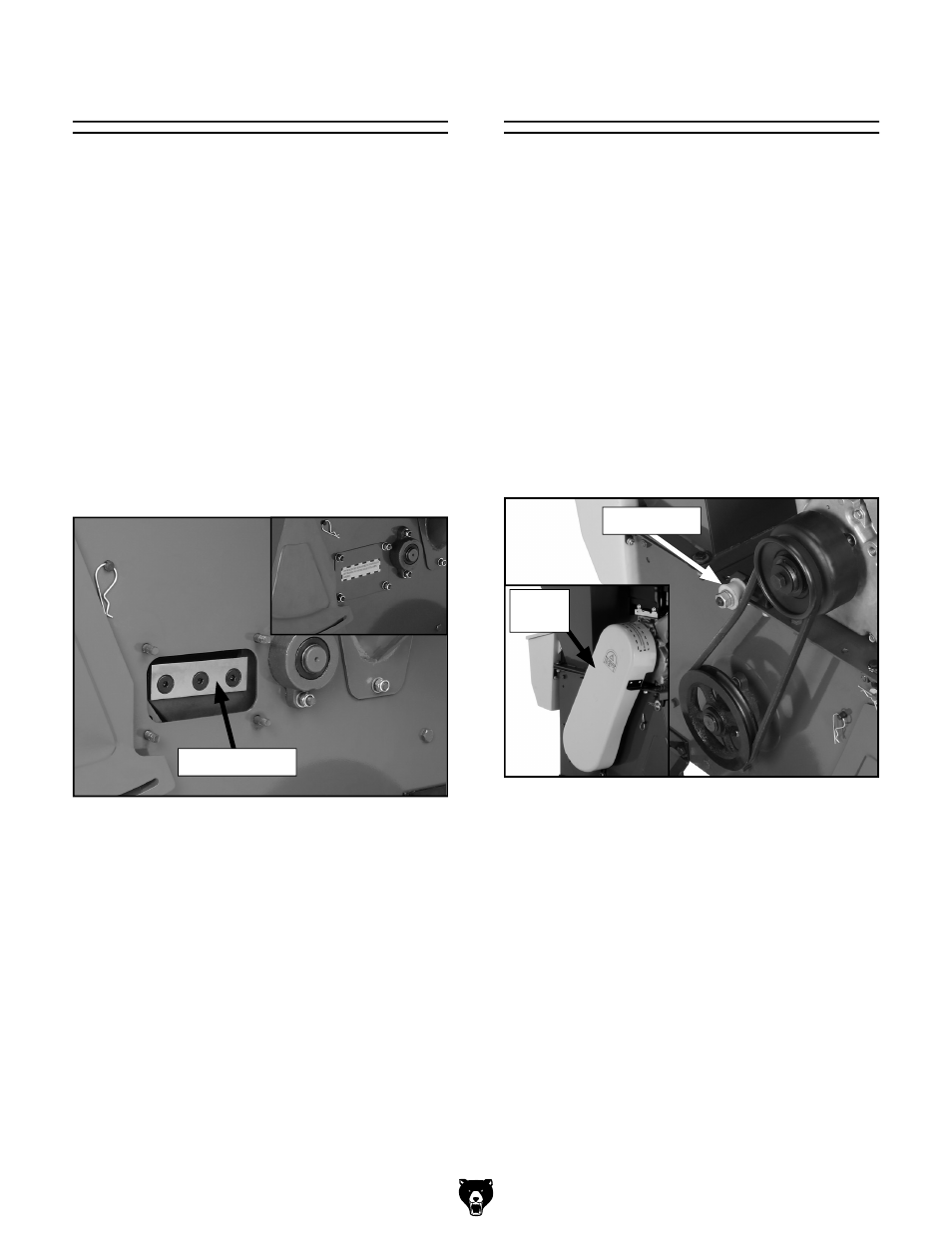

Figure 12. Replacing V-belt.
3. Loosen the idler pulley and roll the belt off of
the pulleys (see Figure 12).
4. Install the new belt and adjust the idler pulley
so the V-belt deflects approximately 3 ⁄
8
" when
pushed with moderate pressure.
5. Replace the V-belt cover and re-attach the
spark plug wire.
Replacing Blades
Figure 11. Chipper blade.
3. Remove one blade, rotate the impeller, and
remove the second blade.
4. Have the original blades professionally
sharpened, or order a replacement set, then
re-install the blades.
5. Replace the side cover plate and re-attach
the spark plug wire.
Sharpen or replace the blades as soon as the
chipping performance begins to deteriorate, or if
you notice dings, chips, or cracks.
Tools Needed Qty
Wrench/Socket 13mm ....................................... 1
Hex Wrench 5mm .............................................. 1
To perform this procedure:
1. TURN OFF THE MACHINE, ALLOW ALL
MOVING PARTS TO COME TO A COM-
PLETE STOP, AND DISCONNECT THE
SPARK PLUG WIRE!
2. Remove the side cover plate (photo inset in
Figure 11) to expose the blades.
Replace or tighten the V-belt if you notice the
motor running and the chipper blades are not
spinning.
Tools Needed Qty
Wrench/Socket 13mm ....................................... 1
To perform this procedure:
1. TURN OFF THE MACHINE, ALLOW ALL
MOVING PARTS TO COME TO A COM-
PLETE STOP, AND DISCONNECT THE
SPARK PLUG WIRE!
2. Remove the pulley cover (photo inset in
Figure 12).
Idler Pulley
Chipper Blade
Pulley
Cover
