8 308018
Installation
KEY
A Main Air Supply Line
B* Ventilation Fan Interlock Solenoid Valve
C* Main Air Supply Shutoff Valve
(bleed-type)
D Air & Water Separator
E* Pump Air Supply Shutoff Valve
(bleed-type)
F Air Line Lubricator
G Air Pressure Regulator
H Pump
J* Pump Ground Wire
K Fluid Filter
L Fluid Supply Line Shutoff Valve
M Fluid Pressure Regulator
N Fluid Supply Line
O Air Filter (20 micron)
P Air Supply Line
Shutoff Valve
Q* Air Hose Ground Wire
R* Graco Electrically Conductive Air Hose
S
Electrostatic Spray Gun
T Air Line Drain Valve
U* Fluid Drain Valve
V
Gun Air Inlet
W Gun Fluid Inlet
X
Gun Exhaust Tube
* Required for safe operation. Must pur-
chase separately. See Accessories.
NOTE: Solenoid Valve (B) is not offered
as a Graco accessory.
06620

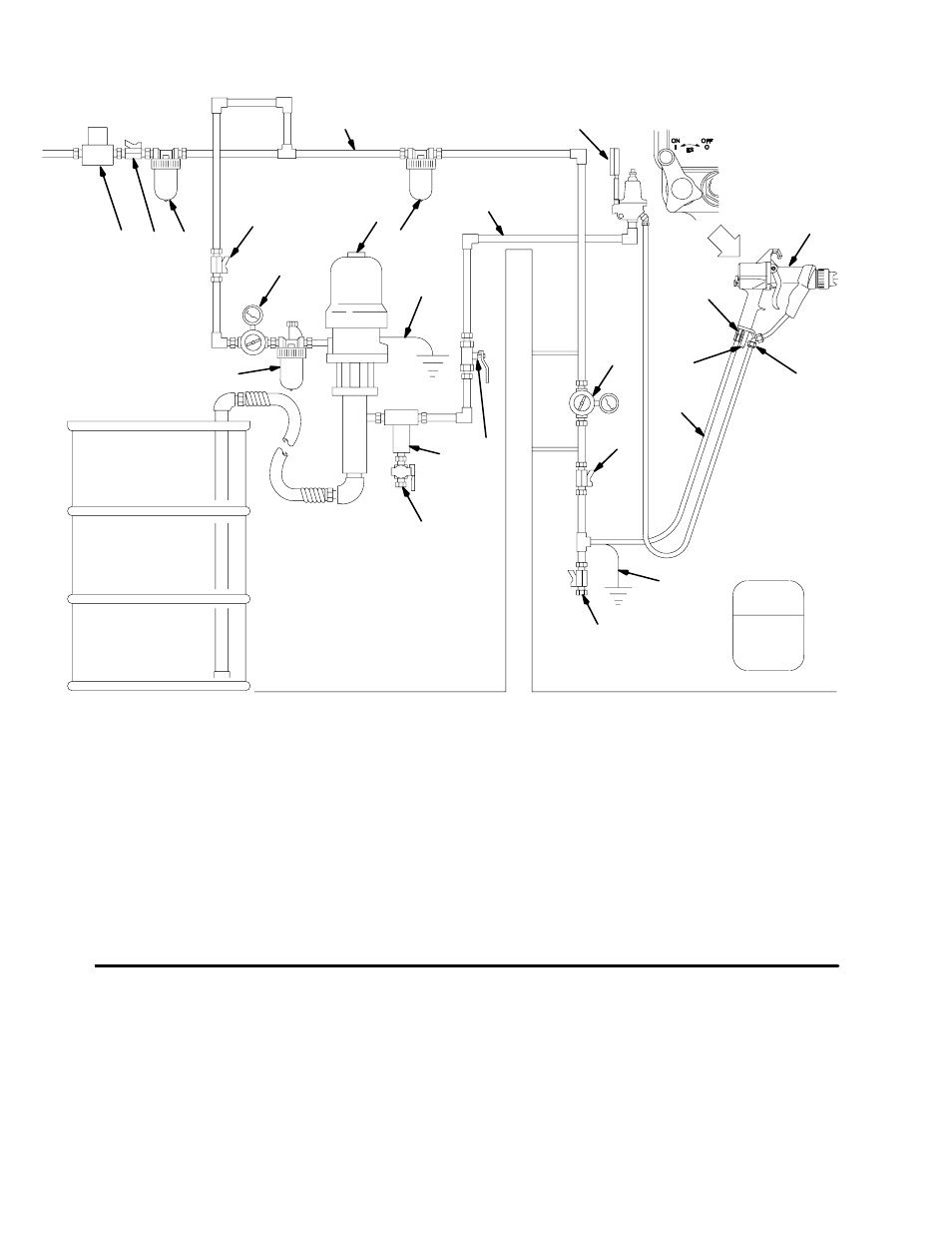

Fig. 1
Non-hazardous Area Hazardous Area
WARNING
SIGN
B* C* D O
A M
N
H E*
G
F
U*
K L
T
Q*
R
G
P
V
W
S
J*
X
The air supply to the gun must be electrically interlocked with the ventilators to
prevent the power supply from operating without ventilating fans on.
ES ON-OFF Lever
1 is ON 0 is OFF
