tools Needed Qty
hex Wrench 3mm .............................................. 1
Wrench 14mm ................................................... 1
rotacator ........................................................... 1
to adjust the bed rollers:
1. disConnECt plAnEr FroM poWEr!
2. lower the table all the way to give yourself
room to work.
3. loosen the set screws above each of the four
roller adjustment hex bolts (see figure 19).

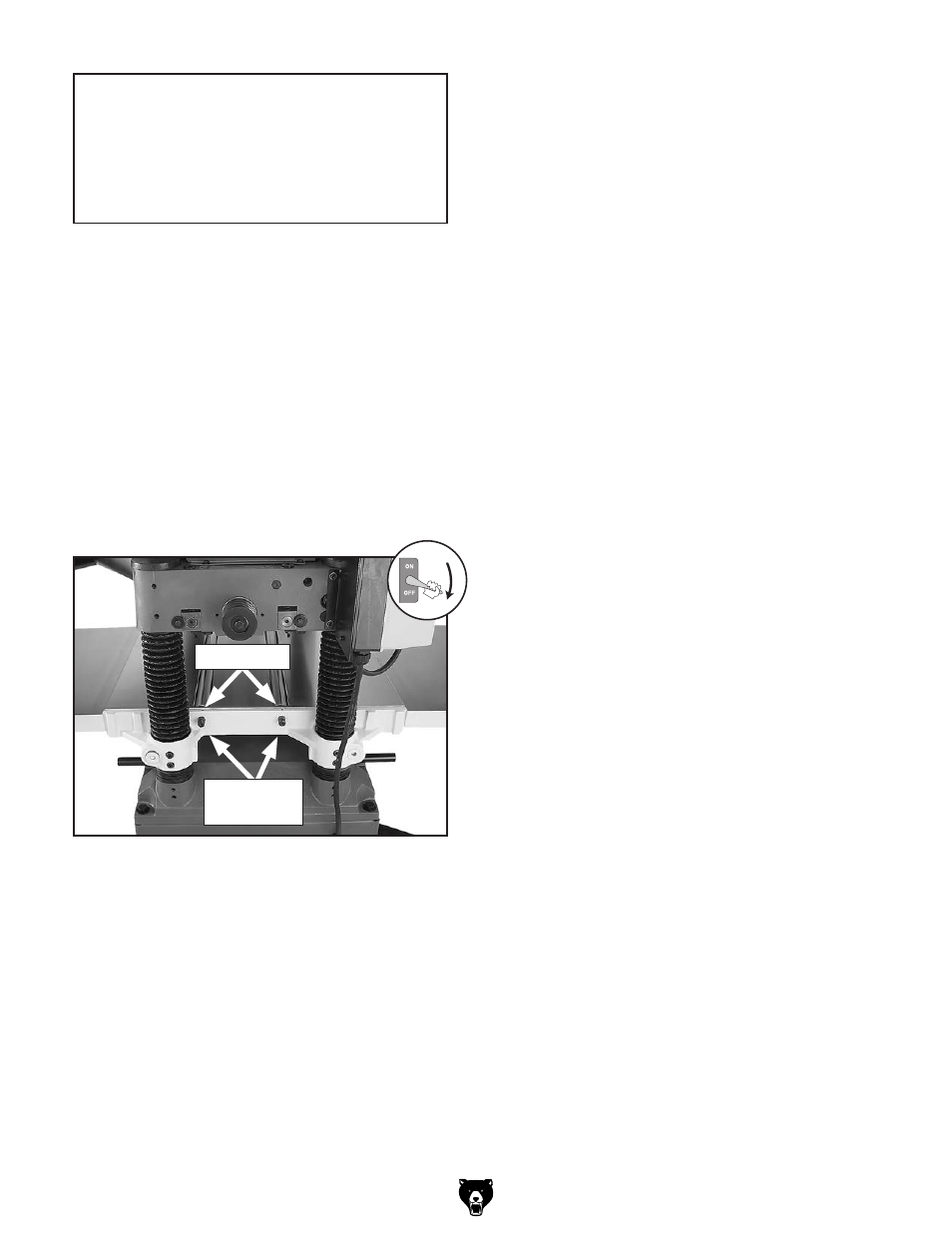

figure 19. Bed roller height controls.
set screws
Adjustment
hex Bolts
4. rotate the eccentric adjustment hex bolts to
raise or lower the bed rollers until they are the
desired height above the table surface.
5. Verify that both sides of each roller are at
the same height, then re-tighten the four set
screws to secure the setting.
6. re-check the roller heights to make sure they
did not change when you secured them.
— if the roller heights are not correct, repeat
this procedure until they are.
NOTICE
Bed rollers that are not adjusted to the cor-
rect height or out of alignment with each
other can cause poor finishes, inconsistent
planing thickness, and other undesirable
results.
