GN-B41G Wireless Broadband Router
„ UPnP Delete Time
Select the duration that UPnP will be active. Default
setting is 0.
Note: If the WAN IP address and LAN IP address obtained from
DHCP server are from the same subnet, the LAN IP
address will automatically change to another subnet and
reboot the router.
Verify the settings. Then to apply these to your router, click the Finish button

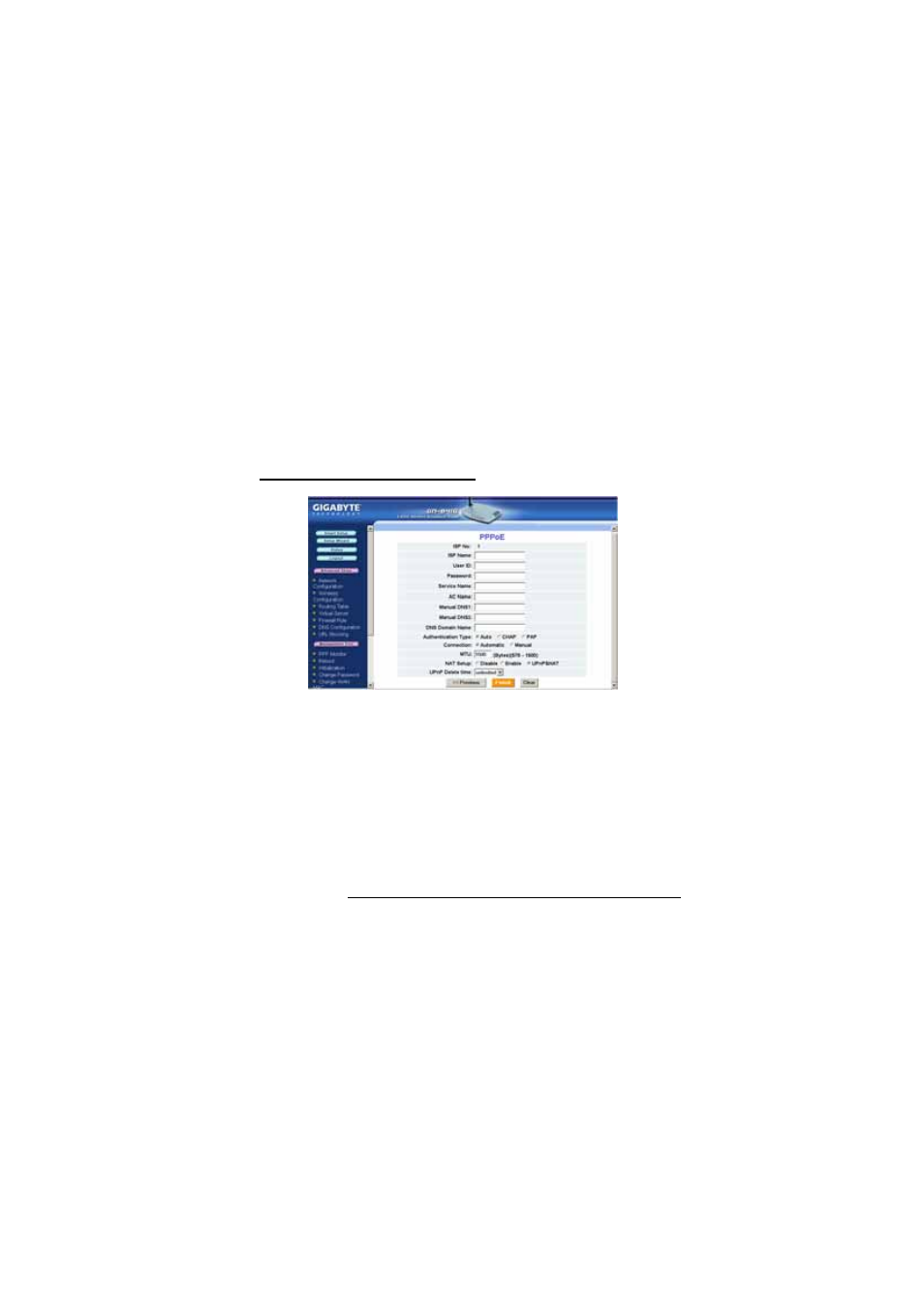

WAN Configuration Tab - PPPoE
„ ISP Name, User ID, Password, Service Name, AC
Name, DNS1 and DNS2 Address, DNS Domain Name
Enter the information provided by your ISP.
„
Authentication Type
Select one of the following authentication settings: Auto,
CHAP or PAP. The default setting is “Auto” (automatic
authentication).
Challenge Handshake Authentication Protocol(CHAP) is
the most common authentication method using PPP
dialup method. With CHAP, the server will send a
challenging signal to a remote Router, which will send
back an encryption key.
49
