CHAPTER 9: PROGRAMMING GROUP 0 – GLOBAL METER SETUP
56 EPM 5000 series Advanced Power Meters GE Multilin
MAX/MIN
LIMITS
KVAR
PF
KW
KVA
FREQ KWH KVAH
AC VOLTS
AC AMPS
POWER
N C B A
MAX
MIN A
N
B
N
C
N
A
B
B
C
C
A
LM2
LM1
NEXT
PHASE
VOLTS AMPS POWER
MAX/MIN
LIMITS
KVAR
PF
KW
KVA
FREQ KWH KVAH
AC VOLTS
AC AMPS
POWER
N C B A
MAX
MIN A
N
B
N
C
N
A
B
B
C
C
A
LM2
LM1
NEXT
PHASE
VOLTS AMPS POWER

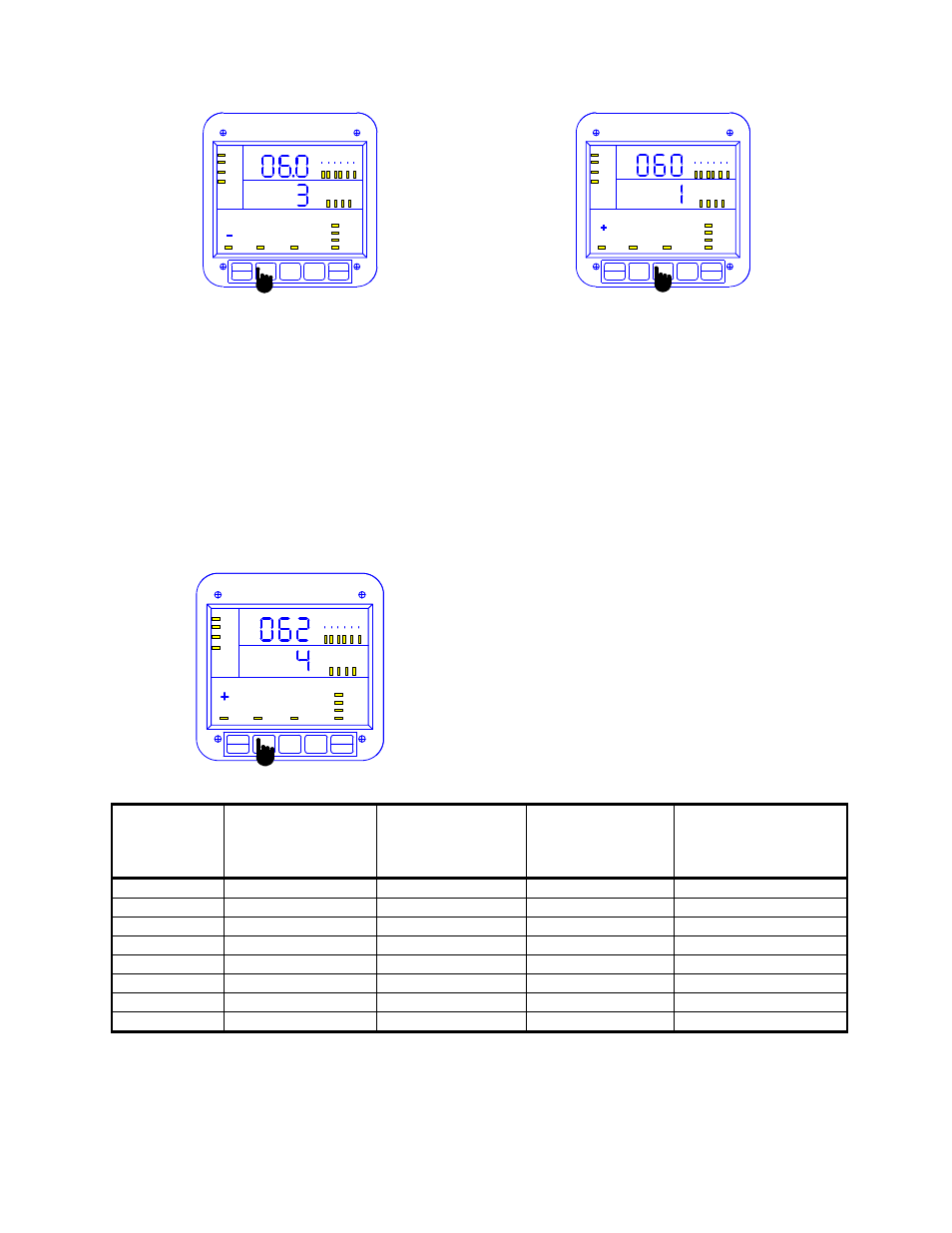

Step 3:
a. Press VOLTS once and 06.0 appears in
upper display.
!
Middle display indicates preset value.
! Lower display indicates polarity of selected
parameter and an annunciator indicates the selected
parameter.
Step 4:
a. Press AMPS once to select a different parameter.
b. Press MAX/MIN/LIMITS to increase the parameter
number
—or—
c. Press VOLTS to decrease (until desired parameter
appears).
d. Press AMPS to store.
! A decimal appears in upper level. (Models with
-NL Option, FUNCTION 6 is complete).
MAX/MIN
LIMITS
KVAR
PF
KW
KVA
FREQ KWH KVAH
AC VOLTS
AC AMPS
POWER
N C B A
MAX
MIN
A
N
B
N
C
N
A
B
B
C
C
A
LM2
LM1
NEXT
PHASE
VOLTS AMPS POWER
A PPLIES TO -NL2 O PTION ONLY :
Step 5:
a. Press VOLTS to proceed to another port (06.1 or
06.2).
!
Repeat this procedure to change parameters.
See Chapter 14 to Exit.
SELECTION
IN 06P
KYZ PULSE
VALUE PER
WATT HOUR
FSW=9999.
KYZ PULSE
VALUE PER
WATT HOUR
FSW=999.9
KYZ PULSE
VALUE PER
WATT HOUR
FSW=99.99
KYZ PULSE VALUE
PER WATT HOUR
FSW=9.999
Multiply by 1 1.0 unit WH 0.1 unit WH 0.01 unit WH 0.001 unit WH
Multiply by 2 0.5 unit WH ➀ 0.05 unit WH ➁ 0.005 unit WH 0.0005 unit WH
Multiply by 10 0.1 unit WH 0.01 unit WH 0.001 unit WH 0.0001 unit WH
Multiply by 20 0.05 unit WH 0.005 unit WH 0.0005 unit WH ➂ 0.00005 unit WH ➃
Divide by 1 1.0 unit WH 0.1 unit WH 0.01 unit WH 0.001 unit WH
Divide by 2 2.0 unit WH 0.2 unit WH 0.02 unit WH 0.002 unit WH
Divide by 10 10.0 unit WH ➄ 1.0 unit WH ➅ 0.1 unit WH 0.01 unit WH
Divide by 20 20.0 unit WH 2.0 unit WH 0.2 unit WH ➆ 0.02 unit WH ➇
Table 9-6: KYZ Pulse Value
NOTE:
The unit WH refers to the counter value on the meter, where the unit equals Kilo or Mega user-
defined.
The FSW number is used only for decimal point placement (see Chapter 10).
