CHAPTER 3: ELECTRICAL INSTALLATION
GE Multilin EPM 5000 series Advanced Power Meters 13
7
6
5
4
3
2
1
8 9 10 11 12 13
LINE
A B
LOAD L
L1
POWER
+
-
PORT
BACK VIEW

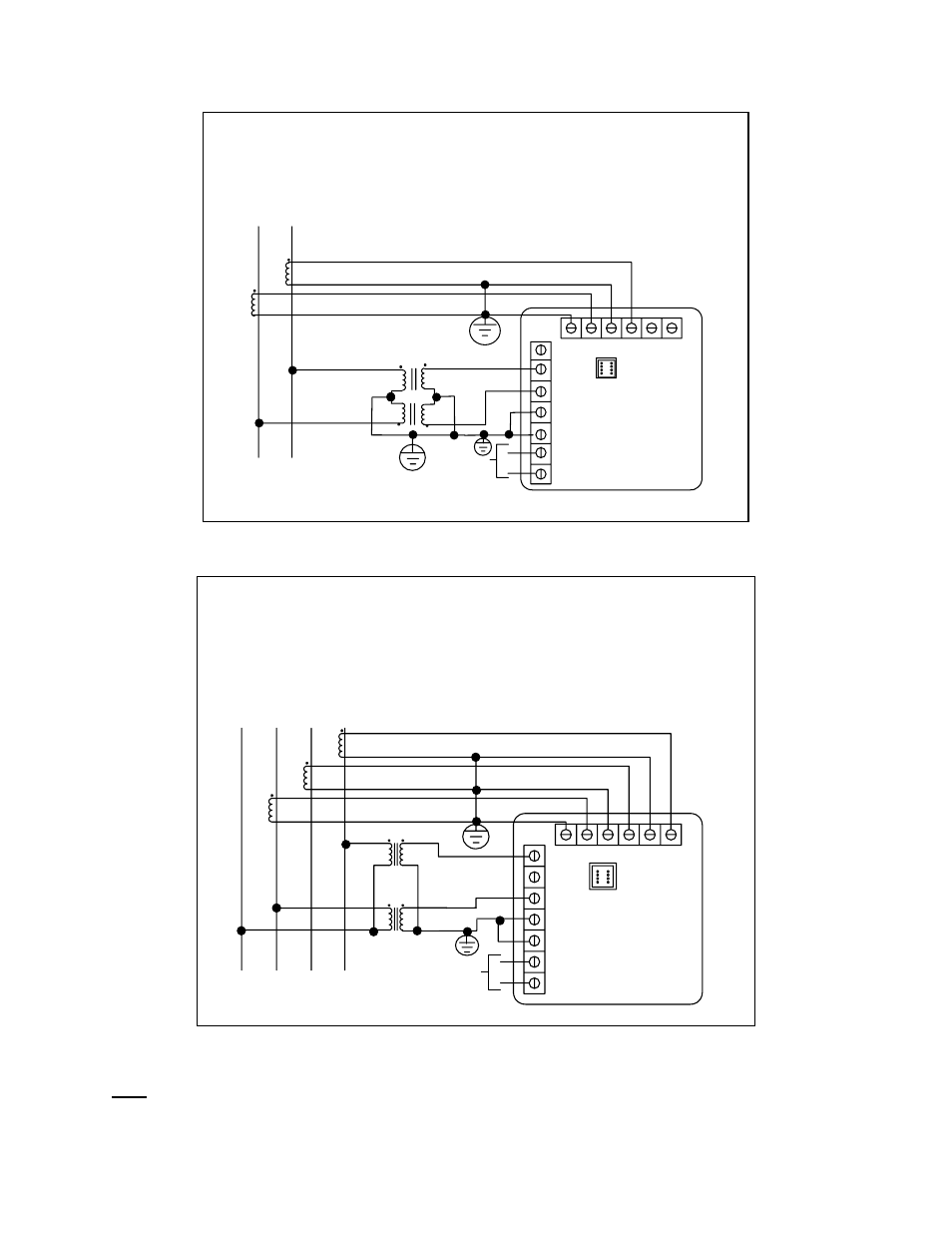

VII. Dual-Phase with CTs and PTs
7
6
5
4
3
2
1
8 9 10 11 12 13
LINE
N A B C
LOAD L
L1
CONTROL
POWER
+
-
PORT
BACK VIEW
VIII. Three-Phase Four-Wire WYE with 2.5 Element
Note: The 2.5 element option must be custom configured from the factory. You must pre-order this
configuration.
