CHAPTER 3: ELECTRICAL INSTALLATION
GE Multilin EPM 5000 series Advanced Power Meters
11
CONTROL
+
-
POWER
7
6
5
4
3
2
1
8
9 10 11 12
13
PORT
L1
L
LINE
N A B
C
LOAD
BACK VIEW

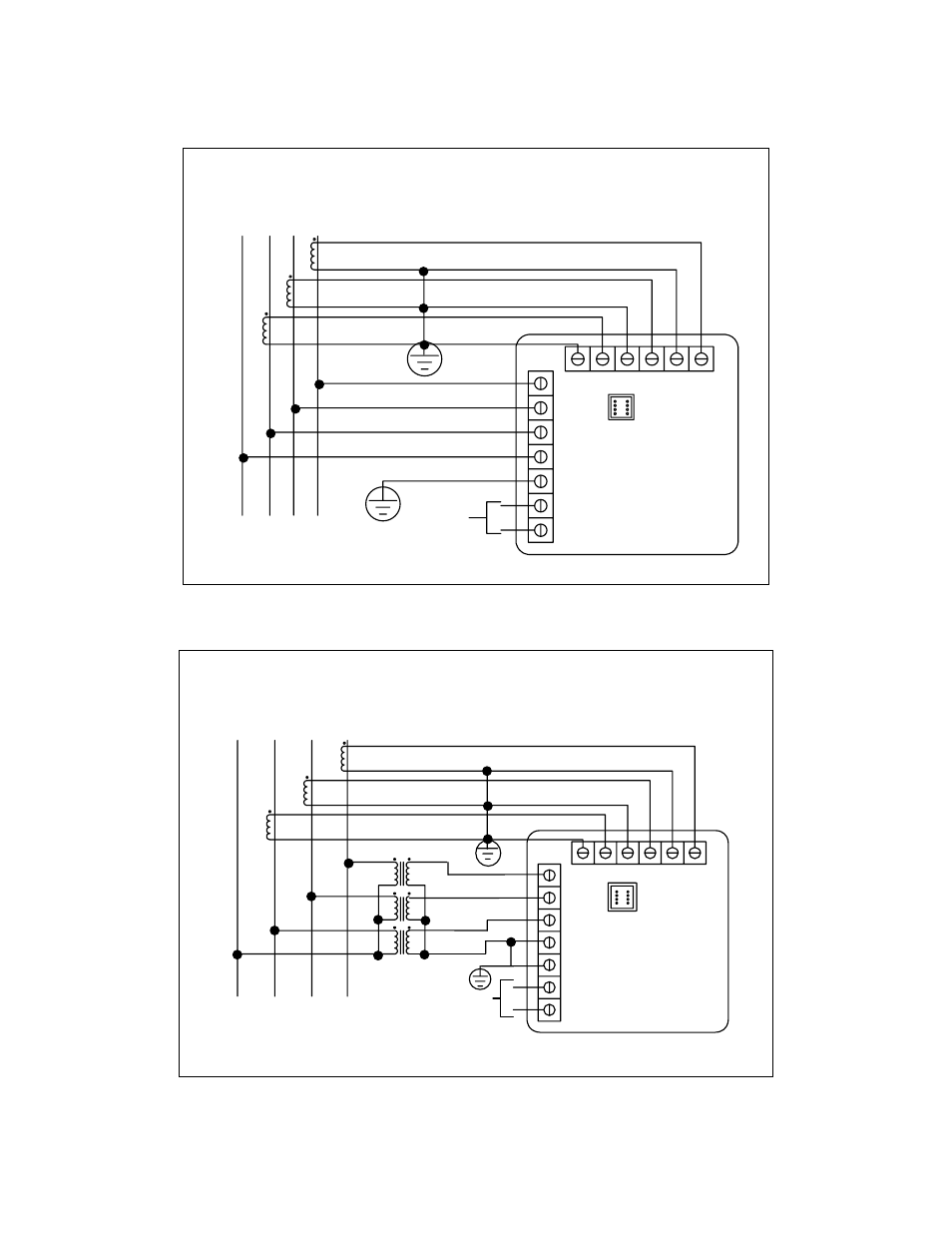

IV. Three-Phase Four-Wire Wye with Direct Voltage and CTs
7
6
5
4
3
2
1
8
9 10 11 12 13
LINE
N
A
B
C
LOAD
L
L1
POWER
+
-
PORT
BACK VIEW
V. Three Phase Four-Wire Wye with CT and PTs
