- 30 - GA-K8VM800M Motherboard
English

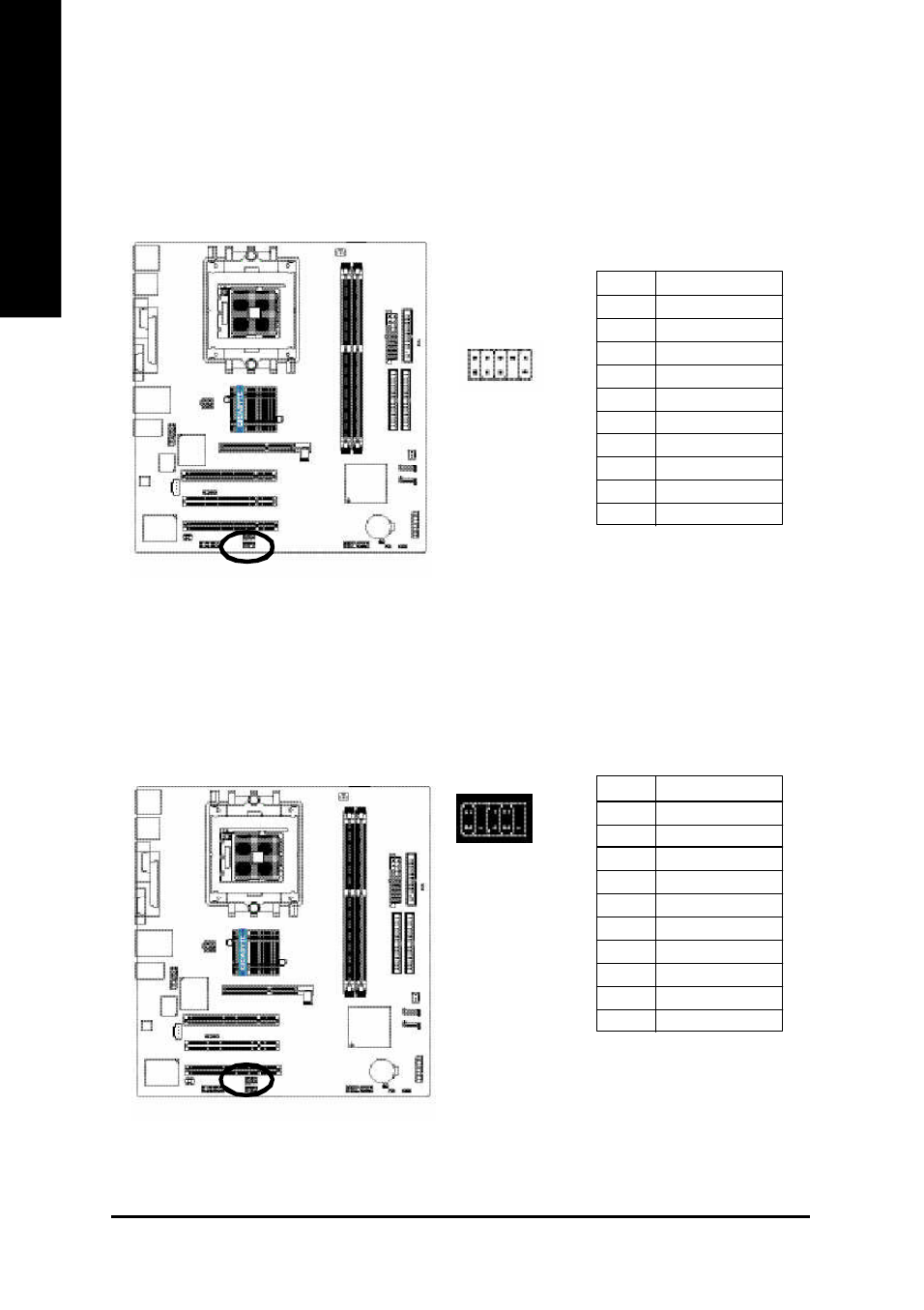

18) INFO_LINK
This connector allows you to connect some external devices to provide you extra function. Check
the pin assignm ent while you connect the external device cable. Please contact your nearest
dealer for optional external device cable.
Pin No. Definition
1 SMBCLK
2 VCC
3 SMBDATA
4 GPIO
5 GND
6 GND
7 No Pin
8 NC
9 +12V
10 +12V
19) COMB (COM B Connector)
Be careful with the polarity of the COMB connector. Check the pin assignm ent carefully while you
connect the COM B cable, incorrect connection between the cable and connector will make the
device unable to work or even damage it. For optional COM B cable, please contact your local
dealer.
Pin No. Definition
1 NDCDB-
2 NSINB
3 NSOUTB
4 NDTRB-
5 GND
6 NDSRB-
7 NRTSB-
8 NCTSB-
9 NRIB-
10 No Pin
1
10 2
9
1 9
2 10
