English – GIGABYTE GA-K8VM800M User Manual
Page 23
Hardware Installation Process
English
- 23 -

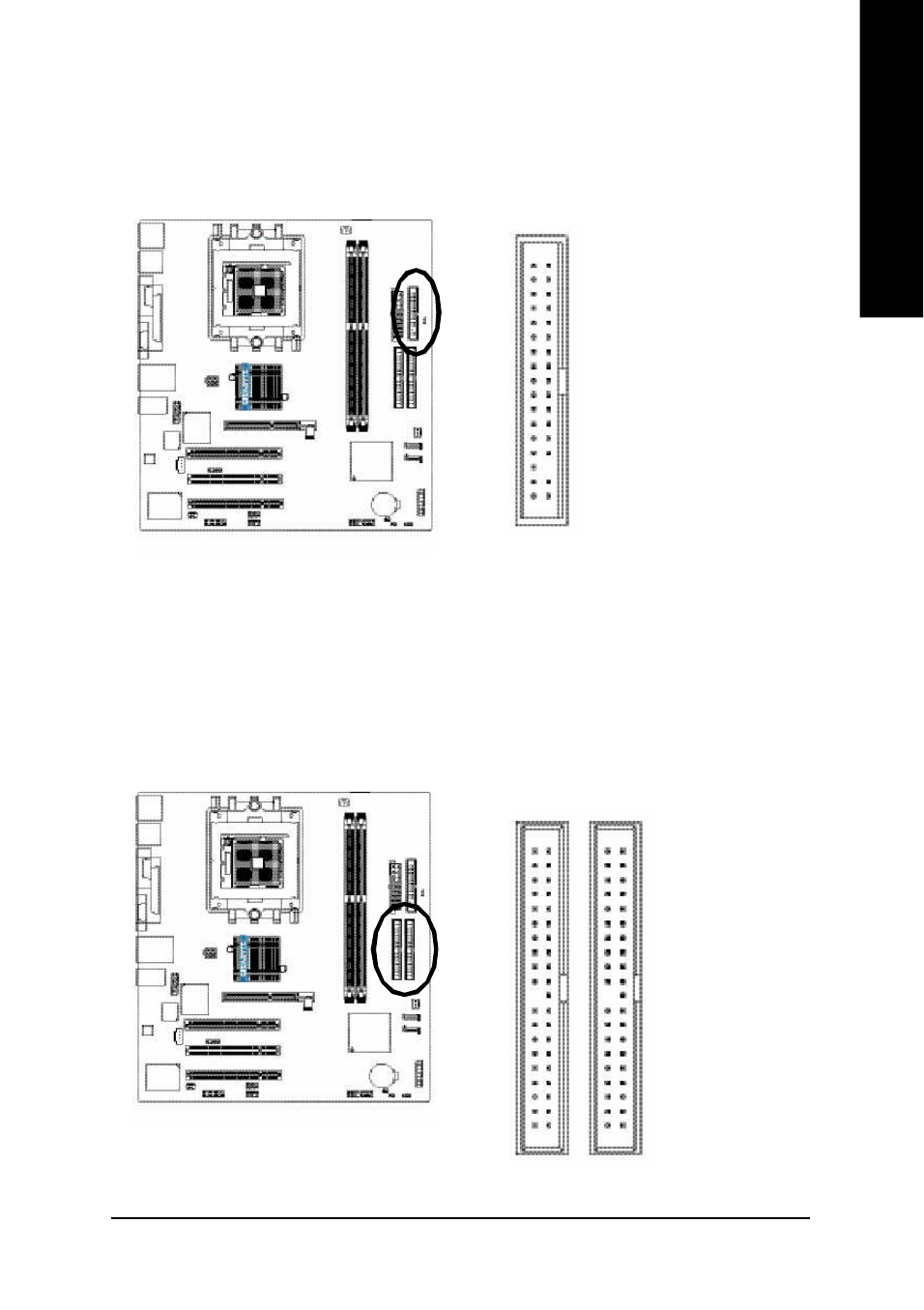

5) FDD (Floppy Connector)
Please connect the floppy drive ribbon cables to FDD. It supports 360K, 1.2M, 720K, 1.44M and
2.88M bytes floppy disk types.
The red stripe of the ribbon cable must be the sam e side with the Pin1.
6) IDE1 / IDE2 (IDE1 / IDE2 Connector)
Im portant Notice:
Please connect first hard disk to IDE1 and connect CD-ROM to IDE2.
The red stripe of the ribbon cable must be the sam e side with the Pin1.
1
33
2
34
39
40
IDE1
1
2
IDE2
