- 24 - GA-K8VM800M Motherboard
English

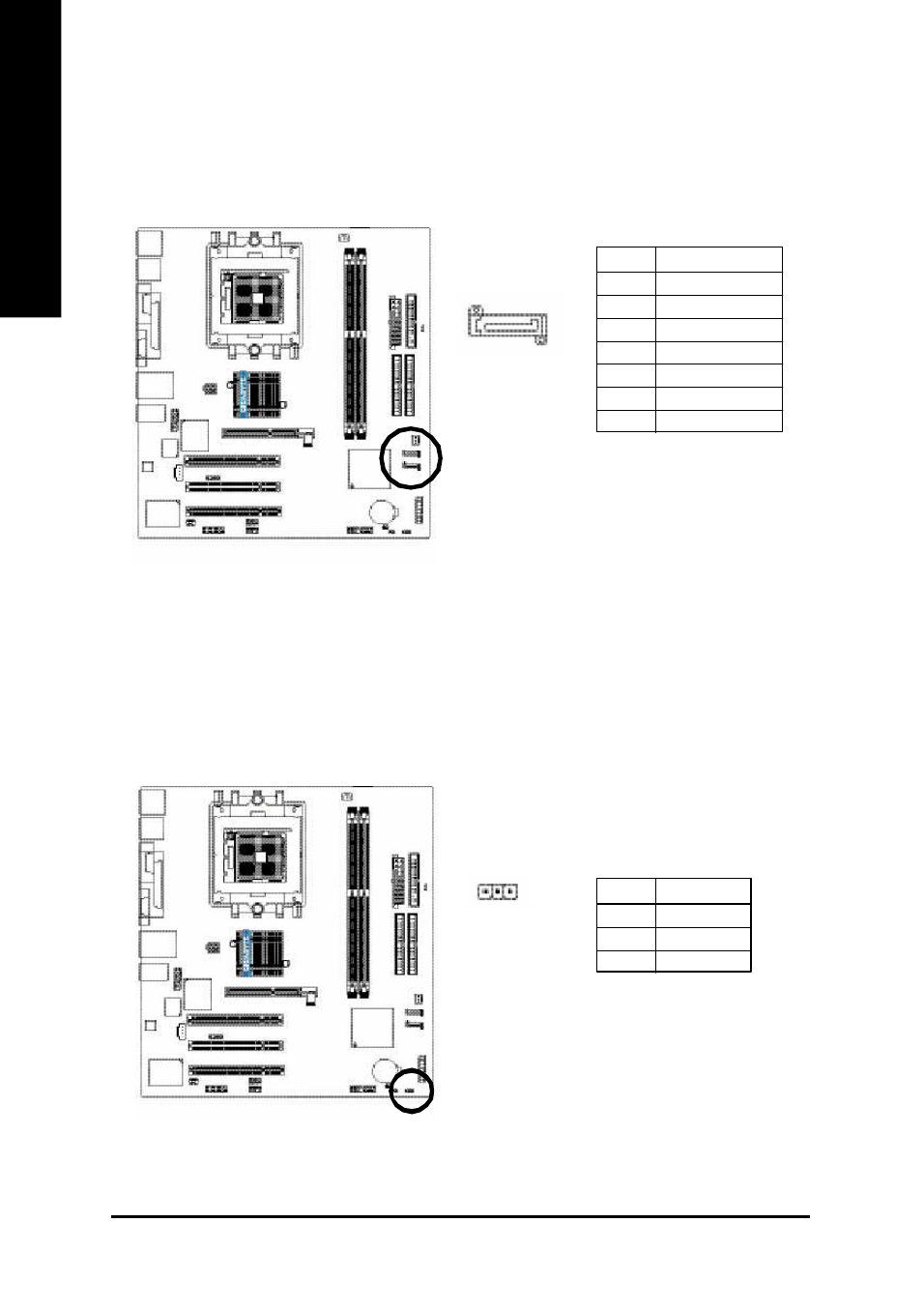

8) PWR_LED
PWR_LED is connect with the system power indicator to indicate whether the system is on/off.
It will blink when the system enters suspend mode. If you use dual color LED, power LED will turn
to another color.
Pin No. Definition
1 MPD+
2 MPD-
3 MPD-
1
7) SATA0 / SATA1 (Serial ATA Connector)
You can connect the Serial ATA device to this connector. If you wish to use RAID function, please
use it in unity with BIOS and install the correct driver to have proper operation.
Pin No. Definition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
7 1
