Grizzly 10" x 22" Benchtop Lathe G0602 - Manual (Page 79)

Model G0602/G0752 (Mfg. Since 11/12)
-77-
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230 231
208
220A

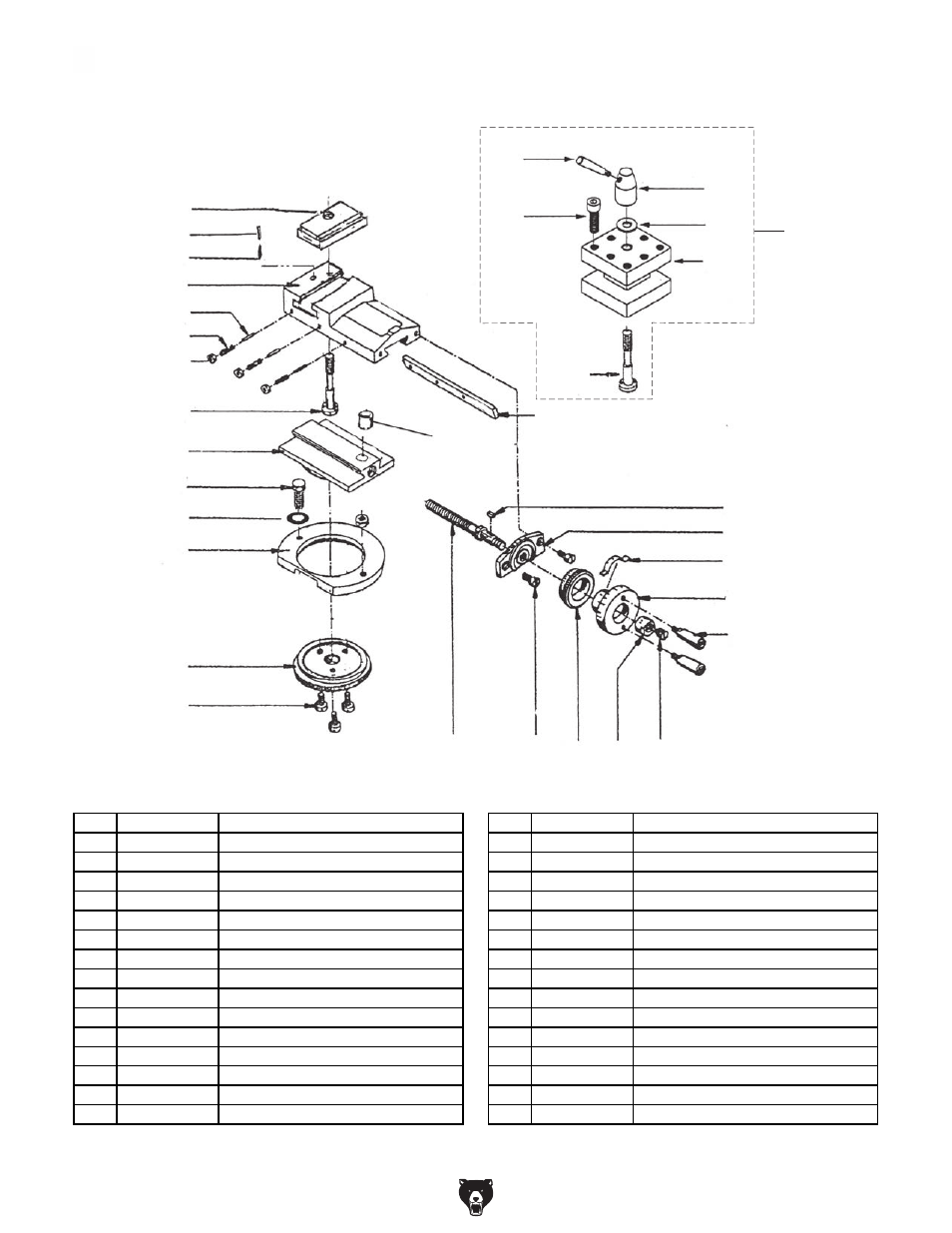

tool post & compound rest
REF PART # DESCRIPTION REF PART # DESCRIPTION
201 P0602201 COMPOUND REST 217 PB26M HEX BOLT M8-1.25 X 30
202 P0602202 SWIVEL BASE 218 P0602218 TOOL POST HANDLE
203 P0602203 COMPOUND REST GIB 219 P0602219 TOOL POST HANDLE HUB
204 P0602204 CLAMPING RING 220A P0602220A 4-WAY TOOL POST ASSEMBLY
205 P0602205 GRADUATED DIAL 220 P0602220 TOOL REST
206 P0602206 BARREL NUT 221 P0602221 HUB SPACER
207 P0602207 DOWEL PIN 222 P0602222 TOOL REST SLIDE PLATE
208 P0602208 TOOL POST BOLT 223 P0602223 COMPOUND REST LEADSCREW
209 PW01M FLAT WASHER 8MM 224 P0602224 LEADSCREW MOUNT
210 P0602210 DOWEL PIN 225 P0602225 GRADUATED DIAL
211 P0602211 COMPRESSION SPRING 226 P0602226 COMPOUND REST HANDWHEEL
212 PCAP13M CAP SCREW M8-1.25 X 30 227 P0602227 COMPOUND HANDWHEEL HANDLE
213 PCAP31M CAP SCREW M8-1.25 X 25 228 PK03M KEY 3 X 3 X 8
214 PCAP26M CAP SCREW M6-1 X 12 229 P0602229 POINTER
215 PSS34M SET SCREW M5-.8 X 16 230 P0602230 THREADED COLLAR
216 PN06M HEX NUT M5-.8 231 PSS17M SET SCREW M8-1.25 X 6
