-64-
Model G0602/G0752 (Mfg. Since 11/12)

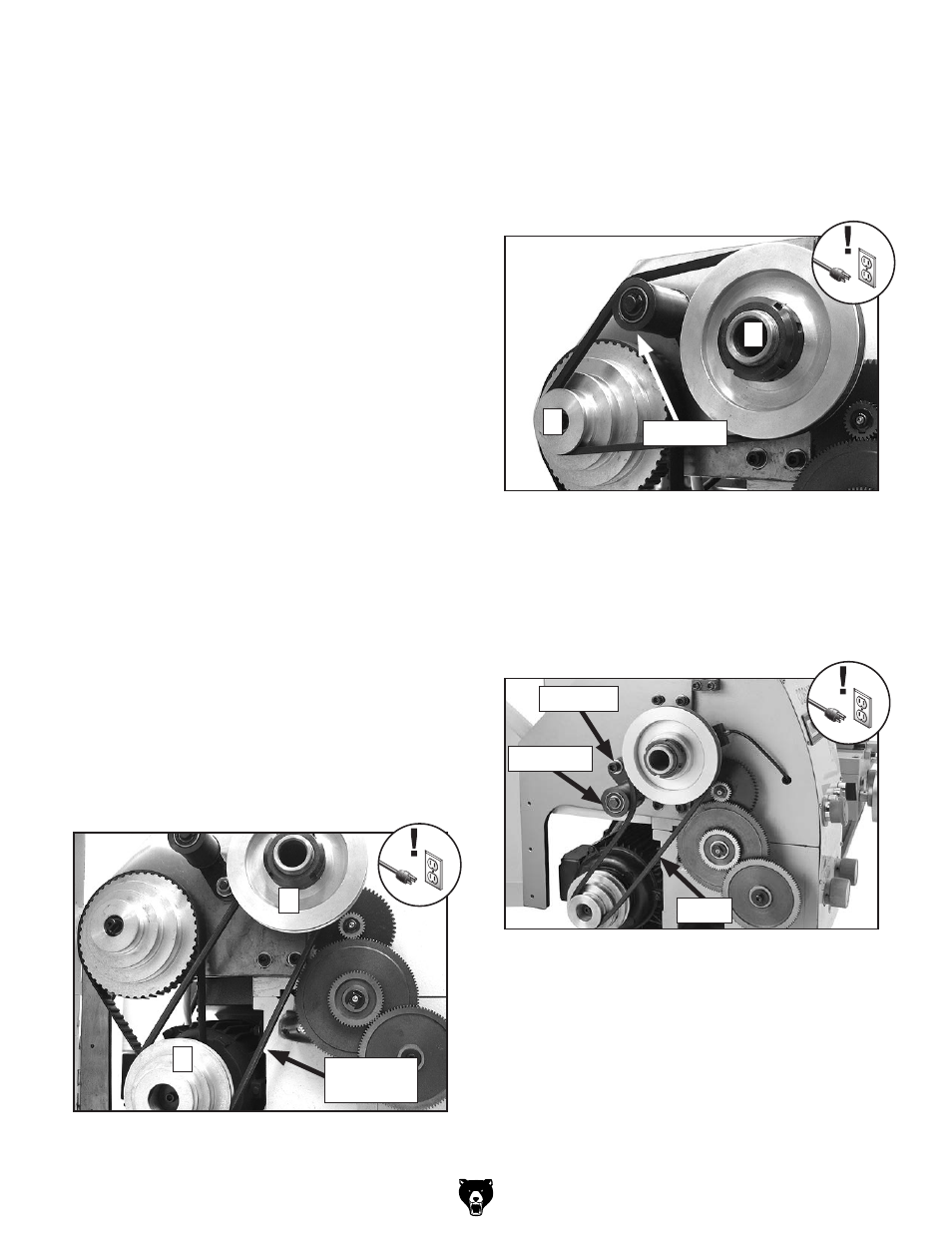

figure 97. Model g0602 low-range belt.
model g0752:
loosen the tensioner lock bolt, then pivot the
tensioner to the left and secure it temporarily.
remove the V-belt (see
figure 98) and re-install
the new one. Follow steps 4-5 on page 63 to ten-
sion the belt.
figure 98. Model g0752 V-Belt.
V-Belt
tensioner
C
B
to tension the model g0602 high range
v-belt:
1. Follow steps 1–3 in "tensioning timing Belt"
on page 65.
2. lower the motor and re-tighten the mounting
hex nuts. the high range V-belt is correctly
tensioned when there is approximately
1 ⁄
4
"
deflection when it is pushed with moderate
pressure, as shown in
figure 95 on page 63.
—if there is more than 1 ⁄
4
" deflection when
the V-belt is pushed with moderate pres-
sure, loosen the motor mount nuts, lower
the motor as needed, then tighten the nuts.
3. Check the timing belt tension (refer to step 5
of "tensioning timing Belt " on page 65).
4. secure the change gear cover.
replacing v-belt
1. disConneCt lAthe FroM poWer!
2. open the change gear cover.
3. model g0602:
—if the high range belt ( figure 96) needs to
be replaced, loosen the motor mount hex
nuts, (see
figure 99 on page 65), raise
the motor, and carefully roll the belt off of
pulleys
a and c. install a new V-belt, then
follow the steps in "to tension the Model
g0602 high range V-belt" above.
figure 96. Model g0602 high-range belt.
A
C
high
range Belt
—if the low range belt between pulleys b and
c (see figure 97) needs to be replaced,
loosen the tensioner lock nut (see
figure
93 on page 63), move the tensioner down,
roll the belt off the pulleys, then re-install
the new V-belt. Follow
steps 4-5 on page
63 to tension the belt.
lock Bolt
tensioner
