- 8 -

7VM333M-RZ Motherboard

English

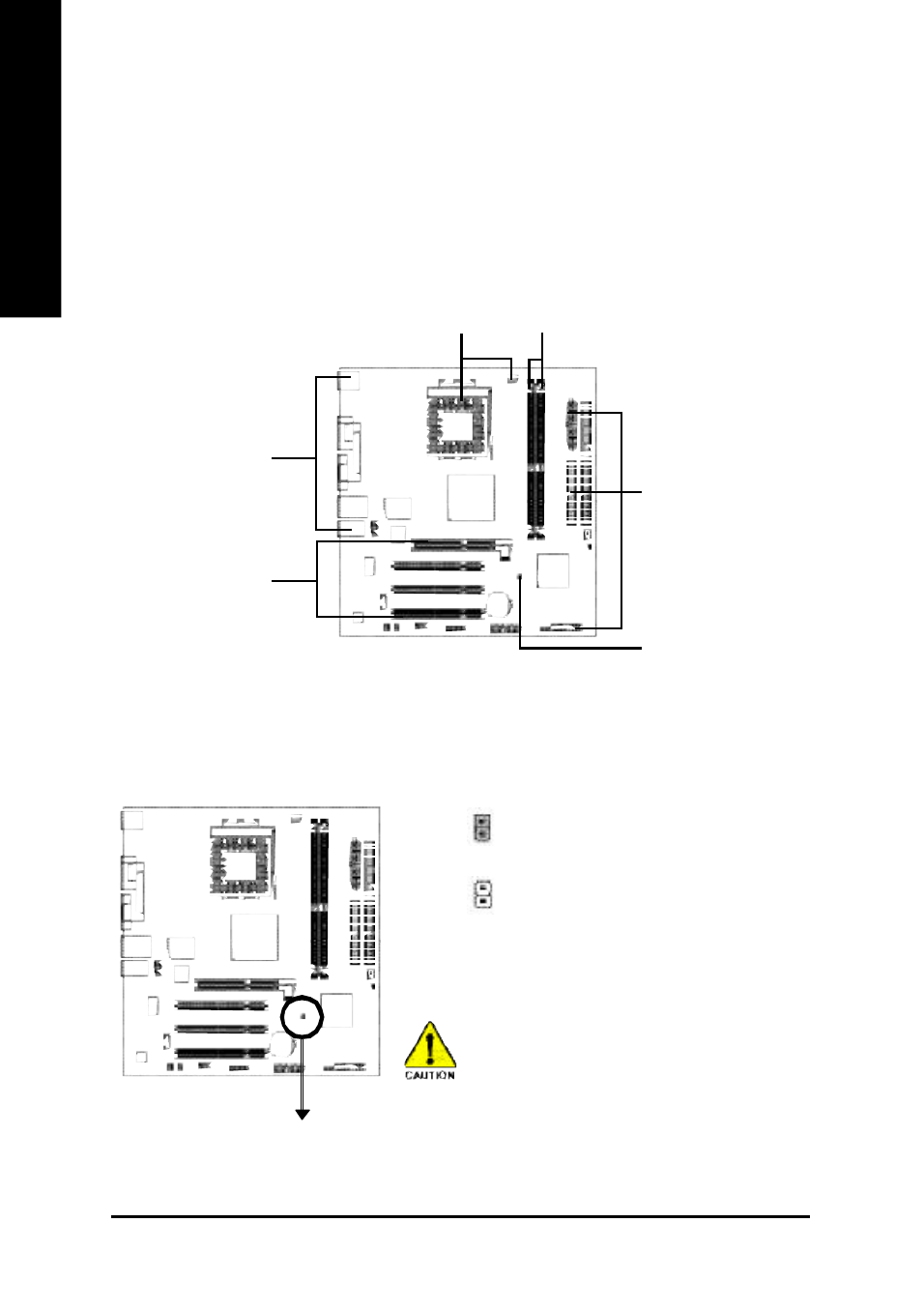

Hardware Installation Process

To set up your computer, you must complete the following steps:

Step 1- Set System Jumper (JP1)
Step 2- Install the Central Processing Unit (CPU)
Step 3- Install Memory Modules
Step 4- Install Expansion Cards
Step 5- Install I/O Peripherals Cables

Step 1: Set System Jumper (JP1)

The system bus frequency can be switched at 100/133/166MHz by adjusting system jumper (JP1).
(The internal frequency depend on CPU.)

JP1

Short: 100MHz

1

1

Open: 133/166MHz

Step 3

Step 2

Step 5

Step 5

Step 4

Step 1

100MHz : Fix FSB 200MHz CPU
133/166MHz : Supports FSB 266/333MHz CPU
If you want to use a CPU with 200MHz FSB, please

set JP1 to 100MHz.
