- 10 - 7VM333M-RZ Motherboard
English
Before installing the memory modules, adhere to the following warning:
1. Please note that the DIMM module can only fit in one direction due to the one notch. Wrong
orientation will cause improper installation. Please change the insert orientation.

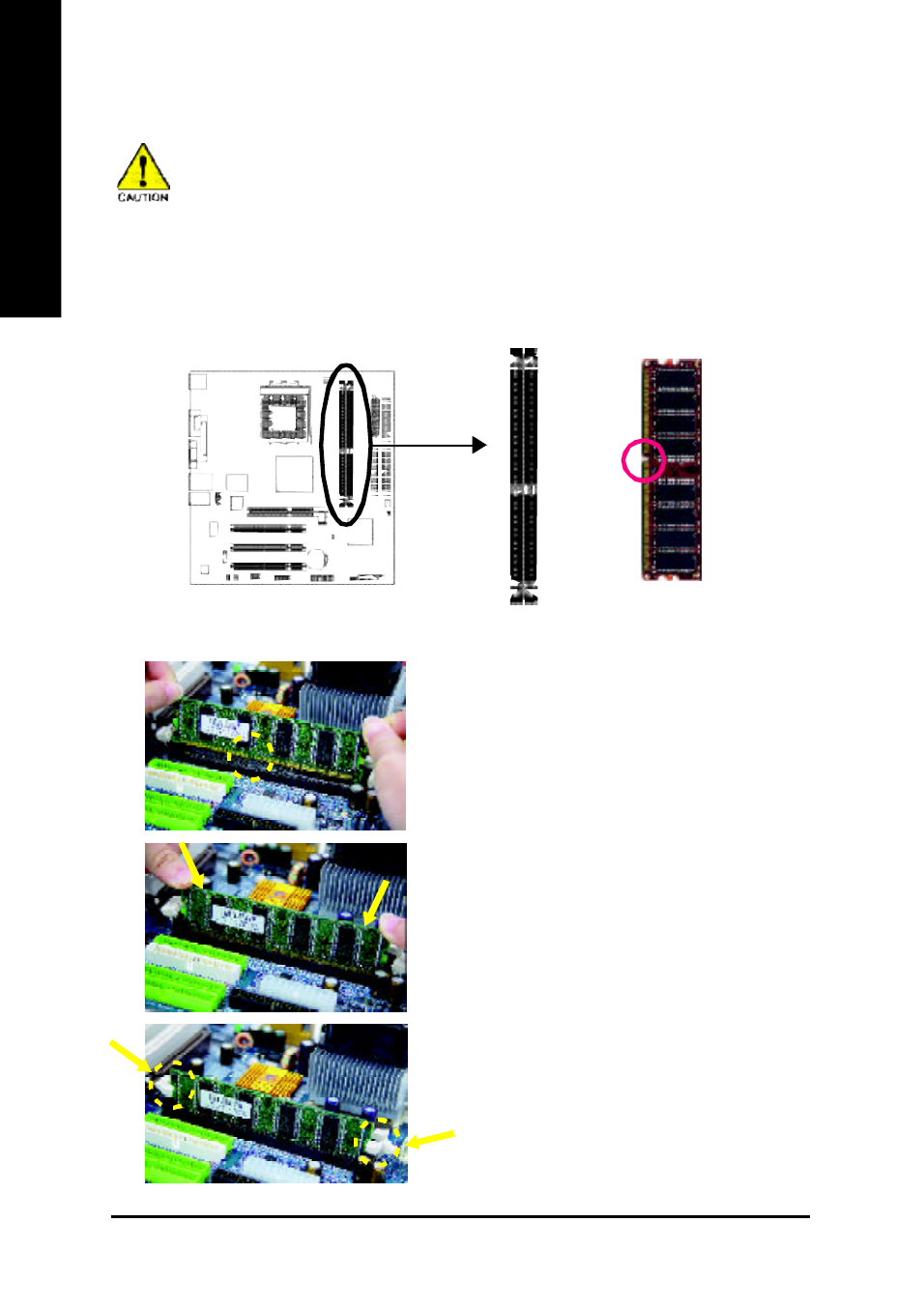

Step 3: Install Memory Modules
The m otherboard has 2 dual inline m emory module (DIMM) sockets. The BIOS will automatically detects
memory type and size. To install the memory module, just push it vertically into the DIMM socket. The DIMM
module can only fit in one direction due to the notch. Memory size can vary between sockets.
DDR
Notch
1. The DIMM socket has a notch, so the DIMM memory
module can only fit in one direction.
2. Insert the DIMM memory module vertically into the
DIMM socket. Then push it down.
3. Close the plastic clip at both edges of the DIMM
sockets to lock the DIMM module.
Reverse the installation steps when you wish to re-
move the DIMM module.
