- 17 -
Hardware Installation Process
English

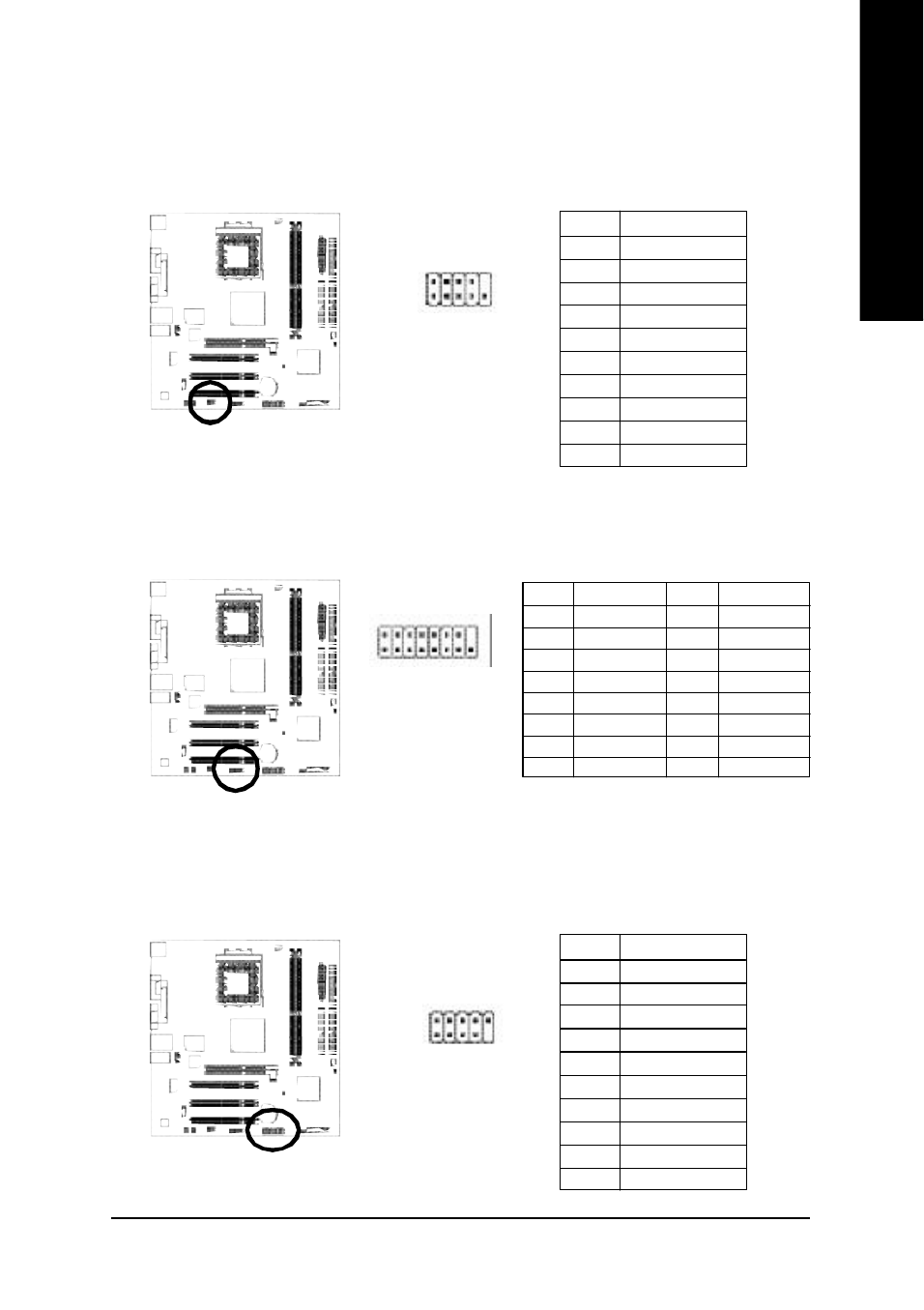

12) COMB (COM B Connector)
Be careful with the polarity of the COMB connector. Check the pin assignm ent carefully while you
connect the COMB cable, incorrect connection between the cable and connector will make the device
unable to work or even damage it. For optional COMB cable, please contact your local dealer.
13) GAME (Game Connector)
This connector supports joystick, MIDI keyboard and other relate audio devices. Check the pin assign-
ment while you connect the game cables. Please contact your nearest dealer for optional game cables.
Pin No.
Definition
1
NDCDB-
2
NSINB
3
NSOUTB
4
NDTRB-
5
GND
6
NDSRB-
7
NRTSB-
8
NCTSB-
9
NRIB-
10
No Pin
1
9
2
1 0
1
1 5
2
1 6
Pin No. Definition
1
VCC
2
GRX1_R
3
GND
4
GPSA2
5
VCC
6
GRX2_R
7
GRY2_R
8
MSI_R
Pin No. Definition
9
GPSA1
10
GND
11
GRY1_R
12
VCC
13
GPSB1
14
MSO_R
15
GPSB2
16
No Pin
14) F_USB1 / F_USB2 (Front USB Connector)
Be careful with the polarity of the front USB connector. Check the pin assignment carefully while you
connect the front USB cable, incorrect connection between the cable and connector will make the de-
vice unable to work or even dam age it. For optional front USB cable, please contact your local dealer.
Pin No.
Definition
1
Power
2
Power
3
USB Dx-
4
USB Dy-
5
USB Dx+
6
USB Dy+
7
GND
8
GND
9
No Pin
10
NC
1
9
2
1 0
