Operating Gun
8 309523D

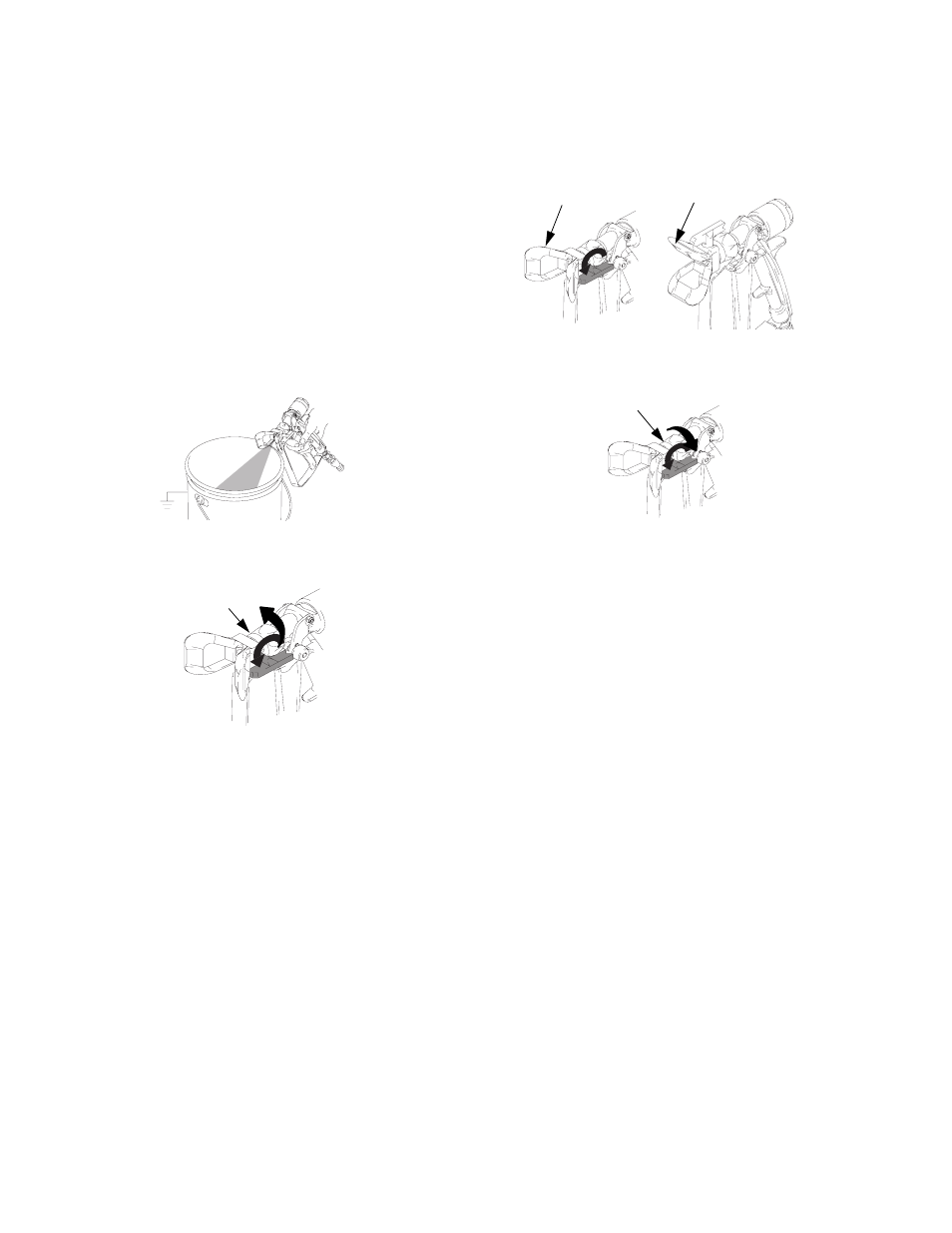

Adjusting Spray Pattern
Spray Pattern Size
The spray tip orifice and spray angle determine pattern
coverage and size. When you need more coverage, use
a larger spray tip rather than increasing fluid pressure.
Spray Pattern Direction
1.
Follow Pressure Relief Procedure, page 6.
Engage trigger lock.
2.
Loosen tip guard retaining nut (C).
TI1951A
C
3.
For a vertical pattern, turn tip guard to position E.
For a horizontal pattern turn to position D.
4.
Tighten nut (C).
TI1951A
E
D
TI1951A
C
