-18- G5787 Meatcutting Bandsaw
SECTION 5: ADJUSTMENTS
Keep loose clothing
rolled up and out of the
way of machinery and
keep hair pulled back.
Wear safety glasses dur-
ing the entire adjustment
process. Failure to com-
ply may result in serious
personal injury.
Disconnect power to the
machine when perform-
ing any adjustments or
maintenance. Failure to
do this may result in seri-
ous personal injury.

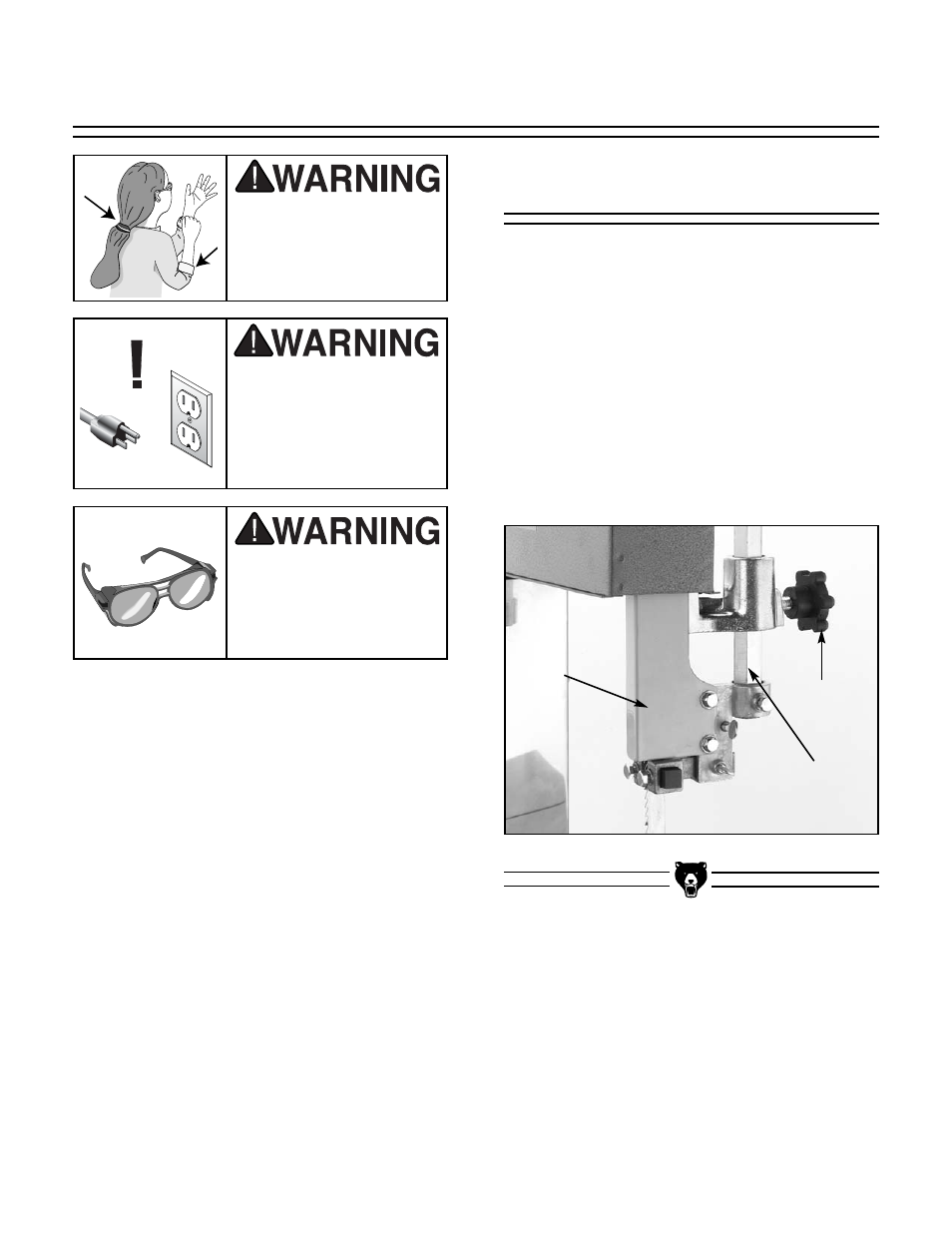

Figure 28. Blade guard.
Blade Guard
Figure 28 shows the blade guard controls. The
blade guard protects the operator from accidental
contact with the part of the blade that is not being
used.
The star knob on the guide rail allows you to raise
and lower the blade guard and blade guide
assembly. Keep the blade guide assembly within
an inch of the material you are cutting. This will
provide adequate support for the blade where the
pressure is greatest.
This adjustment is crucial
when cutting through bone!
Star Knob
Blade Guard
Guide Rail
