Grizzly G5787 User Manual
Page 12
G5787 Meatcutting Bandsaw
-11-
4.

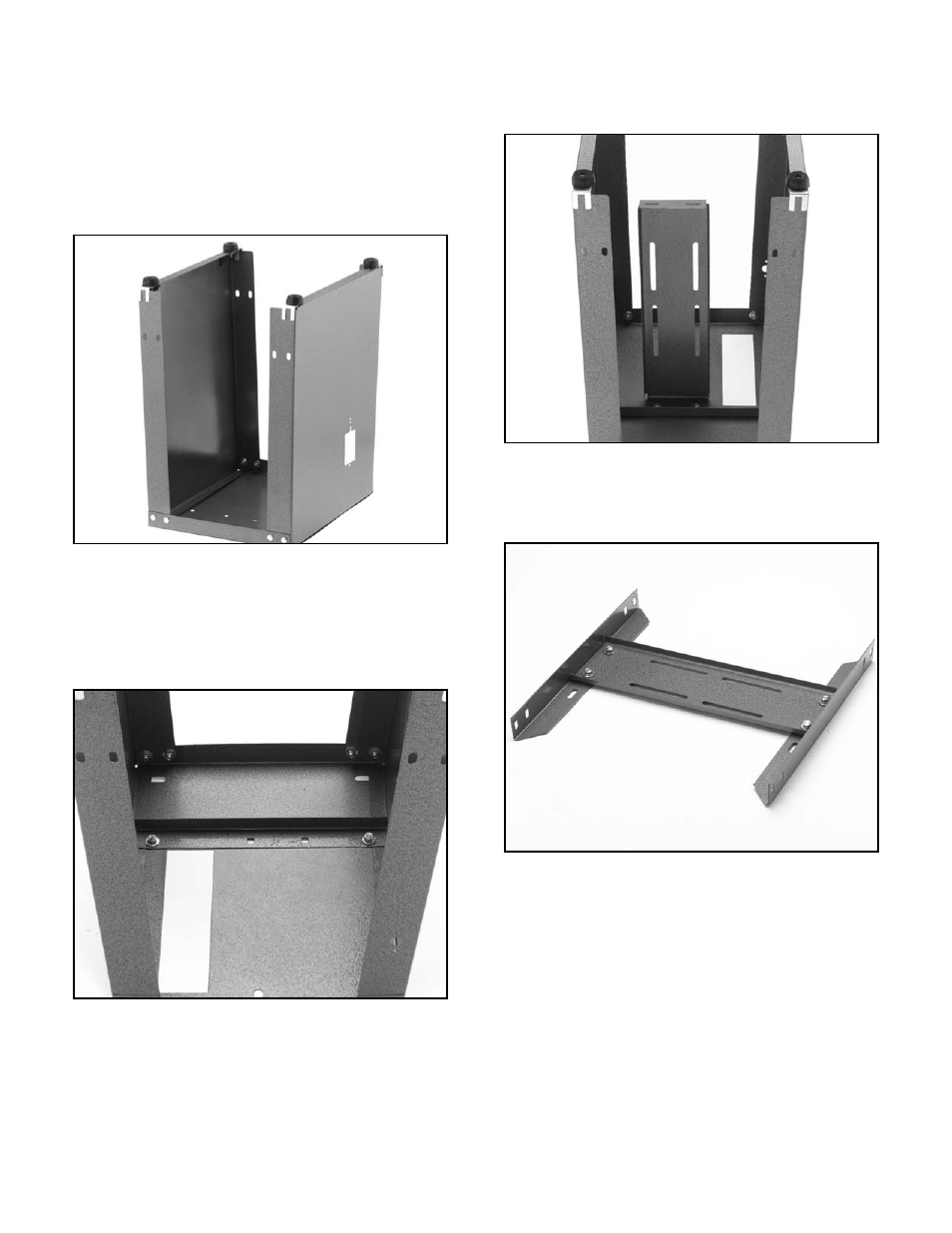

Attach the top brace on the underside of the
stand sides as shown in
Figure 8.
This brace
secures the center of the stand top to the
stand sides.
Figure 8.
Top brace to stand top.
Figure 7.
Stand sides attached to stand top.
6.
Attach the mounting plate to the two side
braces as shown in
Figure 10
.
Figure 10.
Mounting plate to side braces.
Figure 9.
Motor mount attached to top.
5.
Attach the motor mount to the top brace and
stand top as shown in
Figure 9
.
3.
Attach the stand sides to the stand top as
shown in
Figure 7
. Make sure the side of the
stand with the switch cutout is on the same
side as the V-belt cutout on the top piece.
This will ensure that the switch is in front of
the bandsaw. Do not completely tighten the
carriage bolt nuts at this time.
