-14- G5787 Meatcutting Bandsaw

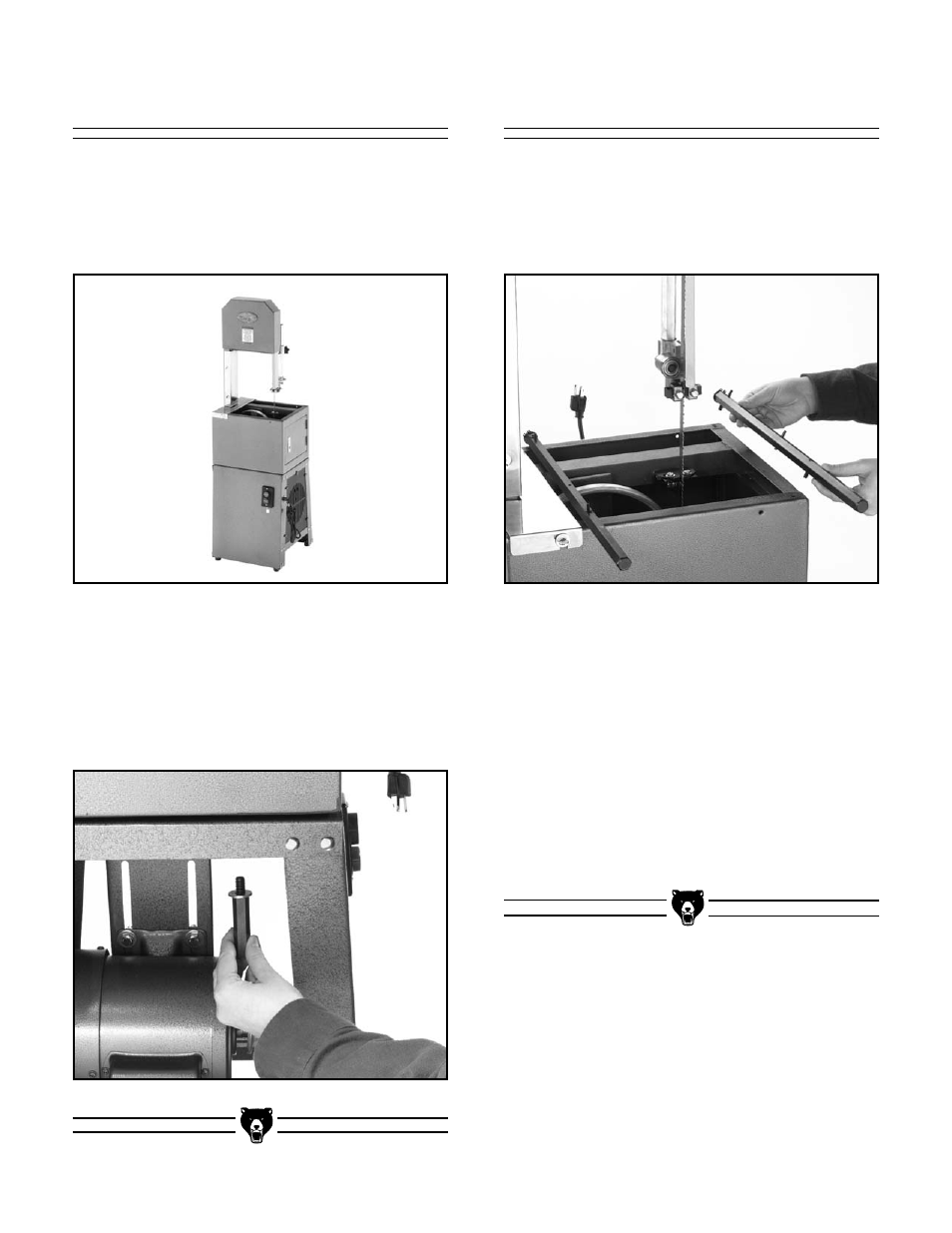

Figure 18. Rails onto bandsaw unit.
To install the sliding rails:
1. Roll pins should already be in the rails. Line
these up to their respective holes in the
bandsaw unit as shown in
Figure 18 .
2. Fit the roll pins inside the holes. If they will
not fit, roll the rail over and try the other side.
Because the roll pins are slightly flared, they
will often only fit on one side.
3. Tap the roll pins down into the holes with a
hammer so they are flush with the top sur-
face of the rail.
4. Place the 1 ⁄
2
"-12 x 3 ⁄
4
" cap screws into the
rails and fasten the 1 ⁄
2
" hex nuts with wash-
ers underneath so that the rails are secured
to the bandsaw unit.
Sliding Rails
Figure 16. Bandsaw unit onto stand.
Figure 17. Installing hexagonal shaft.
To install the bandsaw unit onto the stand:
1. Place the bandsaw unit onto the stand as
shown in
Figure 16 . Get help so you do not
strain yourself.
2. Line up the holes on the stand with the holes
on the bottom of the bandsaw unit.
3. Fasten the stand to the bandsaw unit with
the hexagonal shaft and
1 ⁄
2
" washer as
shown in Figure 17 .
Bandsaw Unit
