Grizzly G5787 - Manual (Page 13)

-12- G5787 Meatcutting Bandsaw

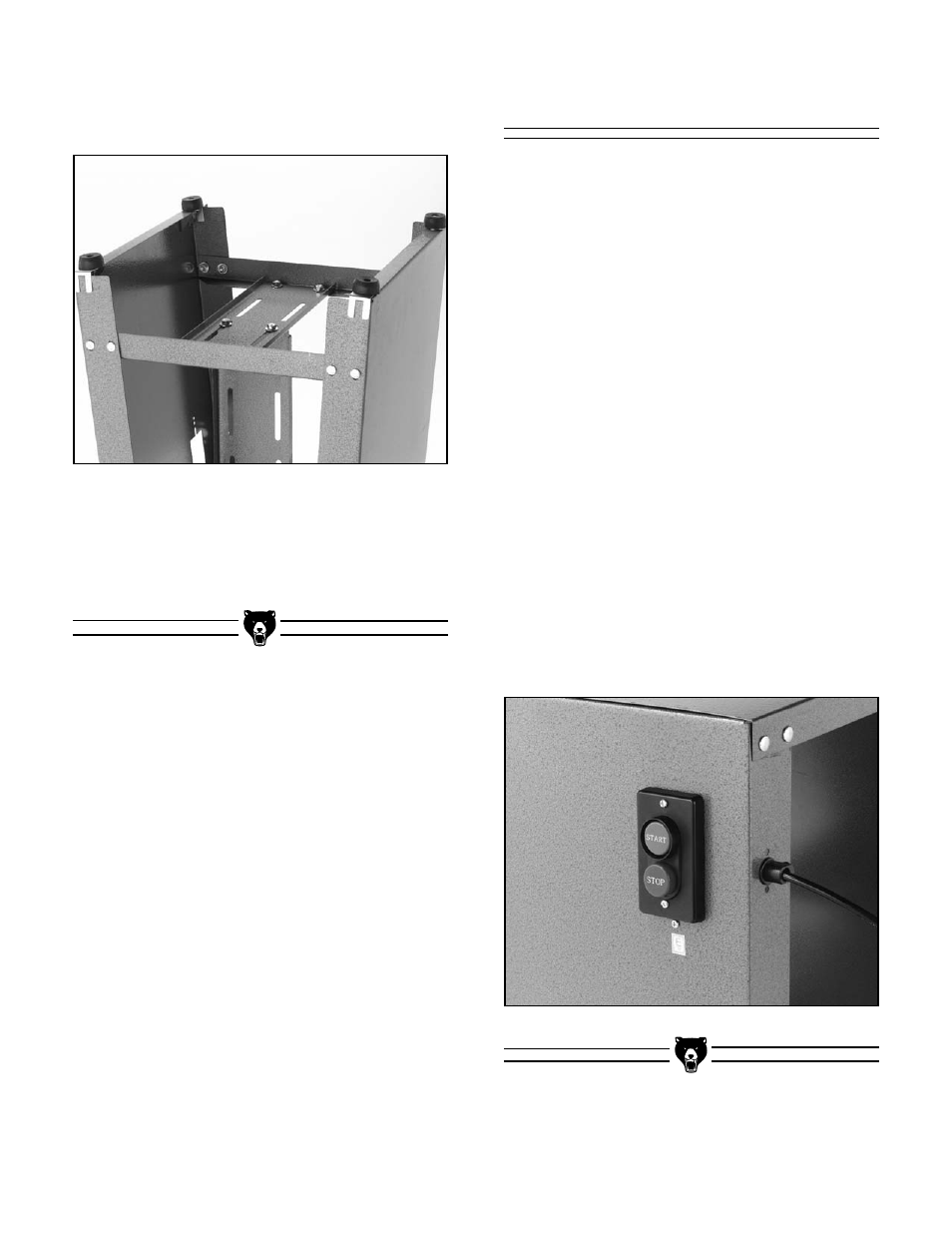

Figure 12. Switch & cord installed on stand.
Switch
Mount the switch on the stand side with the (2)
10-24 x 1" Phillips
® screws, 10-24 nuts, and star
washers. Only tighten the nuts on the screws
enough so that removal will be easy during
wiring.
Cord
1.
Place the strain relief into the hole on the
stand side. Thread the plastic nut onto the
back side of the strain relief and tighten as
necessary.
2. Make sure the plastic setscrew is withdrawn
enough to allow the cord to come through
the strain relief, then push the end of the
cord with the wires through the strain relief.
3. Allow enough room for the red and black
wires to reach the switch and the green wire
to reach the ground (hole below the switch).
4. Tighten the plastic setscrew to secure the
cord in place. Mount the switch and cord to
the stand side as shown in
Figure 12 .
Switch & Cord
Figure 11. Bottom support/side brace assembly
attached to sides.
8. Turn the stand over and center the stand top
on the stand sides. Tighten the remaining
loose nuts.
7. Fit the mounting plate/side brace assembly
into the stand and attach it as shown in
Figure 11 .
