Enclosure – Guardian Technologies C2369 User Manual
Page 16
Generac
®
Power Systems, Inc.
39
ITEM
PART NO. QTY. DESCRIPTION
1
A9962
1
PLATE, INTAKE
2
A9892
1
ENCLOSURE, ROOF
3
C1199
1
PANEL, ENCLOSURE-ALT
SIDE
4
A9677
1
RAIL, TOP SUPPORT
5
A9633
1
ENCLOSURE, DOOR
6
A9651
1
MUFFLER
7
A9897
1
SUPPORT, BRACKET
MUFFLER
8
A9629
1
SIDE AND BACK ENCLOSURE
9
A9631
1
BOX, MUFFLER
10
A9632
1
COVER, EXHAUST BOX
11
78115
15
SELF LOCKING DOME WASHER
12
A9816
1
FLEX-EXHAUST PIPE
13
C1023
2
DOOR LATCH
14
A2110
5
¼-20 x ½" SWAGE FASTENER
15
26915
1
¾" NPT CLOSE NIPPLE
16
A2666
1
FUEL SOLENOID
17
22473
26
M6 FLAT WASHER
18
22097
15
M6 LOCK WASHER
19
49813
15
M6 -1.0 NUT
20
C2866
1
EXHAUST CLAMP-1.25"
21
57822
1
CLAMP #8
ITEM
PART NO. QTY. DESCRIPTION
22
79246
6
M6- 1.0 x 16 HEX HD. & LOCK
WASHER
23
29745
2
3/8"-16 x 1" HEX HEAD
24
22145
5
M8 FLAT WASHER
25
22129
5
M8 LOCK WASHER
26
22241
2
3/8"- 16 HEX NUT
27
C2310
1
GASKET, SET-MUFFLER BOX
28
A2393
3
M6 1.0 x 16 FLAT SOCKET HD.
CAPSCR.
29
A9961
1
BATTERY TRAY
30
A9963
1
BATTERY TRAY SUPPORT
31
A9964
1
ANGLED BATTERY TRAY
SUPPORT
32
56893
5
CRIMPTITE-10-24 x ½
33
22259
5
5/16"- 18 HEX NUT
34
C2206
1
BARBED FITTING
35
C2506A
2
MESH, DOOR PANEL
36
C2506B
1
MESH, EXHAUST BOX
37
C2506C
1
MESH, EXHAUST OUTLET
38
22131
4
3/8" FLAT WASHER
39
22237
2
3/8" LOCK WASHER
40
C2502
1
BARRIER FOAM

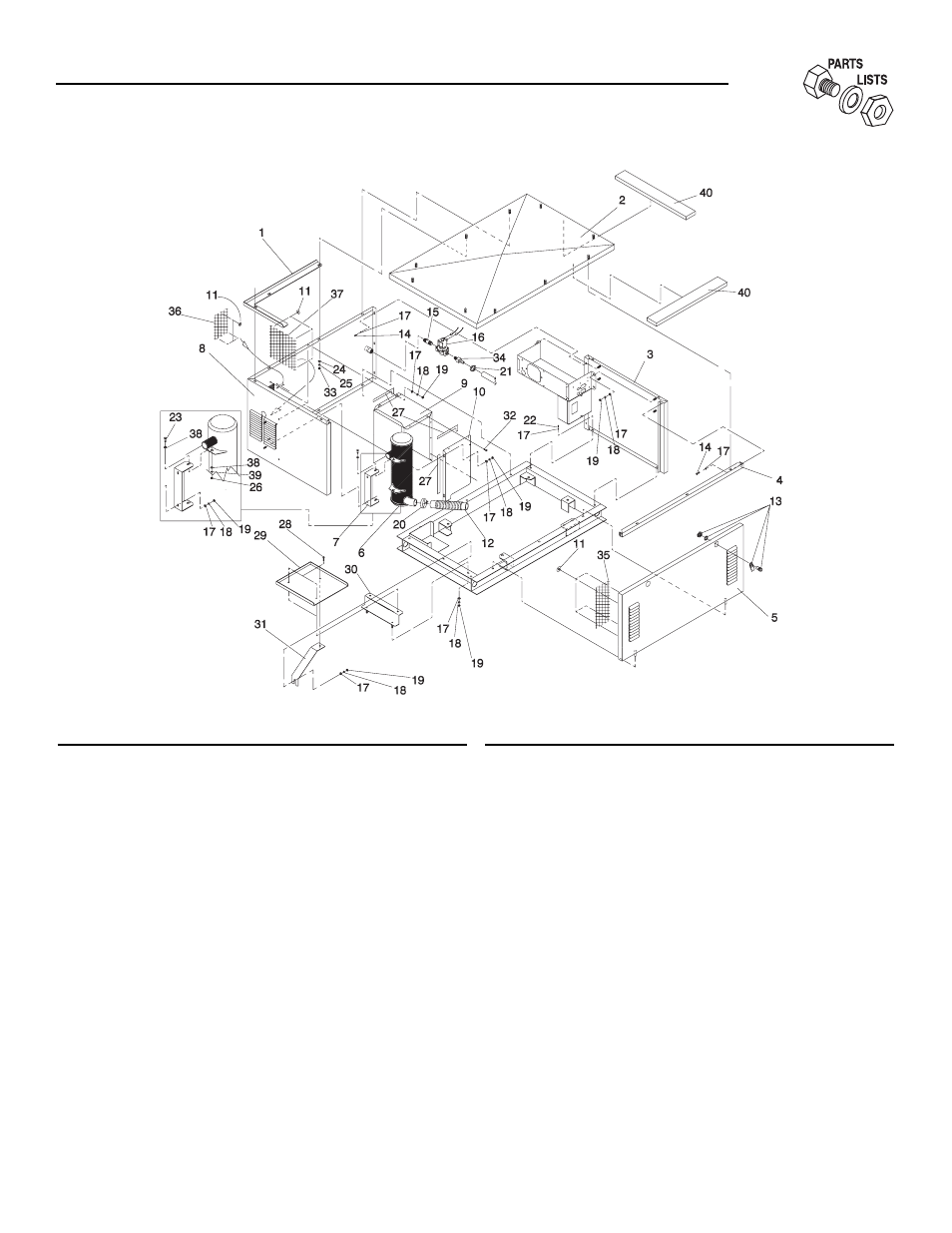

Section 7 — Exploded Views and Parts Lists
Guardian Air-cooled 6 kW, 8 kW and 10 kW Generators
Enclosure – Drawing No. C2370-
