ITEM
PART NO. QTY. DESCRIPTION
1
C2079
1
6/8KW LOWER BEARING
CARRIER
A9226
1
10KW LOWER BEARING
CARRIER
2
31971
1
BEARING
3
A5649H
1
6KW ROTOR ASSEMBLY
73163H
1
8KW ROTOR ASSEMBLY
A9064
1
10KW ROTOR ASSEMBLY
4
73159
1
BEARING
5
C1854H
1
6KW STATOR ASSEMBLY
C1855H
1
8KW STATOR ASSEMBLY
C1856
1
10KW STATOR ASSEMBLY
6
72379B
1
6/8KW UPPER BEARING
CARRIER
A9227
1
10KW UPPER BEARING
CARRIER
7
77006
4
8/10 KW STATOR BOLT
A6529
4
6 KW STATOR BOLT
8
73146
4
6/8KW NYLON SLIDES
A9918
4
10KW NYLON SLIDES
ITEM
PART NO. QTY. DESCRIPTION
9
C1878
2
6/8KW SLIDE SUPPORT
A9202
2
10KW SLIDE SUPPORT
10
75242
4
ALTERNATOR MOUNTING
SPRING
11
75237
4
SPRING CENTERING WASHER
12
52858
10
FLANGED LOCKING NUT
13
75215
2
SPRING CENTERING WASHER
14
29459
2
BELT TENSIONING SPRING
15
C2375
2
M8 x 90 HEX HD. SET SCREW
(6/8KW)
51730
2
M8 x 60 HEX HD. SET SCREW
(10KW)
16
45771
4
M8 NUT
17
27756
4
NYLON WASHER
18
66849
2
M5 x 15MM SCREW
19
66386
1
BRUSH HOLDER ASSEMBLY
20
C2094
1
6/8KW ALTERNATOR COVER
C1696
1
10KW ALTERNATOR COVER
21
22145
2
M8 FLAT WASHER
36 Generac
®
Power Systems, Inc.
Section 7 — Exploded Views and Parts Lists
Guardian Air-cooled 6 kW, 8 kW and 10 kW Generators

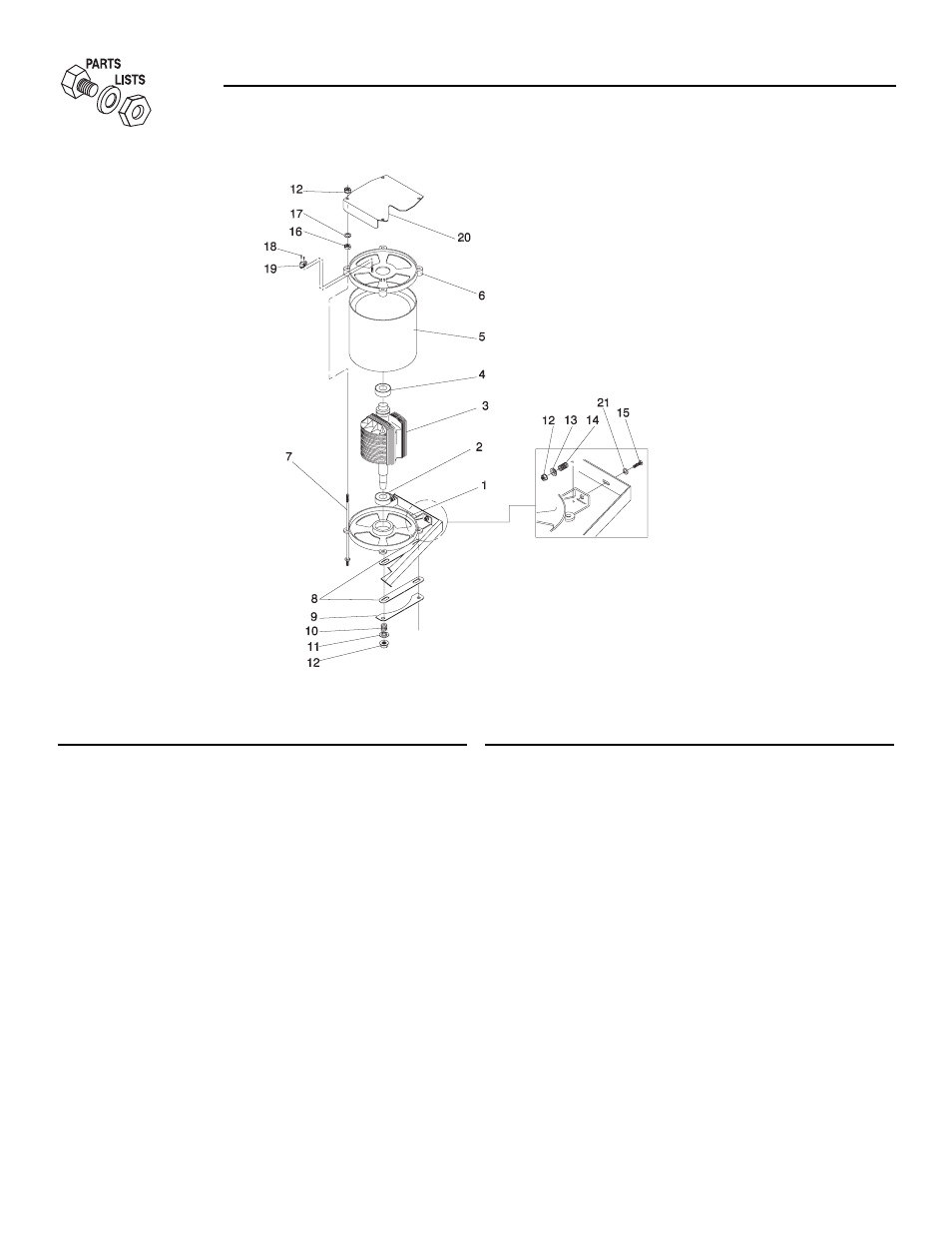

Alternator – Drawing No. C2374-
