ITEM PART NO. QTY. DESCRIPTION
1 C1753 1 ALTERNATOR PULLEY
2 A9628 1 ASSEMBLY, ENCLOSURE
BASE
3 C1112 1 V-BELT
4 75224D 1 ENGINE PULLEY
5 38353 4 RUBBER MOUNT
6 A9593 1 EXHAUST DUCT ASSEMBLY
7 A9827 1 BLOWER HOUSING
8 C1441 1 GASKET SET, BLOWER
HOUSING
9 22473 5 M6 FLAT WASHER
10 22097 2 M6 LOCK WASHER
11 22287 2 ¼-20 x ¾" HEX HEAD
12 C2824 7 TAP-R 10-32 x 9/16"
13 26307 1 90DEG. STREET ELBOW-3/4"
14 C2206 1 BARBED HOSE FITTING
15 74994 2FT. ½" I.D. HOSE
16 57822 2 HOSE CLAMP #8
17 63463 1 BARBED HOSE FITTING
18 C1616 1 8/10 KW LOAD BLOCK
C1616B 1 6 KW LOAD BLOCK
19 75211 1 GAS REGULATOR
20 C2131 1 GASKET SET, AIR DUCT
ITEM PART NO. QTY. DESCRIPTION
21 C1751 1 ALTERNATOR FAN MODEL-
04077, 04109 (7”)
C1752 1 ALTERNATOR FAN MODEL-
04079 (8”)
22 22131 5 3/8" FLAT WASHER
23 22237 4 3/8" LOCK WASHER
24 23152 4 3/8"-16 x ¾" HEX HEAD BOLT
25 22241 1 3/8-16 NUT
26 22145 3 5/16 FLAT WASHER
27 22129 3 5/16 LOCK WASHER
28 55173 3 M8-1.25 x 20 HEX HEAD
29 79246 3 M6-1.0 x 16 HEX HEAD WITH
LOCK WASHER
30 49451 1 7GA. x .41" x 1.62" FLAT
WASHER
31 22237 2 3/8" LOCK WASHER
32 42633 1 3/8"-24 x 1" HEX HEAD
33 73118 1 3/8"-24 x 2-1/4" HEX HEAD
34 C2417 1 GROUND STRAP
35 A4456 1 3/8" LOCK WASHER-SPECIAL
36 A1658 2 ¼" LOCK WASHER-SPECIAL
37 49813 1 M6-1.0 NUT
38 AB38805 1 CABLE, BLACK-BATTERY
39 A2311 1 ¼"-20 x 1" FASTENER
38 Generac ® Power Systems, Inc.
Section 7 — Exploded Views and Parts Lists
Guardian Air-cooled 6 kW, 8 kW and 10 kW Generators

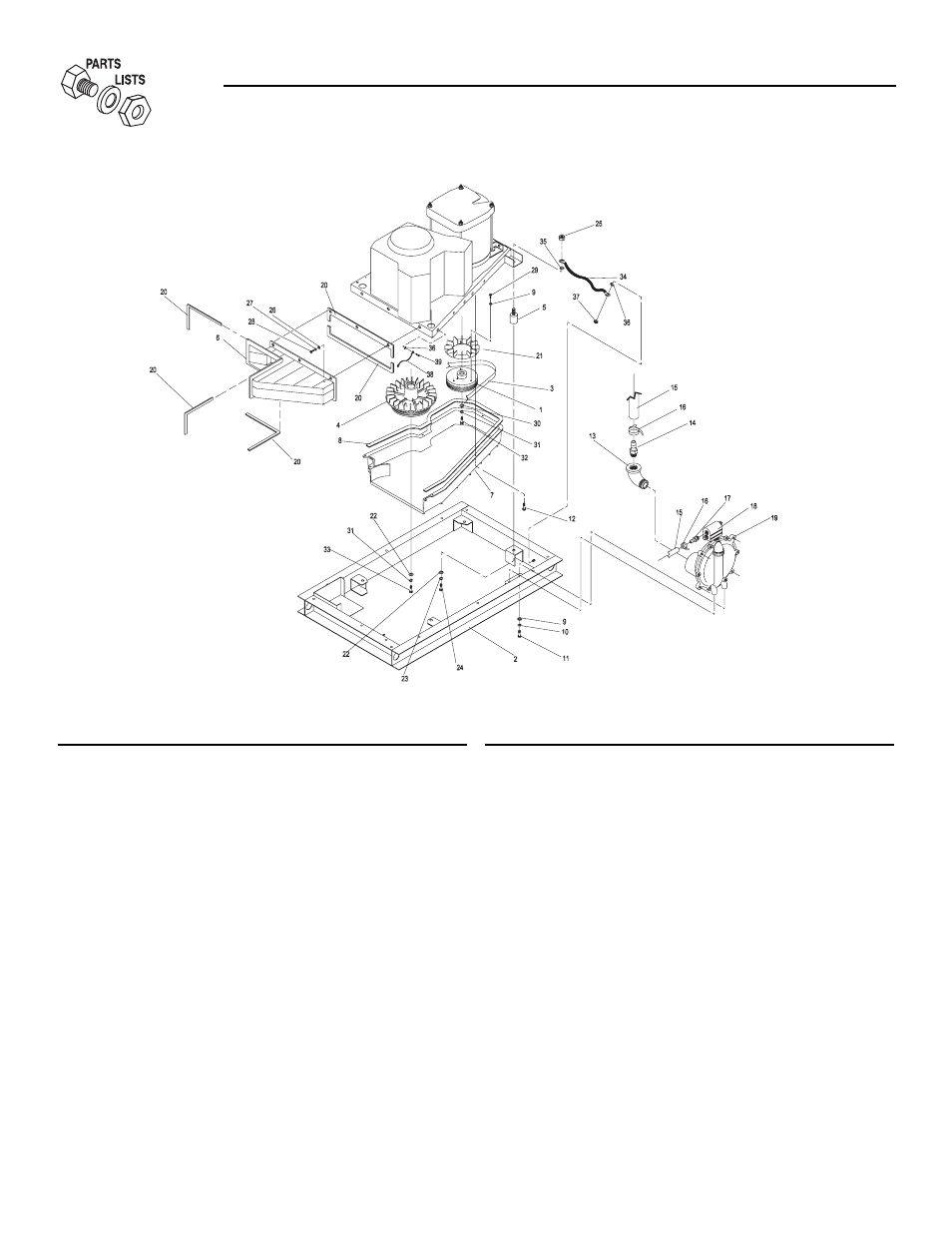

Mounting Base Assembly – Drawing No. C2372-
