Generac ® Power Systems, Inc. 37
ITEM PART NO. QTY. DESCRIPTION
1 C2259 1 TRANSFER SWITCH
ENCLOSURE
2 74975 1 ENCLOSURE COVER
3 C2237 1 TRANSFER SWITCH
4 74908 4 M5-0.8 x 10 TAPTITE
5 24912 1 ¼-20 x 5/8" TAPTITE
6 A1658 1 WASHER ¼ SHAKEPROOF
7 63617 1 RELAY-10AMP. 12 VOLTS DC
8 27628 1 HEX NUT-3/8"-16
9 24940 4 8-32 x ½" TAPTITE
10 A1661 2 POP RIVET, .156 D x .5
11 62684 1 LUG, GROUND
12 42568 4 M6- 1.0 x 20 HEX HEAD BOLT
13 22097 4 LOCK WASHER M6
14 57073 1 NEUTRAL LUG-JUNCTION
BLOCK
15 66849 2 M5-.8 x 16 TAPTITE
16 22152 6 LOCK WASHER NO. 10
ITEM PART NO. QTY. DESCRIPTION
17 64113 1 WING NUT, M6-1.0
18 77441 1 MANUAL TRANSFER HANDLE
19 22131 1 FLAT WASHER-3/8"
21 74138 4 MALE DISCONNECT ADAPTOR
22 36932 6 SCREW, PAN HEAD
NO. 10-32 x ¼"
23 77033 6 SOLDERLESS LUG
24 48850 1 TERMINAL BLOCK-5
POSITION
25 77052 2 MALE DISCONNECT ADAPTOR
26 22473 4 FLAT WASHER-M6
27 C2261 1 COVER
28 C2260 1 TRANSFER WIRE HARNESS
(NOT SHOWN FOR CLARITY)
29 73591 2 FUSE HOLDER
30 73590A 2 FUSE, 5A 600 VOLT
31 40213B 4 STAND-OFF
Section 7 — Exploded Views and Parts Lists
Guardian Air-cooled 6 kW, 8 kW and 10 kW Generators

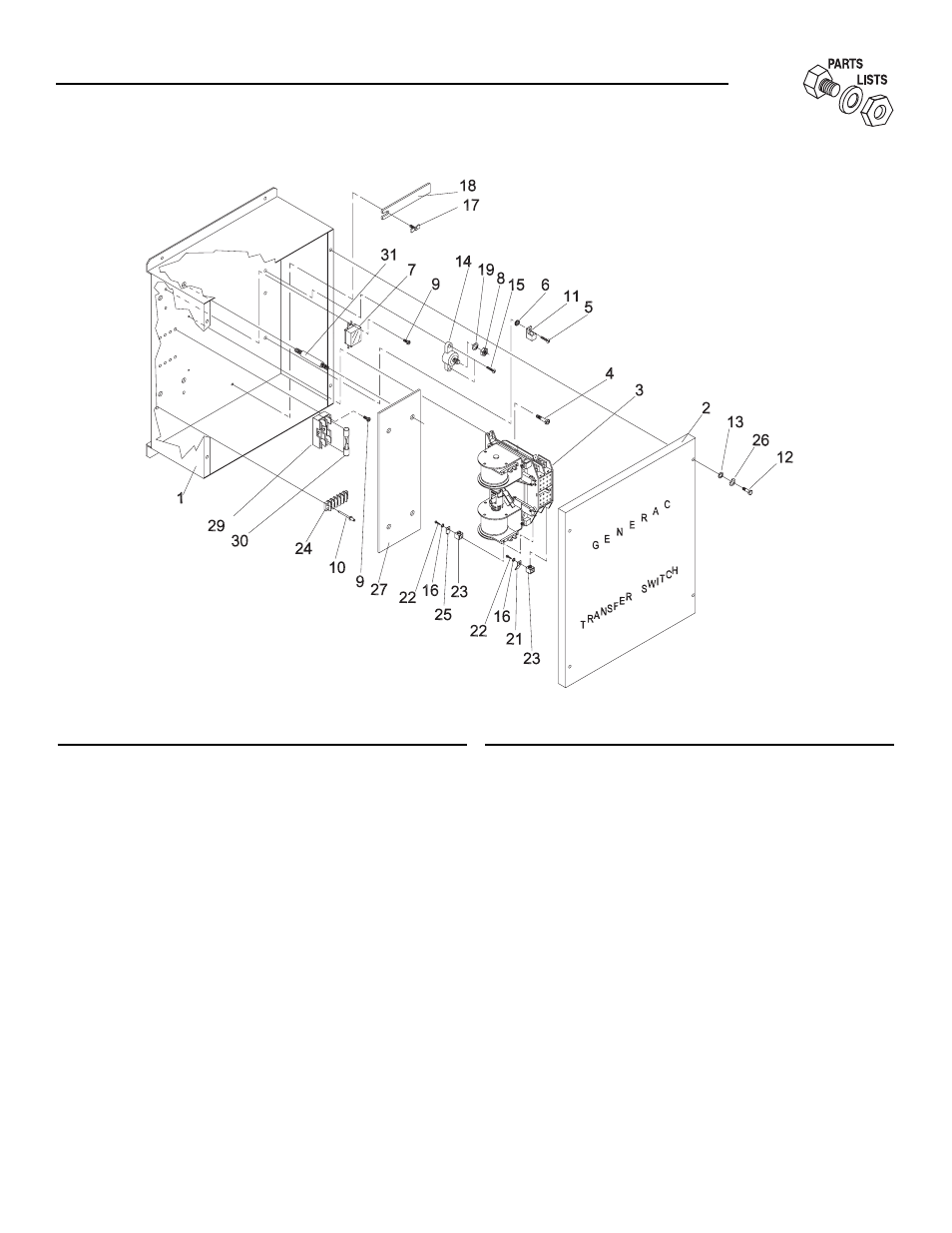

Transfer Switch – Drawing No. C2696-
