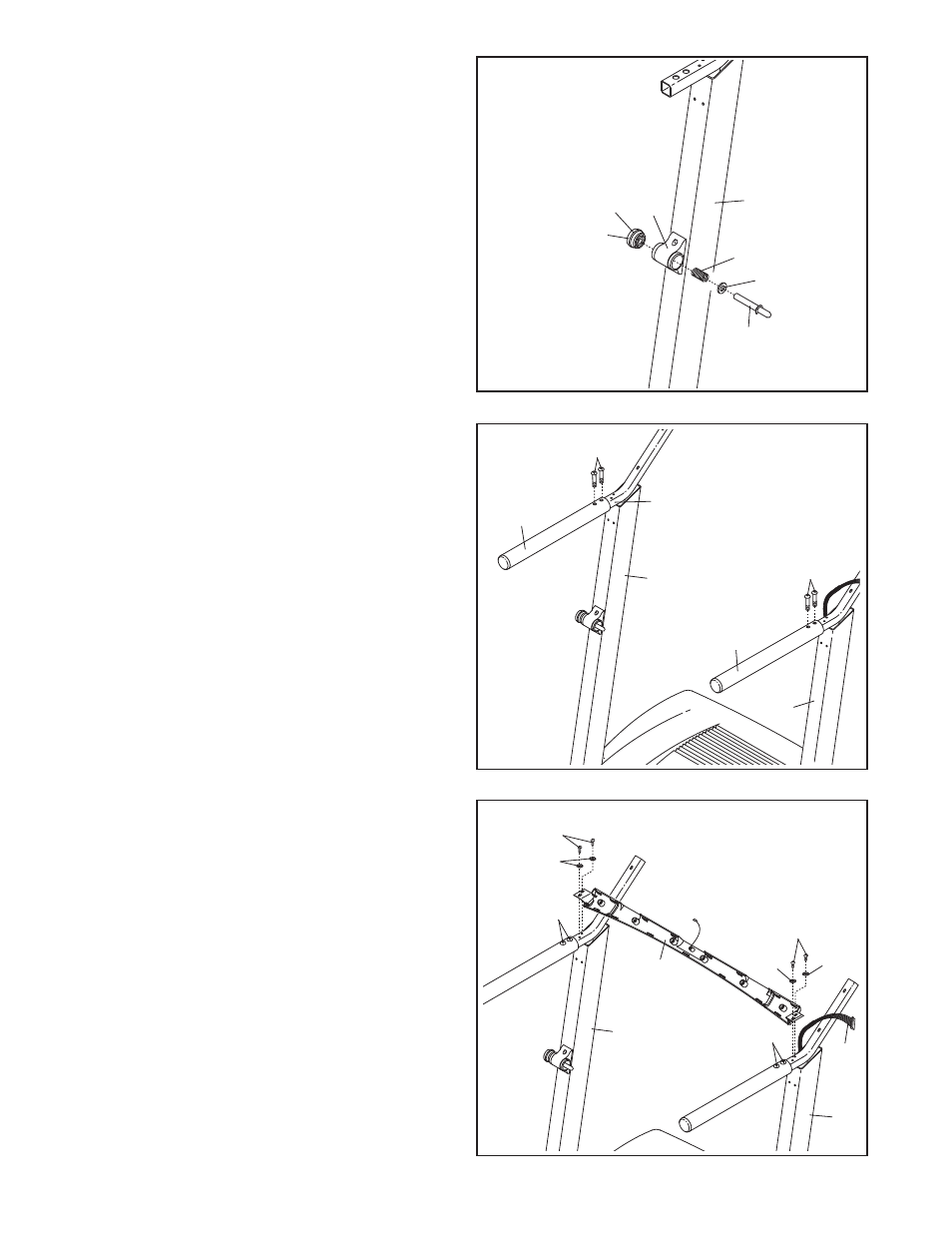

5. With the help of a second person, carefully raise
the Left Upright (70) and the Right Upright (not
shown) to a vertical position.
Locate the Latch Pin Assembly (73). Remove the
knob from the pin. Make sure that the collar and
the spring are on the pin. (Note: If there are two
collars, place one on each side of the spring.)
Then, insert the pin into the Latch Housing (71),
and tighten the knob onto the pin.
See steps 2 and 4. Fully tighten the two
Endcap Screws (79).
70
Pin
Collar
Spring
Knob
5
71
6. Slide a Handrail (62) onto the post on the Left
Upright (70). Partially tighten two 1 1/4" Bolts
(63) into the Handrail and the post; do not fully
tighten the Bolts yet.
Attach the other Handrail (62) to the Right
Upright (76) in the same way.
70
Post
62
62
63
63
76
6
7. Make sure that the Upright Wire (75) is posi-
tioned at the side of the post on the Right
Upright (76) as shown.
Set the Pulse Bar (66) on the Left and Right
Uprights (70, 76). Attach the Pulse Bar with four
Silver Pulse Bar Screws (64) and four Pulse Bar
Star Washers (65). Start all four Silver Pulse
Bar Screws before fully tightening any of
them.
Firmly tighten the four 1 1/4" Bolts (63).
70
64
65 65
64
65
63
76
66
63
7
75
73
