7

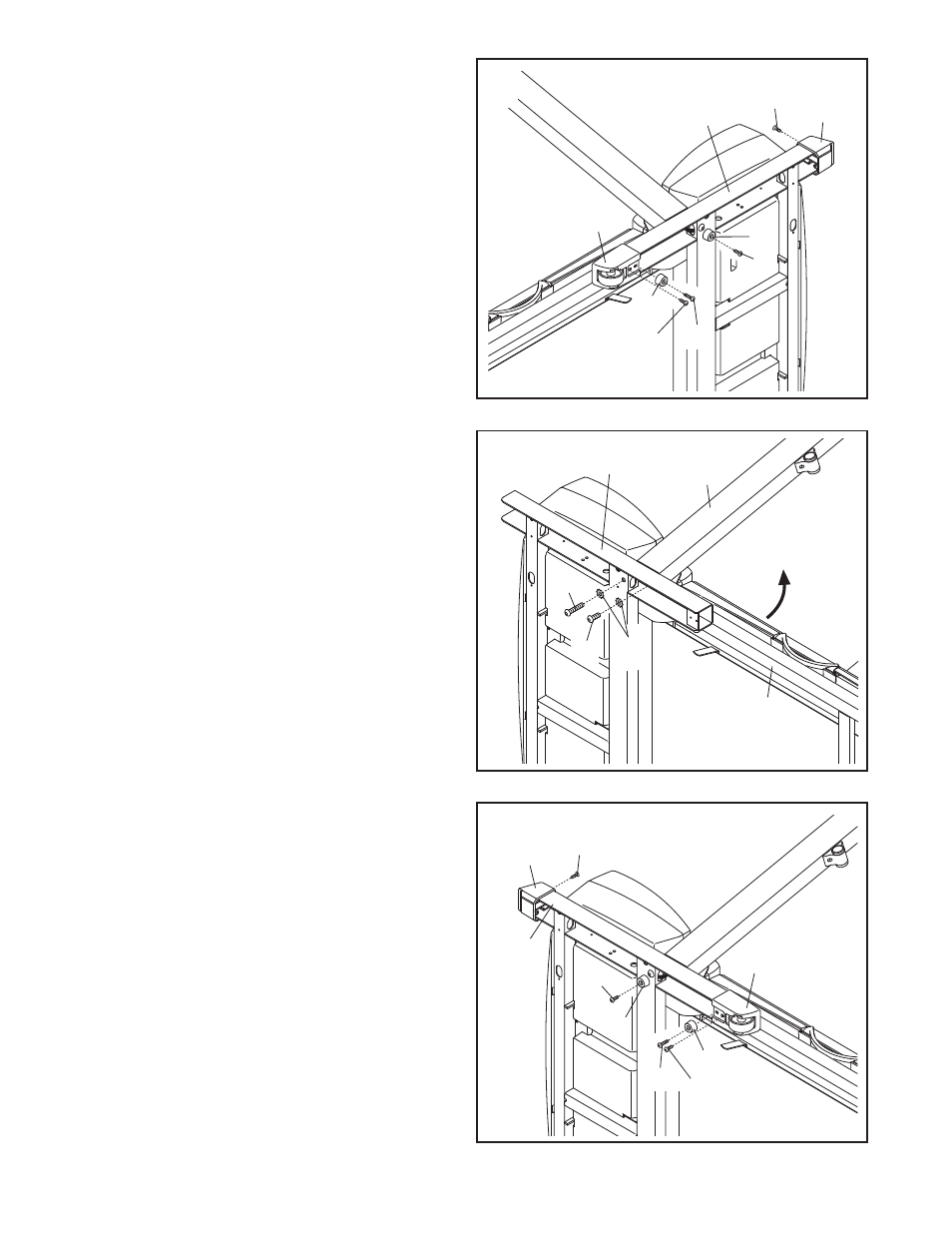

2. Slide a Front Endcap (80) onto the Base (81).
Partially tighten an Endcap Screw (79) into the
Front Endcap and the Base.
Slide a Wheel Housing (86) onto the Base (81).
Attach the Wheel Housing with a 1" Tek Screw
(77), a Base Pad (89), and a 1 1/4" Tek Screw
(49) as shown.
Attach an additional Base Pad (89) to the Base
(81) with a 1" Tek Screw (77).
89
89
86
79
77
81 80
2
3. With the help of a second person, carefully tip
the treadmill onto its right side as shown.
Partially fold the Frame (26) so the treadmill is
more stable. Do not fully fold the Frame until
the treadmill is completely assembled.
Hold the Left Upright (70) against the Base (81).
Then, thread a 2 3/4" Upright Bolt (85) and a 1"
Upright Bolt (84) with two 3/8" Star Washers (83)
into the Base (81) and the bottom of the Left
Upright; do not fully tighten the Upright Bolts
yet.
26
85
70
81
83
3
4. Slide a Front Endcap (80) onto the Base (81).
Partially tighten an Endcap Screw (79) into the
Front Endcap and the Base.
Slide a Wheel Housing (86) onto the Base (81).
Attach the Wheel Housing with a 1" Tek Screw
(77), a Base Pad (89), and a 1 1/4" Tek Screw
(49) as shown.
Attach an additional Base Pad (89) to the Base
(81) with a 1" Tek Screw (77).
86
77
80
79
89
89
4
77
84
49 77
81
49
