1. Make sure that the power cord is unplugged.
With the help of a second person, carefully tip
the treadmill onto its left side as shown. Partially
fold the Frame (26) so that the treadmill is more
stable. Do not fully fold the Frame until the
treadmill is completely assembled.
Identify the Right Upright (76), which has a
RIGHT sticker. Hold the Right Upright near the
Base (81). Insert the Upright Wire (75) into the
Right Upright until the Upright Wire is extending
from the upper end of the Right Upright. See the
inset drawing. Make sure that the Upright Wire
is extending from the side of the post as shown.
Remove the tie from the Upright Wire.
Attach the Right Upright (76) to the Base (81)
with a 2 3/4" Upright Bolt (85), a 1" Upright Bolt
(84), and two 3/8" Star Washers (83); do not
fully tighten the Upright Bolts yet.
6
ASSEMBLY
To hire an authorized service technician to assemble the treadmill, call toll-free 1-800-445-2480.
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking
belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to
the top of the walking belt or the shipping carton. This is a normal condition. If there is lubricant on top of the
walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included hex key and your own Phillips screwdriver .

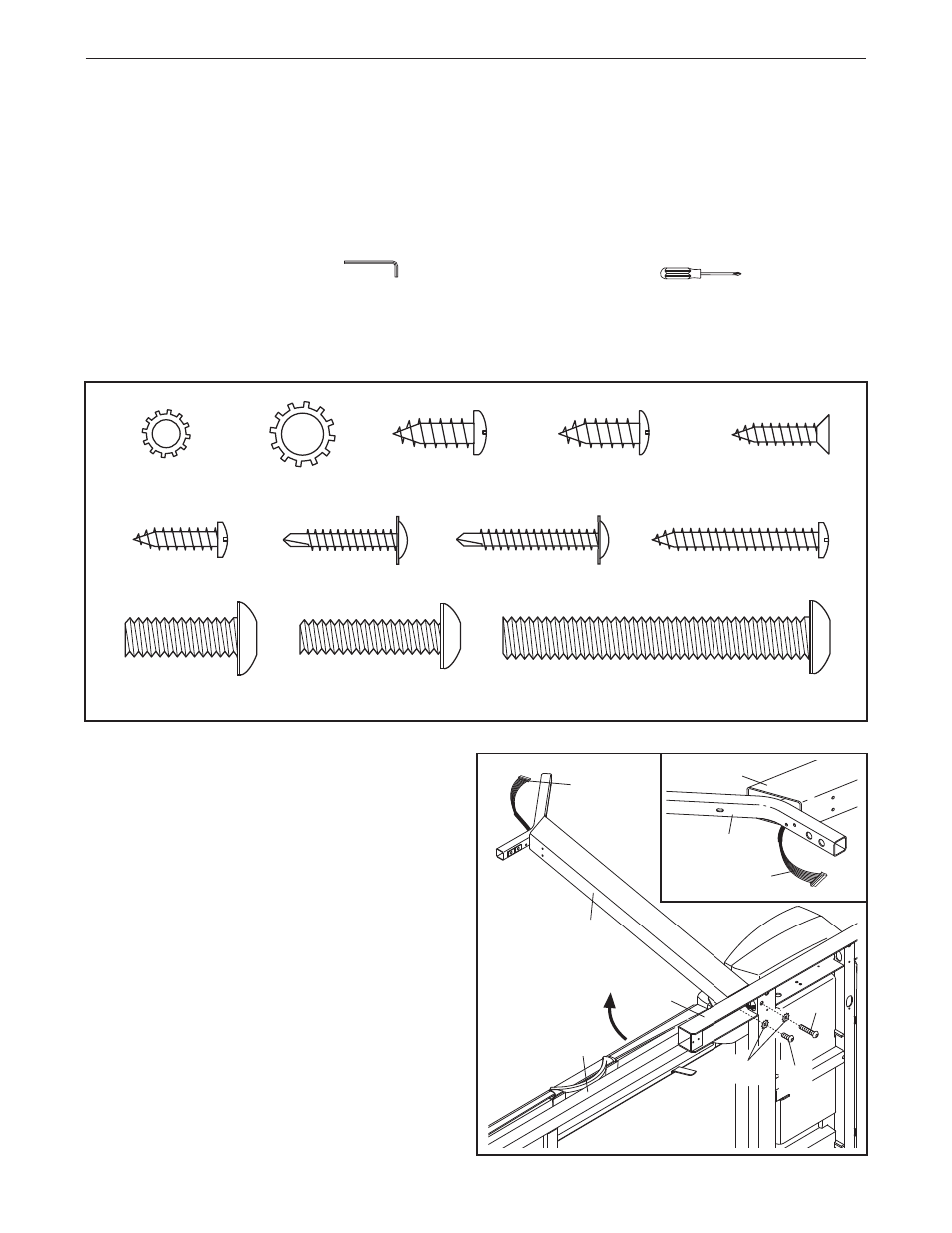

Use the drawings below to identify the hardware used during assembly. Note: If a part is not in the hardware
kit, check to see if it has been preattached to one of the parts to be assembled. To avoid damaging plas-
tic parts, do not use power tools for assembly.
26
75
76
85
84
83
81
3/4" Screw (23)–6
Cover Screw (52)–4
3/8" Star
Washer (83)–4
Console Screw (67)–4
Pulse Bar Star
Washer (65)–4
Silver Pulse Bar
Screw (64)–4
Endcap Screw
(79)–2
1 1/4" Tek Screw (49)–2 1" Tek Screw (77)–4
1" Upright Bolt (84)–2 1 1/4" Bolt (63)–4 2 3/4" Upright Bolt (85)–2
1
75
Post
76
