-63-

G8144Z/G8145Z/G8146Z
Vertical Metal Cutting Bandsaw

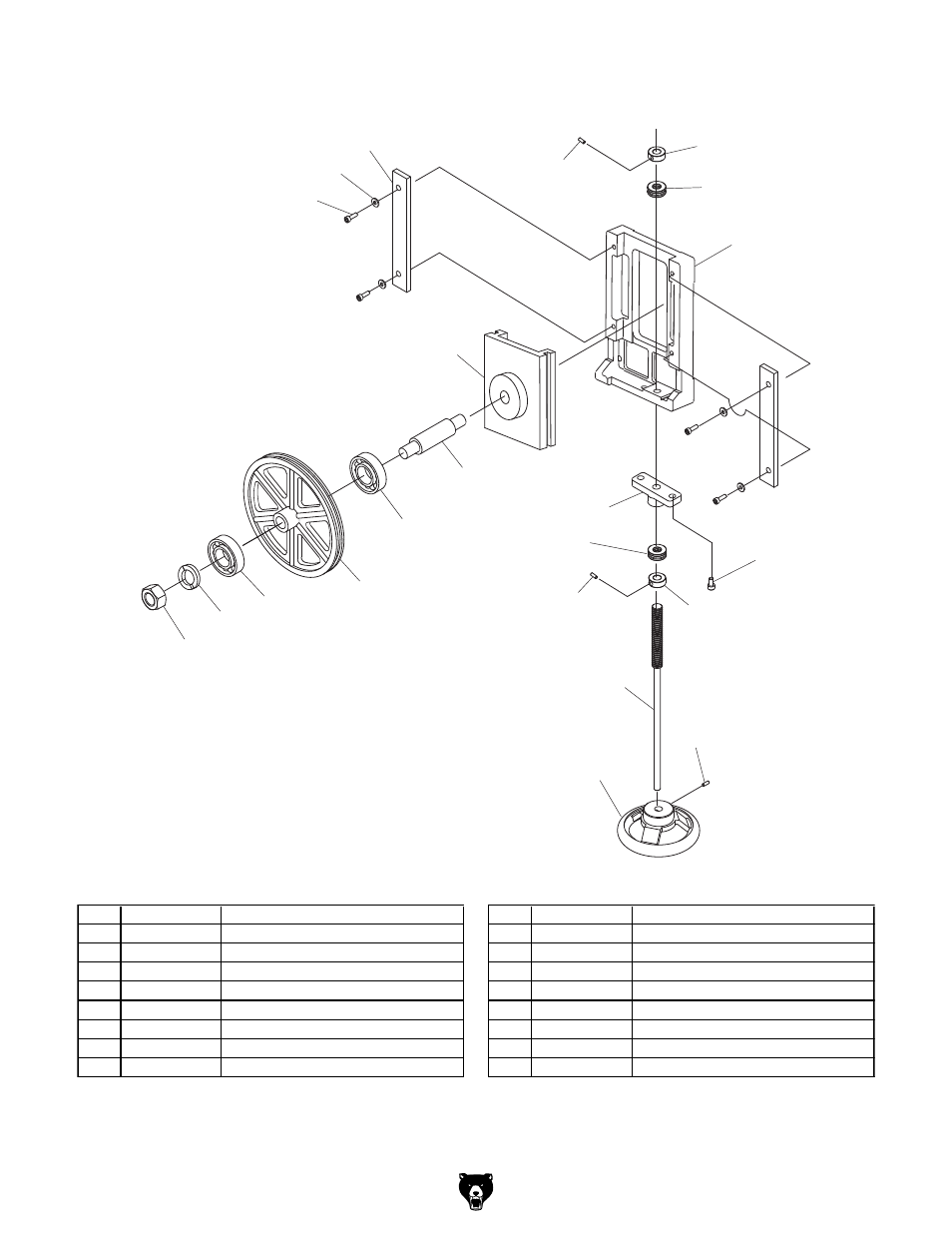

G8146Z Upper Wheel Breakdown & Parts List

��

REF PART #

DESCRIPTION

REF PART #

DESCRIPTION

603

PN09

HEX NUT 5/8-18

612

PSS02M

SET SCREW M6-1 X 6

604

PLW06

LOCK WASHER 5/8

613

P8146Z613

COLLAR

605

P6304

BALL BEARING 6304ZZ

614

P2901

THRUST BEARING 2901

606

P8146Z606

WHEEL UPPER

615

P8146Z615

TENSIONING WAY

607

P8146Z607

UPPER WHEEL SHAFT

616

P8146Z616

LEADSCREW BRACKET

608

P8146Z608

SLIDING BLOCK

617

PSB31M

CAP SCREW M8-1.25 X 25

609

PB07M

HEX BOLT M8-1.25 X 25

618

P8146Z618

LEADSCREW 5/8-18 X 11-13/16

610

PLW04M

LOCK WASHER 8MM

619

P8146Z619

HANDWHEEL

611

P8146Z611

LOCK PLATE

620

PSS16M

SET SCREW M8-1.25 X 10
