-62-
G8144Z/G8145Z/G8146Z
Vertical Metal Cutting Bandsaw

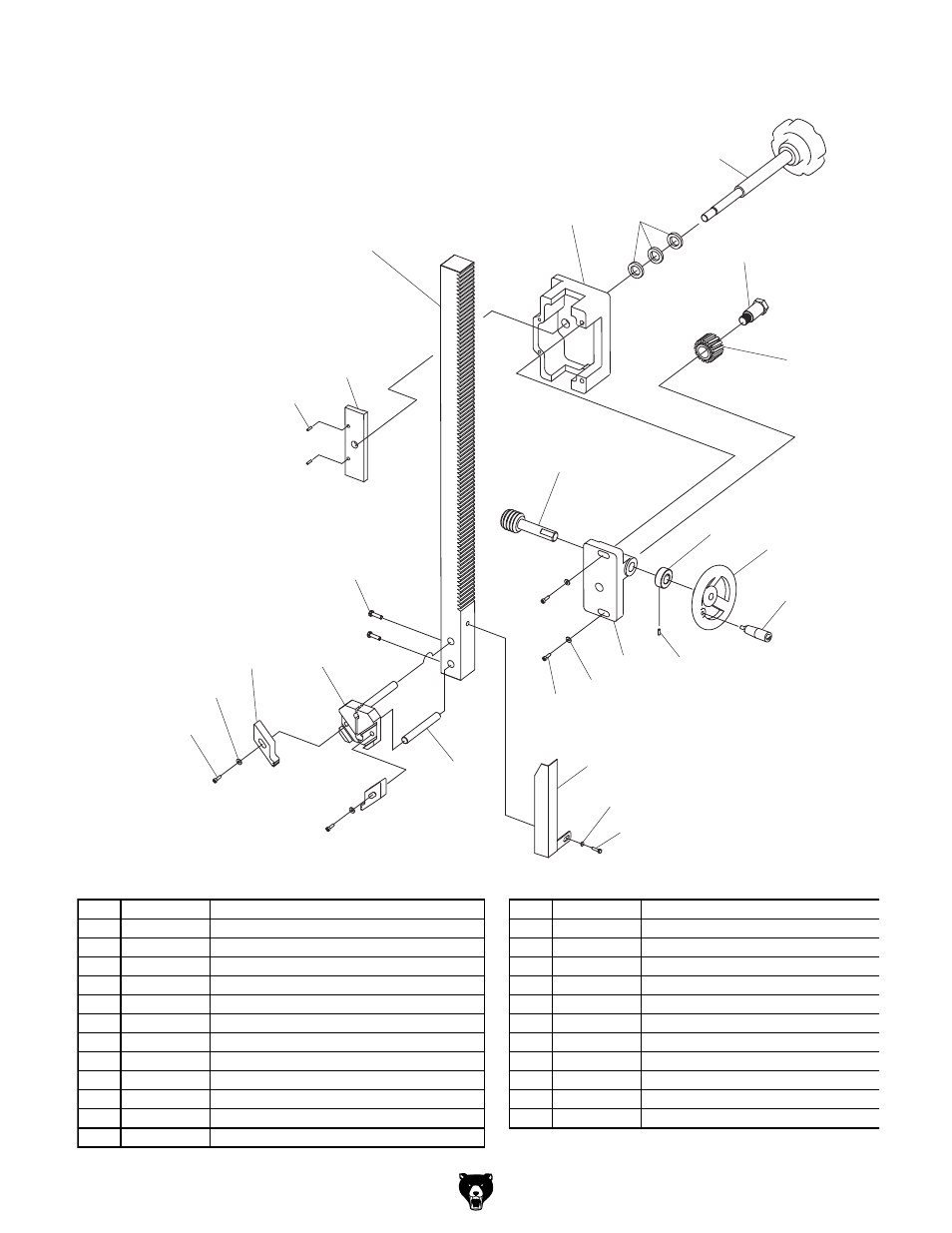

G8146Z Guide Post Breakdown & Parts List
���
���
��� ���
���
���
���
���
���
��� ���
���
���
���
���
���
���
���
��� ���
���
���
���
���
���
REF PART # DESCRIPTION REF PART # DESCRIPTION
501 PSB02M CAP SCREW M6-1 X 20 514 P8146Z514 GUIDE POST PINION GEAR 15T OD 32MM
502 PW03M FLAT WASHER 6MM 515 P8146Z515 WORM GEAR P6.2832 OD 27MM
503 P8144Z503 BLADE GUIDE 516 P8146Z516 COLLAR
504 P8144Z504 BLADE GUIDE BRACKET UPPER 517 P8146Z517 HANDWHEEL HANDLE
505 P8144Z505 BLADE SUPPORT 518 P8146Z518 HANDWHEEL
506 PSB02M CAP SCREW M6-1 X 20 519 PSS02M SET SCREW M6-1 X 6
507 PRP102M ROLL PIN 4 X 36 520 P8146Z520 BRACKET
508 P8146Z508 GUIDE POST CLAMP PLATE 521 PLW03M LOCK WASHER 6MM
509 P8146Z509 GUIDE POST RACK 522 PSB02M CAP SCREW M6-1 X 20
510 P8146Z510 GUIDE POST BRACKET 523 P8146Z523 BLADE GUARD
511 P8146Z511 SPECIAL FLAT WASHER 13 X 35 X T2 524 PW04M FLAT WASHER 10MM
512 P8146Z512 LOCK KNOB 7/16-14 X 7/8 525 PSB146M CAP SCREW M10-1.5 X 15
513 P8146Z513 SPECIAL SCREW 1/2-14 X 9/16
