Grizzly G8146Z - Manual (Page 56)

-54-
G8144Z/G8145Z/G8146Z
Vertical Metal Cutting Bandsaw

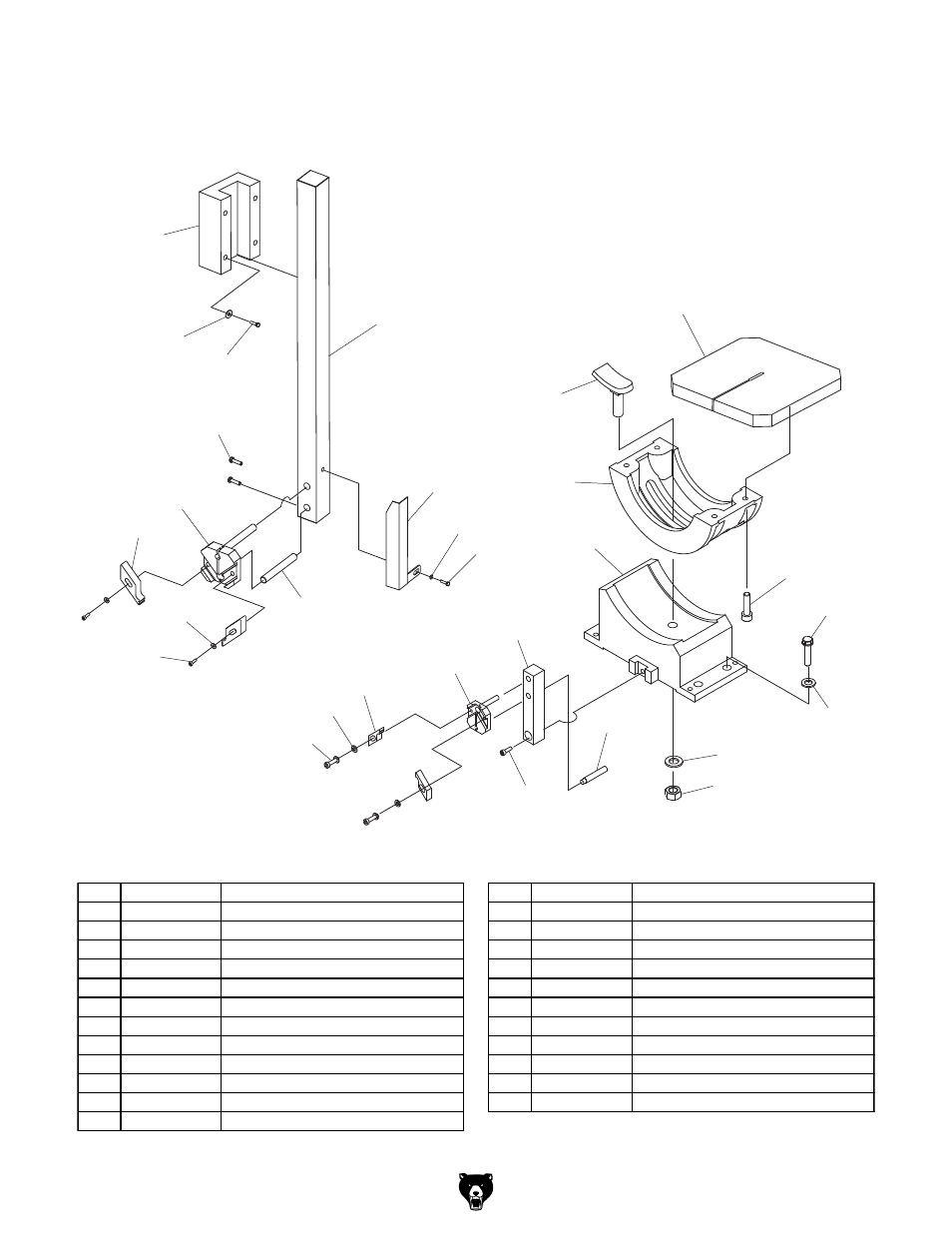

G8144Z Table & Guides Breakdown
& Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
101 PSB15M CAP SCREW M5-.8 X 20 113 PSB31M CAP SCREW M8-1.25 X 25
102 PW02M FLAT WASHER 5MM 115 P8144Z115 TRUNNION
103 P8144Z103 BLADE GUIDE 116 P8144Z116 TABLE TILT LOCK 5/8-11 X 2
104 P8144Z104 BLADE GUIDE BRACKET LOWER 117 P8144Z117 TABLE
104-1 P8144Z104-1 BLADE GUIDE BRACKET UPPER 118 PSB11M CAP SCREW M8-1.25 X 16
105 P8144Z105 GUIDE POST LOWER 119 PW01M FLAT WASHER 8MM
106 PSB64M CAP SCREW M10-1.5 X 25 120 P8144Z120 BLADE GUARD
107 P8144Z107 BLADE SUPPORT 121 PSB11M CAP SCREW M8-1.25 X 16
108 PN04 HEX NUT 5/8-11 122 P8144Z122 GUIDE POST UPPER
109 PW14 FLAT WASHER 5/8 123 PSB13M CAP SCREW M8-1.25 X 30
110 PW01M FLAT WASHER 8MM 124 PW01M FLAT WASHER 8MM
111 PB26M HEX BOLT M8-1.25 X 30 125 P8144Z125 GUIDE POST WAY
112 P8144Z112 TRUNNION BASE
���
���
���
���
�����
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
