Vertical Metal Cutting Bandsaw

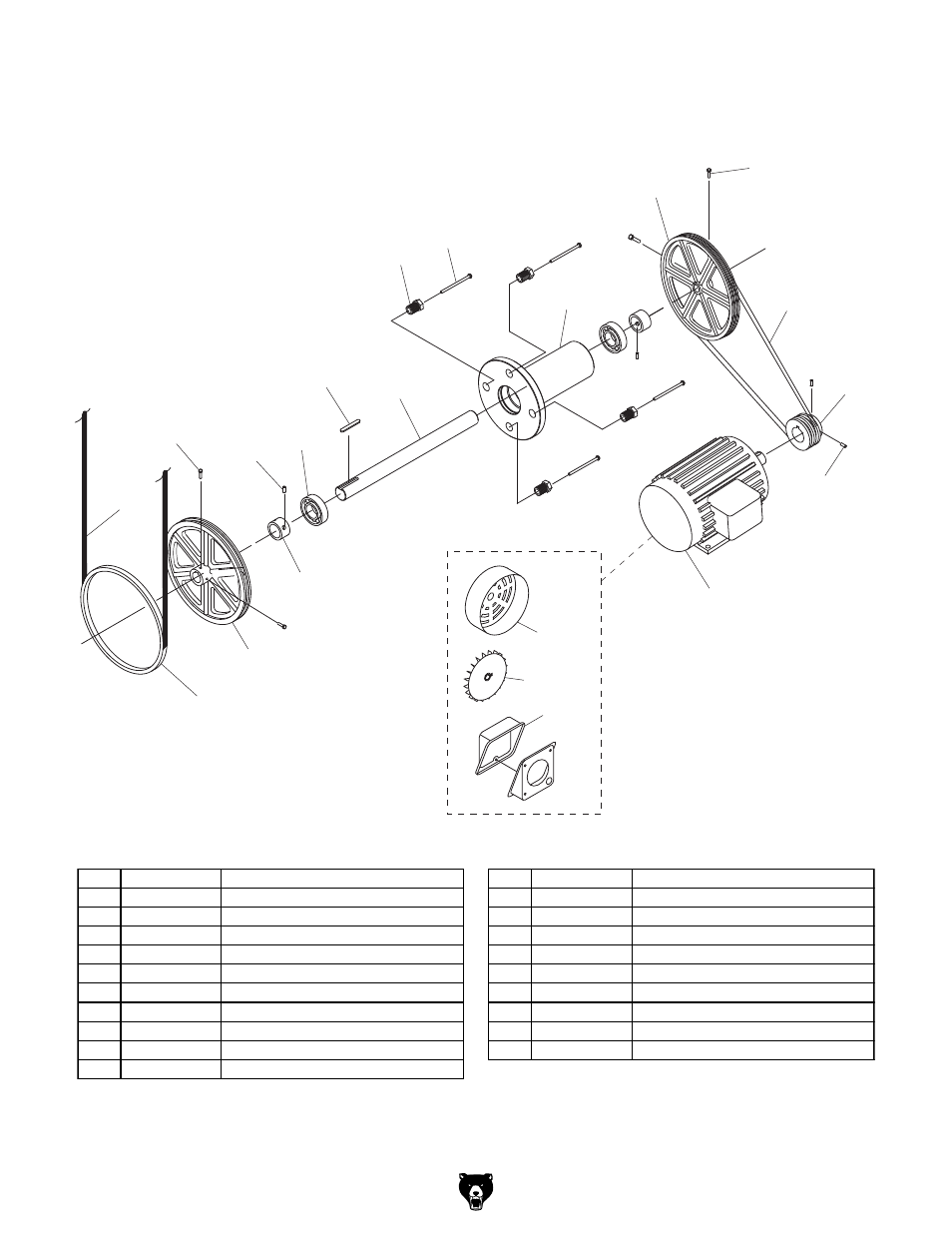

G8146Z Motor & Lower Wheel Breakdown
& Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
201 P8146Z201 WHEEL TIRE 212 P8146Z212 BEARING HOUSING
202 P8146Z202 BANDSAW BLADE 3/8"W STANDARD 213 PB25M HEX BOLT M12-1.75 X 25
203 P8146Z203 WHEEL LOWER 214 P8146Z214 WHEEL PULLEY
204 PB170M HEX BOLT M10-1.5 X 10 215 PVA66 V-BELT A-66 4L660
205 P8146Z205 COLLAR 216 PSS16M SET SCREW M8-1.25 X 10
206 PSS20M SET SCREW M8-1.25 X 8 217 P8146Z217 MOTOR PULLEY
207 P6206 BALL BEARING 6206ZZ 218 P8146Z218 MOTOR 2HP 220V 3PH
208 PK107M KEY 8 X 8 X 20 218-1 P8146Z218-1 MOTOR FAN COVER
209 P8146Z209 LOWER WHEEL SHAFT 218-2 P8146Z218-2 MOTOR FAN
210 P8146Z210 SPECIAL SCREW 3/4-16 218-3 P8146Z218-3 MOTOR WIRING JUNCTION BOX
211 PB73M HEX BOLT M10-1.5 X 50
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
�����
�����
�����
