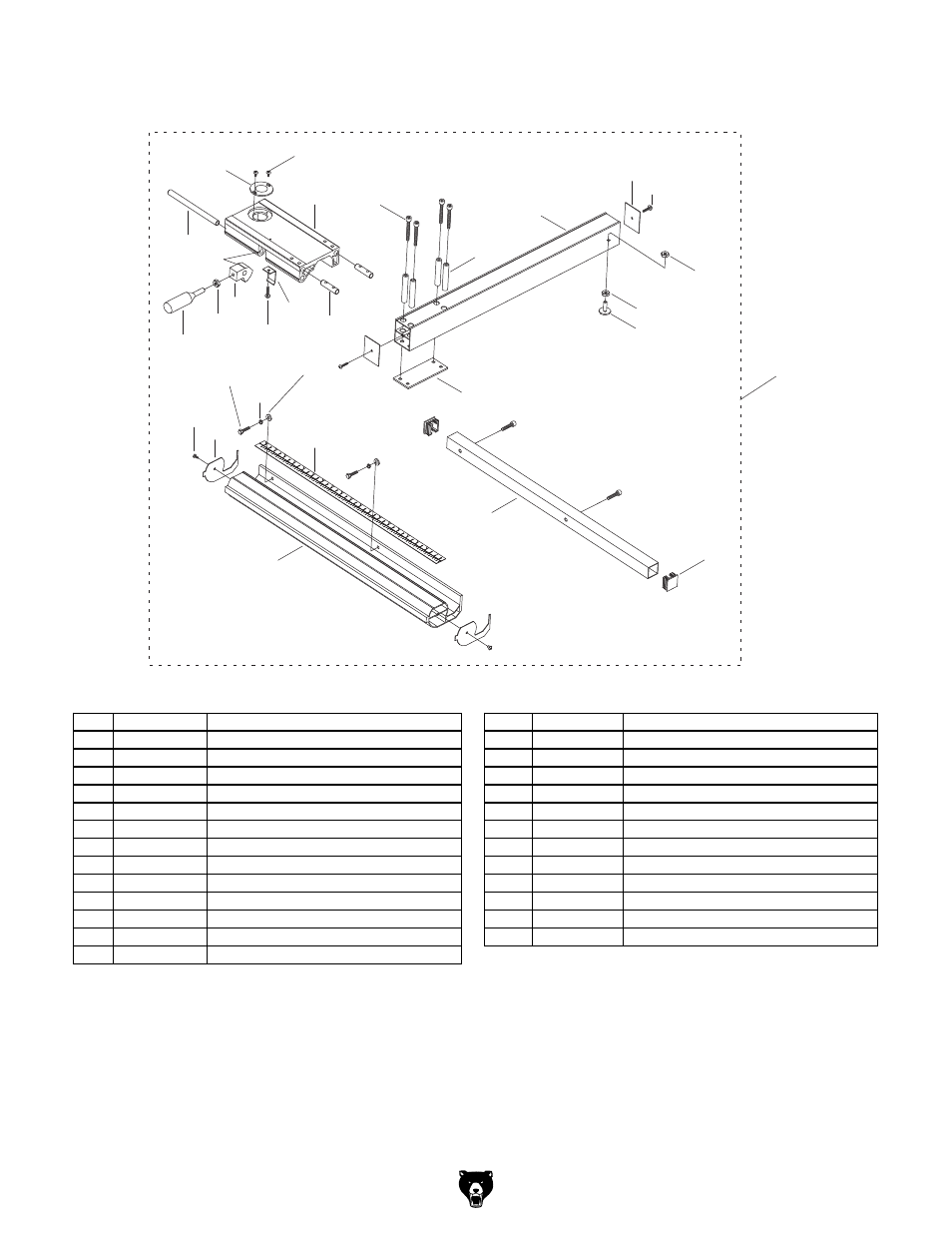

G0513/G0513P/G0513ANV Fence
REF PART # DESCRIPTION REF PART # DESCRIPTION
125 P0513125 FENCE ASSEMBLY W/RAILS 214 P0513214 REAR FENCE RAIL
201 P0513201 FRONT FENCE RAIL 215 PN01M HEX NUT M6-1
202 P0513202 FENCE BASE 216 PFS04M FLANGE SCREW M4-.7 X 6
203 P0513203 ALIGNMENT SHAFT 217 P0555317 FRONT RAIL END CAP
204 P0513204 LOCK BLOCK SHAFT 218 P0513218 FENCE END CAP
205 P0555305 SPRING PLATE 219 P0555319 REAR RAIL END CAP
206 P0555306 SPACER PLATE 220 PHTEK3M TAP SCREW M3.5 X 8
207 P0513207 FENCE 221 P0513221 FENCE SCALE
208 P0513208 SLEEVE 222 PN01M HEX NUT M6-1
209 P0513209 FENCE LOCK HANDLE 223 PLW03M LOCK WASHER 6MM
210 P0513210 RAIL PAD 225 PB08M HEX BOLT M6-1 X 20
211 P0513211 CONVEX WINDOW 226 PFS05M FLANGE SCREW M4-.7 X 10
212 PCAP83M CAP SCREW M6-1 X 55 227 PW03M FLAT WASHER 6MM
213 P0555313 LOCK CAM
