G0513 Series Bandsaws

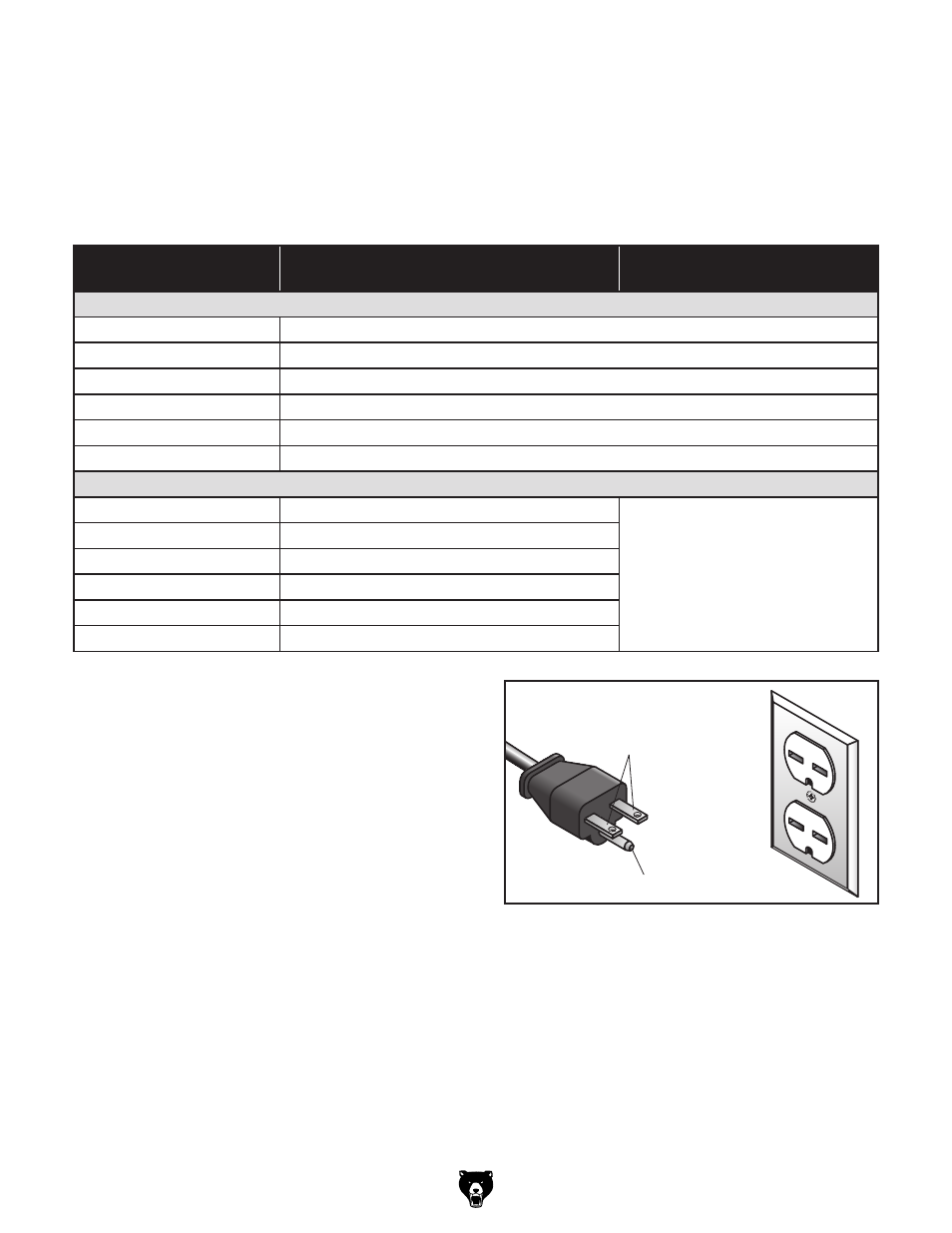

Figure 5. typical 6-15 plug and receptacle.
Grounding Prong
Current Carrying Prongs
6-15 PLUG
GROUNDED
6-15 RECEPTACLE
Grounding Requirements
This machine MUST be grounded. In the event
of certain malfunctions or breakdowns, grounding
reduces the risk of electric shock by providing a
path of least resistance for electric current.
Grounding Requirements for 220V: the plug
specified under “Circuit requirements for 220V
operation” on this page has a grounding prong
that must be attached to the equipment-grounding
wire inside the specified power cord. the plug
must only be inserted into a matching recep-
tacle (see
Figure 5) that is properly installed and
grounded in accordance with all local codes and
ordinances.
Model Number
G0513, G0513P, G0513ANV, G0513X2,
G0513X2F
G0513X2B & G0513X2BF
circuit Requirements For 220V Operation:
Nominal Voltage
220V/240V
Cycle 60 hz
phase single-phase
power supply Circuit 15 amps
plug/receptacle NEMa 6-15
power Cord “s”-type, 3-Wire, 14 aWg, 300 VaC
circuit Requirements For 110V Operation:
Nominal Voltage
110V/120V
N/a
Cycle 60 hz
phase single-phase
power supply Circuit 30 amps
plug/receptacle NEMa l5-30
power Cord “s”-type, 3-Wire, 12 aWg, 300 VaC
circuit Requirements
these machines are prewired to operate on a 220V power supply circuit that has a verified ground and meet
the 220V operation requirements listed below.
Models g0513, g0513p, g0513aNV, g0513X2, and g0513X2F can be converted to operate on a 110V
power supply (refer to
Voltage conversion instructions beginning on Page 69) that has a verified ground
and meet the 220V operation requirements listed below.
