-38-
G0513 Series Bandsaws
Aligning Fence (G0513X2B &
G0513X2BF)
1. disCoNNECt BaNdsaW FroM poWEr!
2. Make sure the table is aligned with the blade
(see Aligning Table on Page 36 for detailed
instructions).
3. install the fence and lock it in place next to
the miter slot.
4. loosen the end knobs and the center cap
screw that secure the front rail to the table
(see
Figure 55).

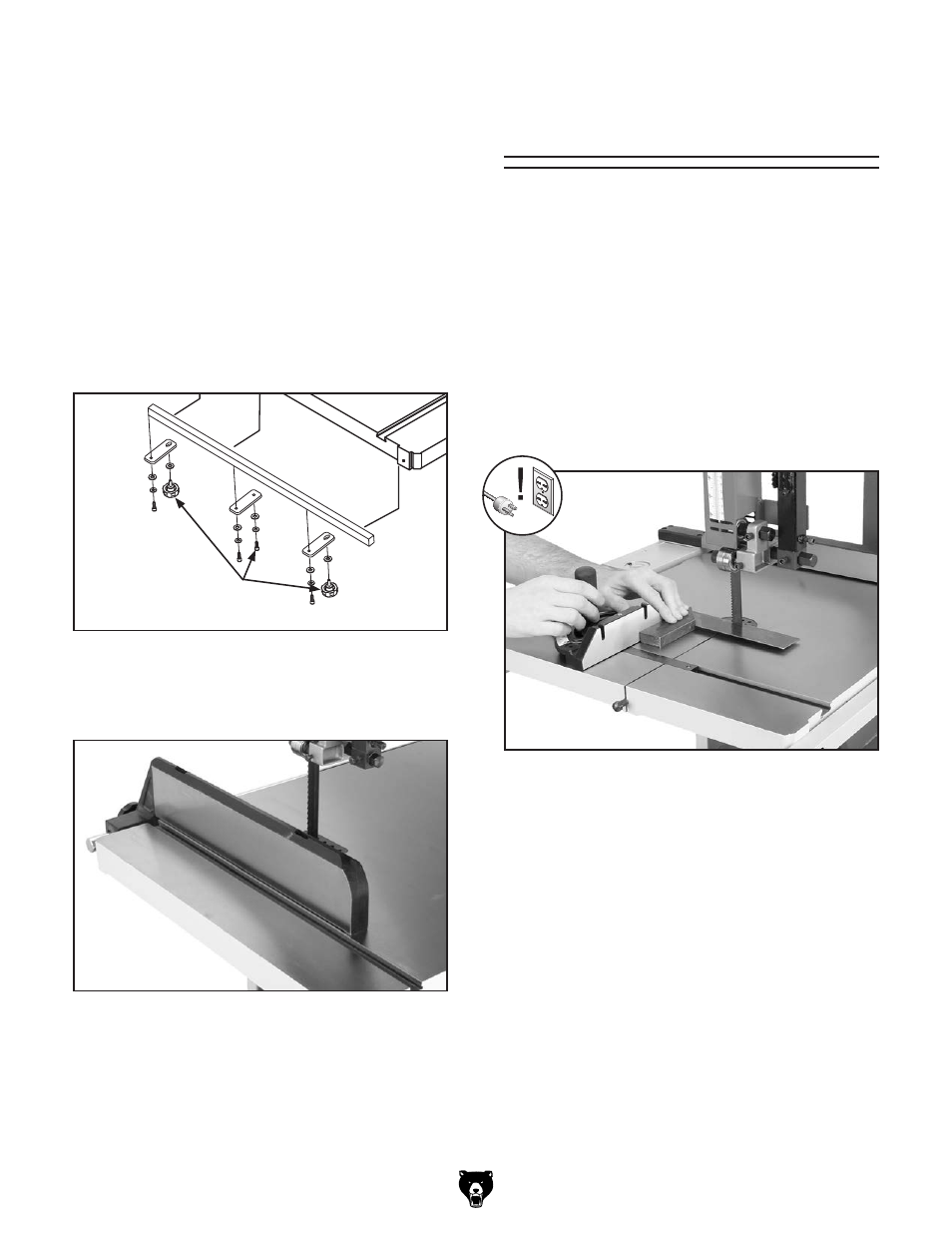

Figure 55. loosen these knobs and cap screw.
loosen these
6. tighten the knobs and cap screw that secure
the rail to the table, being careful not to move
the fence.
Figure 56. Example of fence parallel with miter
slot.
5. adjust the fence face parallel with the edge of
the miter slot, as shown in Figure 56.
calibrating Miter
Gauge
the miter gauge needs to be calibrated to the
blade when it is first mounted in the miter slot.
Tool Needed Qty
phillips screwdriver #2 ...................................... 1
To calibrate the miter gauge:
1. disCoNNECt BaNdsaW FroM poWEr!
2. use a square with one edge against the face
of the miter gauge and the other against the
blade side, as shown in
Figure 57.
Figure 57. squaring miter gauge to blade.
3. loosen the lock knob on the miter gauge
and adjust the face flush with the edge of the
square.
4. tighten the lock knob, and verify the setting.
Note: Sometimes the tightening procedure
can affect the adjustment.
5. loosen the screw that secures the angle
pointer, and adjust the pointer to the 0˚ mark
on the scale.
6. re-tighten the screw to secure the setting.
