-24-
G0513 Series Bandsaws
To Install the resaw fence:
1. place the 8mm flat washer on the lock handle
(see Figure 29), slide it through the hole in
the fence, then thread the moving plate onto
the end of the lock handle threads.

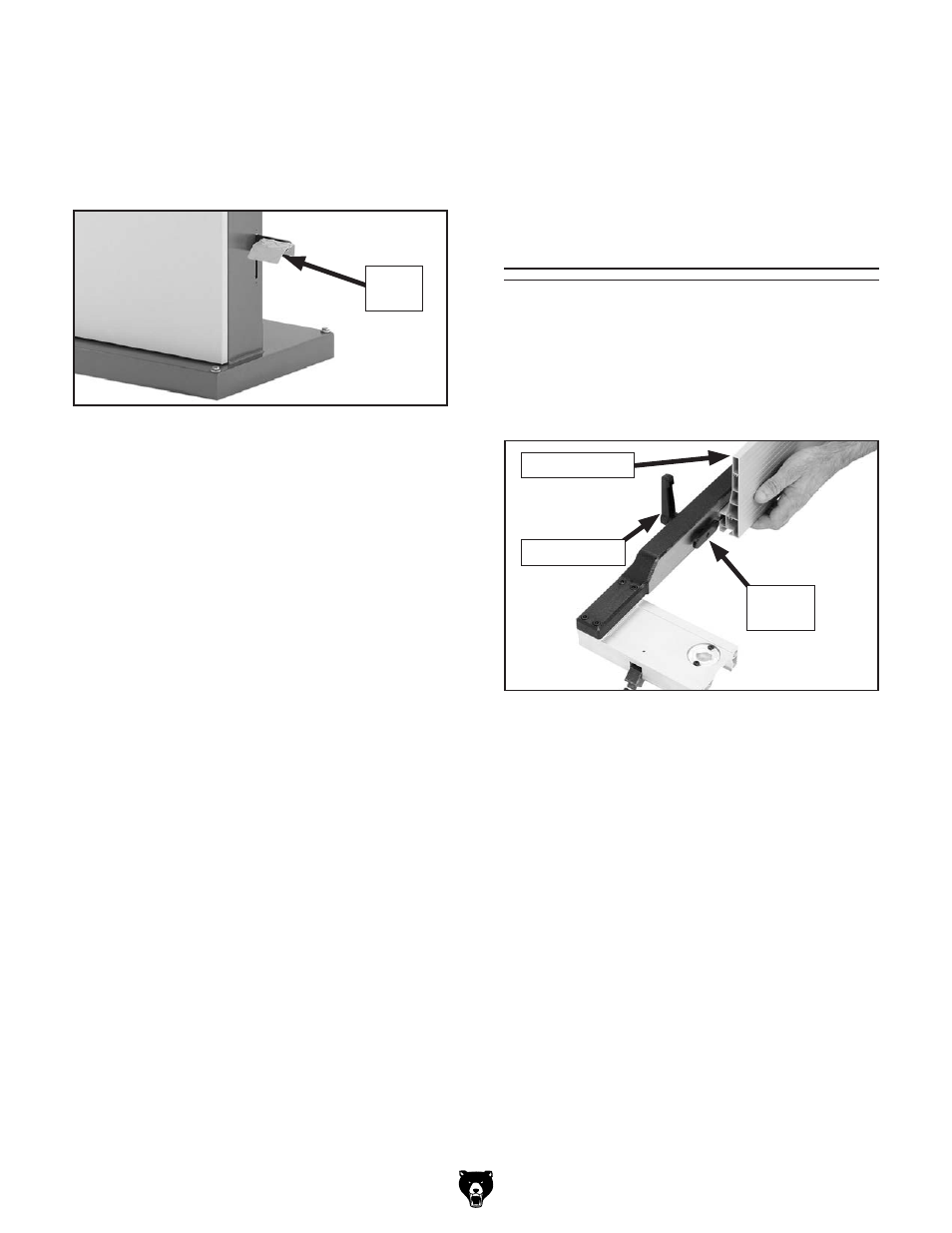

Figure 29. attaching resaw fence.
resaw Fence
lock handle
Moving
plate
2. slide the resaw fence over the moving plate,
as shown in Figure 29, so the moving plate
fits inside the channel of the resaw fence,
then tighten the lock handle.
Installing Foot Brake Pedal
(G0513X2BF & G0513X2F)
secure the foot brake pedal to the brake lever
using the (2) M6-1 x 16 cap screws and 6mm lock
washers, as shown in
Figure 28.
Figure 28. Foot brake installed.
Brake
pedal
Installing Resaw
Fence (G0513X2,
G0513X2B,
G0513X2BF, &
G0513X2F)
