GarrettCom P62 User Manual
Page 18
Magnum P62-Series Hardened Switches Installation and User Guide (05/05)
14
www GarrettCom com
.
.
2.2.5
RS-232 (DB-9) Console Com. port pin assignments.

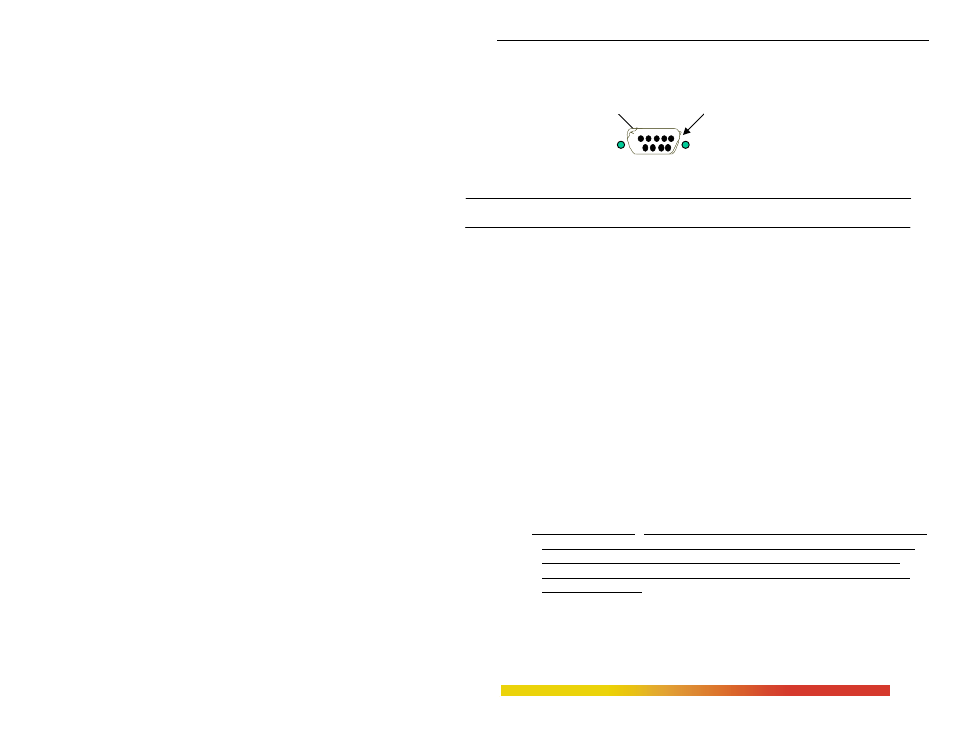

DB-9 (Console port connector)
Pin
Signal
Description
1
CD
Carrier
detect
(not
used)
2
RXD
Receive
Data
(input)
3
TXD
Transmit
Data
(output)
4
open
not
used
5
GND
Signal
Ground
6-9
open
not
used
The above provided information enables a managed station( a PC or Console terminal) to connect
directly to the switch using a straight through cable.(Note: The Null-Modem (DB-9) cable is
optional and can be order from the factory, along with the unit
NOTE for Power Substations: In support of the IEEE 1613 Class 2 standard, GCI advises that,
for substation applications, the serial RJ-45console ports are intended for temporary
connectivity to other equipment such as PCs. Since the console port connection is
temporary, it is excluded from IEEE 1613 packet-loss testing per the 1613 standard-
defined test procedure.
2.3
Fiber port, SC Connectors
The Fast Ethernet fiber switched ports on the Magnum P62-Series operate at
fixed 100Mb speed and full-duplex mode for the best performance. The P62’s fiber ports are
factory-built as either a multi-mode or single-mode SC connector. A yellow label on the fiber port
Pin 5
Pin 1
