309445
7

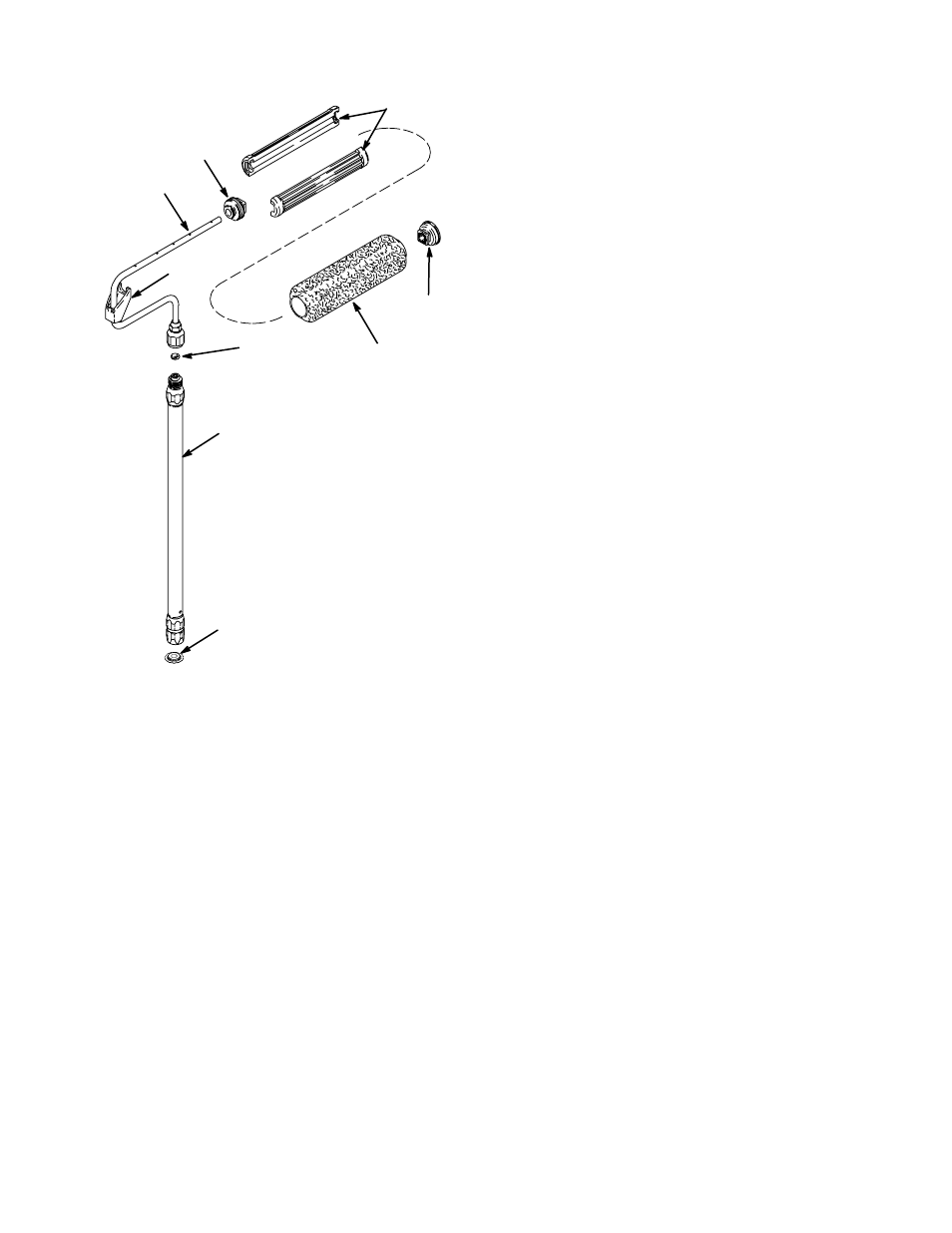

Parts List
1
5
14
7
12
19
2
4
23
ti10642a
Pressure Roller
Model 245397, Series A
Ref.
No.
Part No.
Description
Qty.
1
244271*
FRAME, roller
1
2
245999
CAP, end (includes seal and retainer)
1
4
246277
CAP, end (includes seal, retainer, and
o–ring)
1
5
197106
CLIP, roller
1
7
15H622
GASKET
1
12
115524
GASKET
1
14
232122
EXTENSION, 20 in. (50 cm)
1
19
107590
ROLLER, cover, 9 inch,
1/2 in. (13 mm) nap
1
23
15B065
DIFFUSER
2
*244271 Frame includes 1, 2, 4, 5, 12, 19, 23.
Additional Roller Covers
The following pressure roller covers are available at
your local distributor:
107589
9 in. (23 cm); 3/8 in. (9.5 mm) nap
107590
9 in. (23 cm); 1/2 in. (13 mm) nap
107591
9 in. (23 cm); 3/4 in. (19 mm) nap
107592
9 in. (23 cm); 1-1/4 in. (32 mm) nap
Additional Heavy Duty Extensions
The following extensions can be mixed and matched to
create any length pressure roller needed and are
available at your local distributor:
232121
10 in. (25 cm)
232122
20 in. (50 cm)
232123
40 in. (100 cm)
232124
60 in. (150 cm)
232125
80 in. (200 cm)
