9

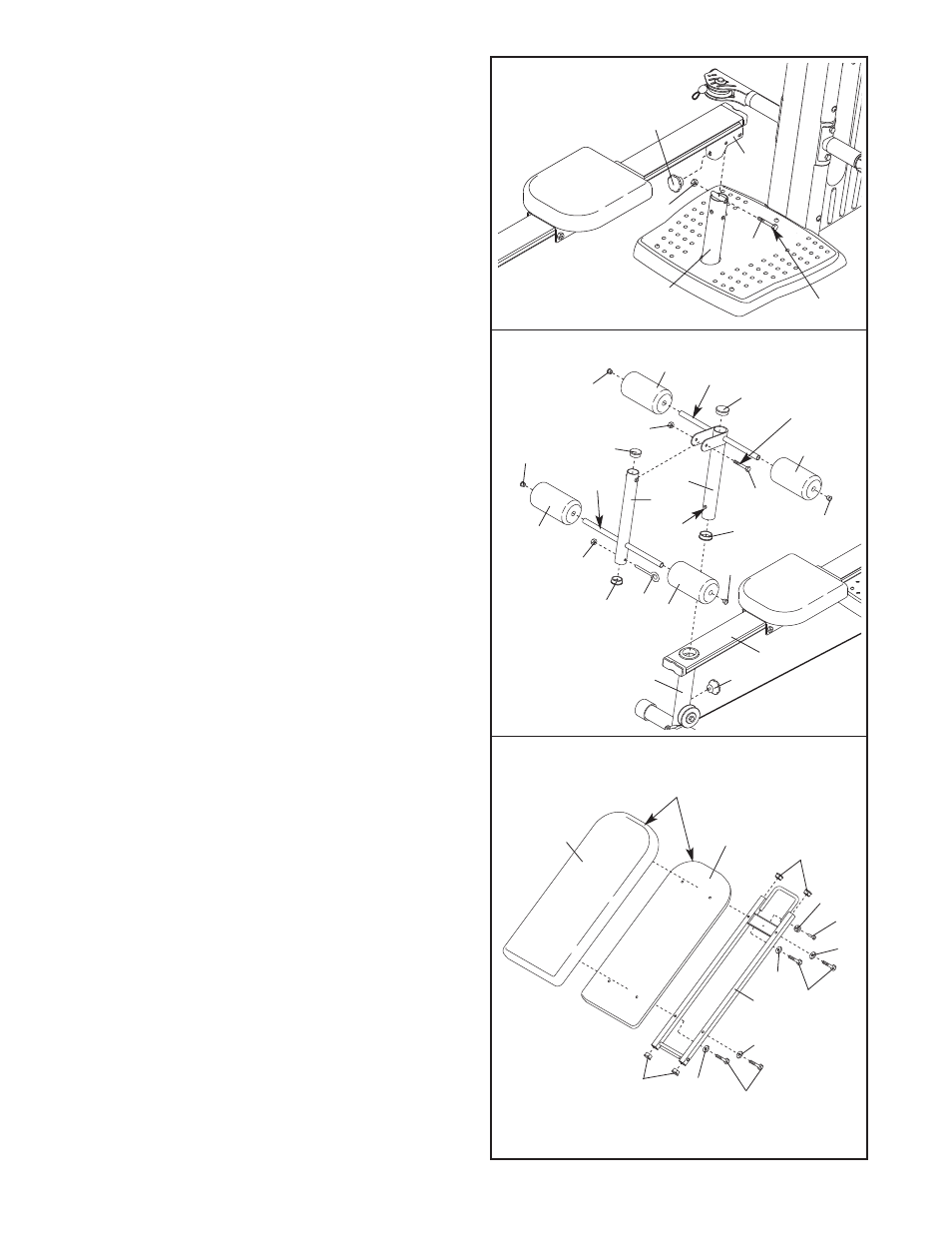

9. Lubricate an M10 x 83mm Bolt (92). Attach the
Pivot Bracket (23) to the Base (4) with the Bolt,
an M10 Nylon Locknut (72), and a Bench Knob
(41).
10. Press two 2” Round Inner Caps (56) into the top
and bottom of the Leg Developer (21). Press two
46mm Round Inner Caps (55) into the top and
bottom of the Leg Lever (22).
Attach the Eyebolt (63) to the indicated side of
the Leg Lever (22) with an M8 Zinc Nylon
Locknut (105).
Lubricate an M10 x 69mm Bolt (91). Attach the
Leg Lever (22) to the Leg Developer (21) with the
Bolt and an M10 Nylon Locknut (72).
Press four 19mm Round Inner Caps (60) into the
tubes on the Leg Developer (21) and the Leg
Lever (22). Slide four Foam Pads (38) onto the
tubes.
Slide the Leg Developer (21) into the Bench
Frame (2). Align the hole in the Leg Developer
with a hole in the Front Leg (1). Tighten a Bench
Knob (41) into the hole in the Leg Developer.
9
10
23
41
92
Lubricate
Lubricate
72
4
22
21
Hole
56 60
60
60
38
Tube
Tube
38
38
38
72
91
60
55
55 63
105
41 1
2
56
11. Press four 1” Square Inner Caps (57) into the
ends of the Backrest Frame (17). Attach a Plastic
Foot (46) to the Backrest Frame with an M4 x
12mm Screw (102).
Orient the Backrest (18) and Backrest Backing
(116) as shown. Attach the Backrest and Backrest
Backing to the Backrest Frame (17) with four M6
Washers (69) and four M6 x 38mm Screws (90).
11
102
Round
End
57
116
57
18
69
69
69
69
46
90
90
17
