Before beginning assembly, carefully read the

following information and instructions:

• Assembly requires two people.

• For help identifying small parts, use the PART

IDENTIFICATION CHART on page 5.

• Tighten all parts as you assemble them, unless

instructed to do otherwise.

• As you assemble the system, make sure all parts

are oriented as shown in the drawings.

• Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing

materials until assembly is completed.

The following tools (not included) are required

for assembly:

• Two adjustable wrenches

• One rubber mallet

• One standard screwdriver

• One Phillips screwdriver

• One Allen wrench (included)

• Lubricant, such as grease or petroleum jelly.

Assembly will be more convenient if you have a

socket set, a set of open-end or closed-end

wrenches, or a set of ratchet wrenches.

101

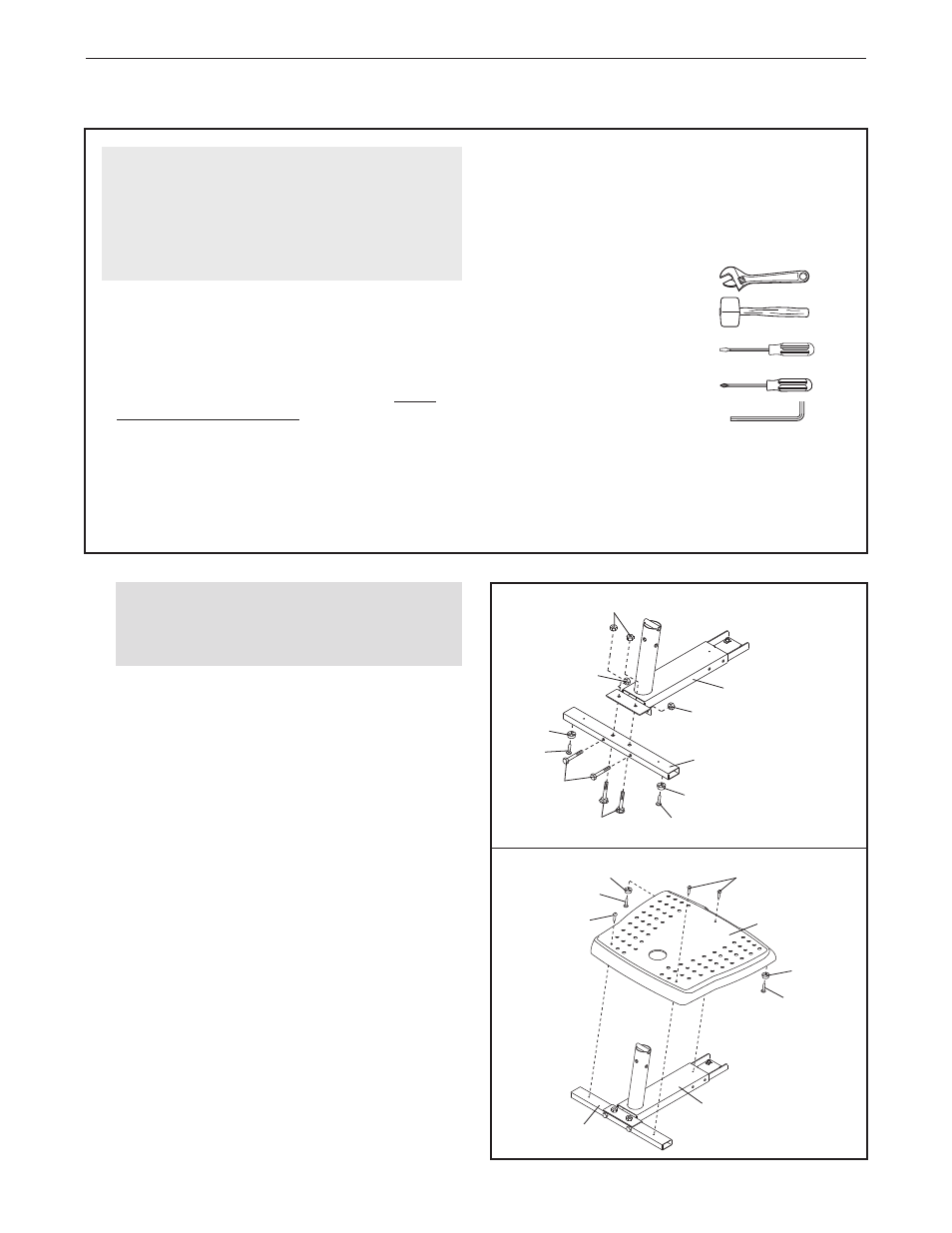

Attach two Plastic Feet (46) to the Base Stabilizer

(3) with two M4 x 16mm Screws (86).

Attach the Base Stabilizer (3) to the Base (4) with

two M8 x 38mm Carriage Bolts (75), two M8 x

64mm Bolts (101), and four M8 Black Nylon

Locknuts (71).

2. Attach two Plastic Feet (46) to the Base Cover (5)

with two M4 x 16mm Screws (86).

Attach the Base Cover (5) to the Base Stabilizer

(3) and Base (4) with three M4 x 25mm Screws

(85).

Make Things Easier for Yourself
This manual is designed to ensure that the

resistance system can be assembled success-

fully by anyone. Most people find that by setting

aside plenty of time, assembly will go smoothly.

ASSEMBLY

Before beginning assembly, be sure that

you have read and understand the infor-

mation in the box above.
