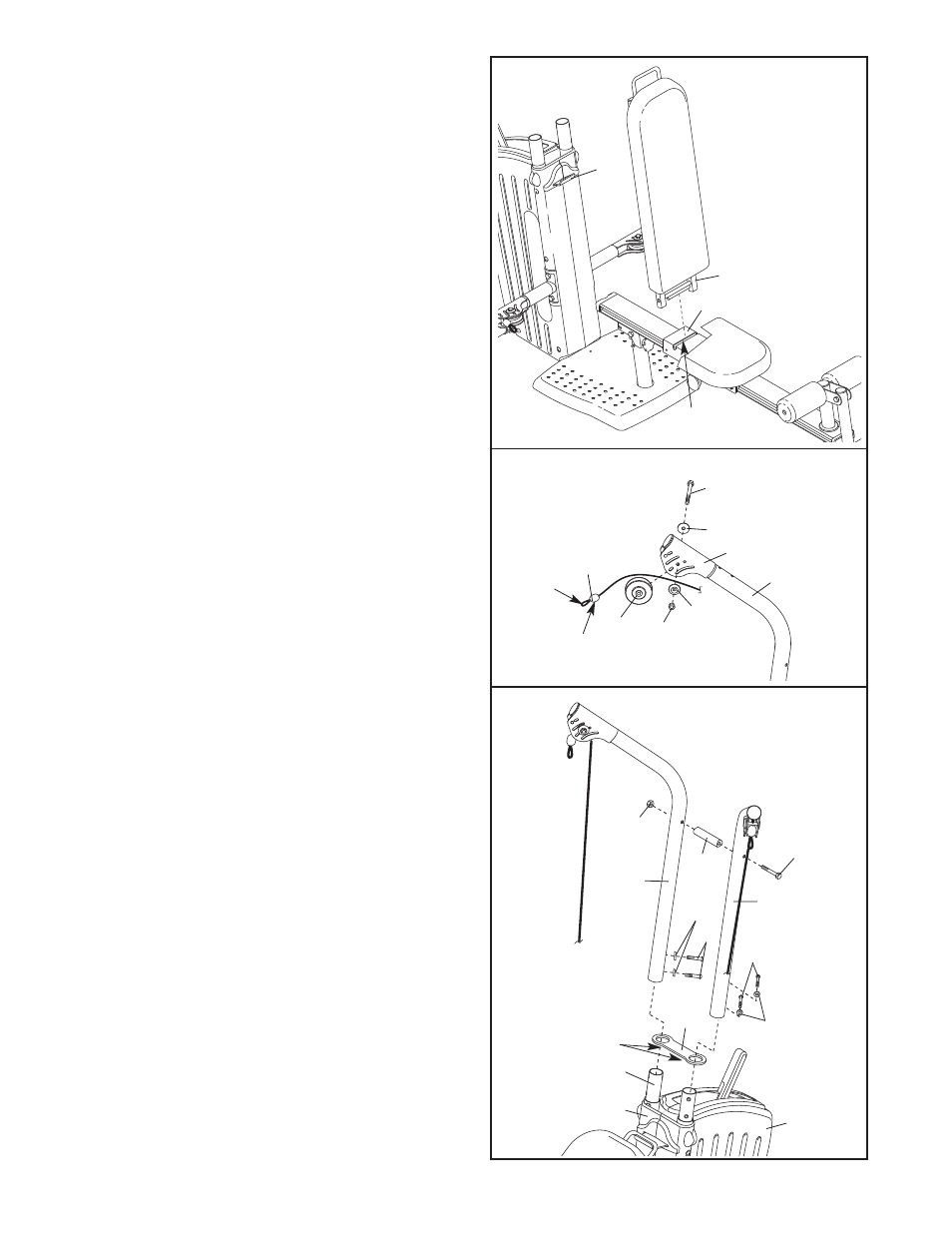

13 Wrap a Medium Nylon Rope (52) around a “V”-
Pulley (49) with the ball on the side shown. Note:
Be sure the ball is on the correct end of the
Rope; it should slide over the bracket holding
the loop. Attach the Pulley to the Pulley Arm
(14) on the Right Upright (9) with an M10 x 60mm
Button Bolt (89), two Pulley Bushings (48), and
an M10 Nylon Locknut (72).
Repeat this step with the Left Upright (not
shown).
13
48
48
52
Ball
Loop
9
49 72
89
14
12. Slide the Backrest Frame (17) into the slot in the
Seat Frame (19). Rest the Backrest Frame
against the Upright Base (6).
12
19
Slot
17
6
14. Slide the Upright Cover (34) onto the Upright
Base (6). Tip the Upright Cover forward and press
down so that the front tabs engage the Left and
Right Covers (10, 11). Press the back of the
Upright Cover so that the rear tabs engage the
Left and Right Covers.
Orient the Left and Right Uprights (8, 9) as
shown. Slide the Uprights onto the Upright Base
(6). Attach the Left Upright to the Right Upright
with an M10 x 215mm Bolt (81), the Upright
Spacer (65), and an M10 Nylon Locknut (72). Do
not tighten the Nylon Locknut yet.
Attach the Left and Right Uprights (8, 9) to the
Upright Base (6) with four M8 x 25mm Button
Screws (74) and four M8 Split Washers (104).
Tighten the M10 Nylon Locknut (72).
15. Make sure that all parts have been properly tight-
ened. The use of the remaining parts will be
explained in ADJUSTMENTS, beginning on the
following page.
14
65
72
9
81
8
74
6
74
104
10
11
34
Front
Tabs
104
