Basic TV Connections
You can choose one of four ways to connect the DVD Recorder+VCR to your TV (in order of
increasing picture quality): 1) RF, 2) Audio/Video, 3) S-Video, 4) Component Video/Progressive
Scan. Choose only one of these connection methods.
RF Coaxial Connections

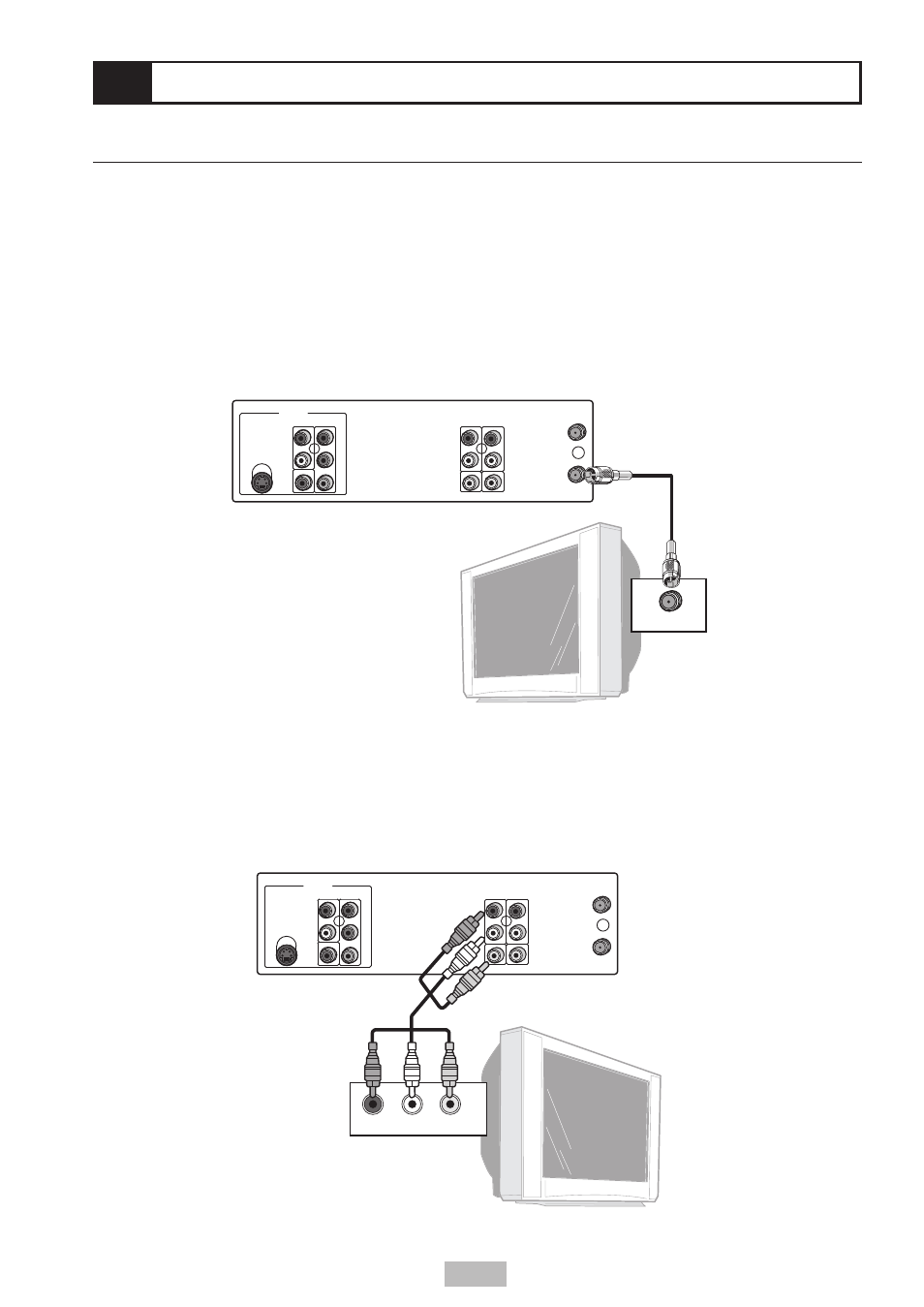

1
Connect the supplied RF coaxial cable from the RF OUT jack to the ANT. IN jack on your TV as
shown.
2
Tune your TV to channel 3 or 4.
• To change the RF out channel to 3 or 4, see Modulator Out on page 31.
3
Continue with Initial Setup on page 17.
