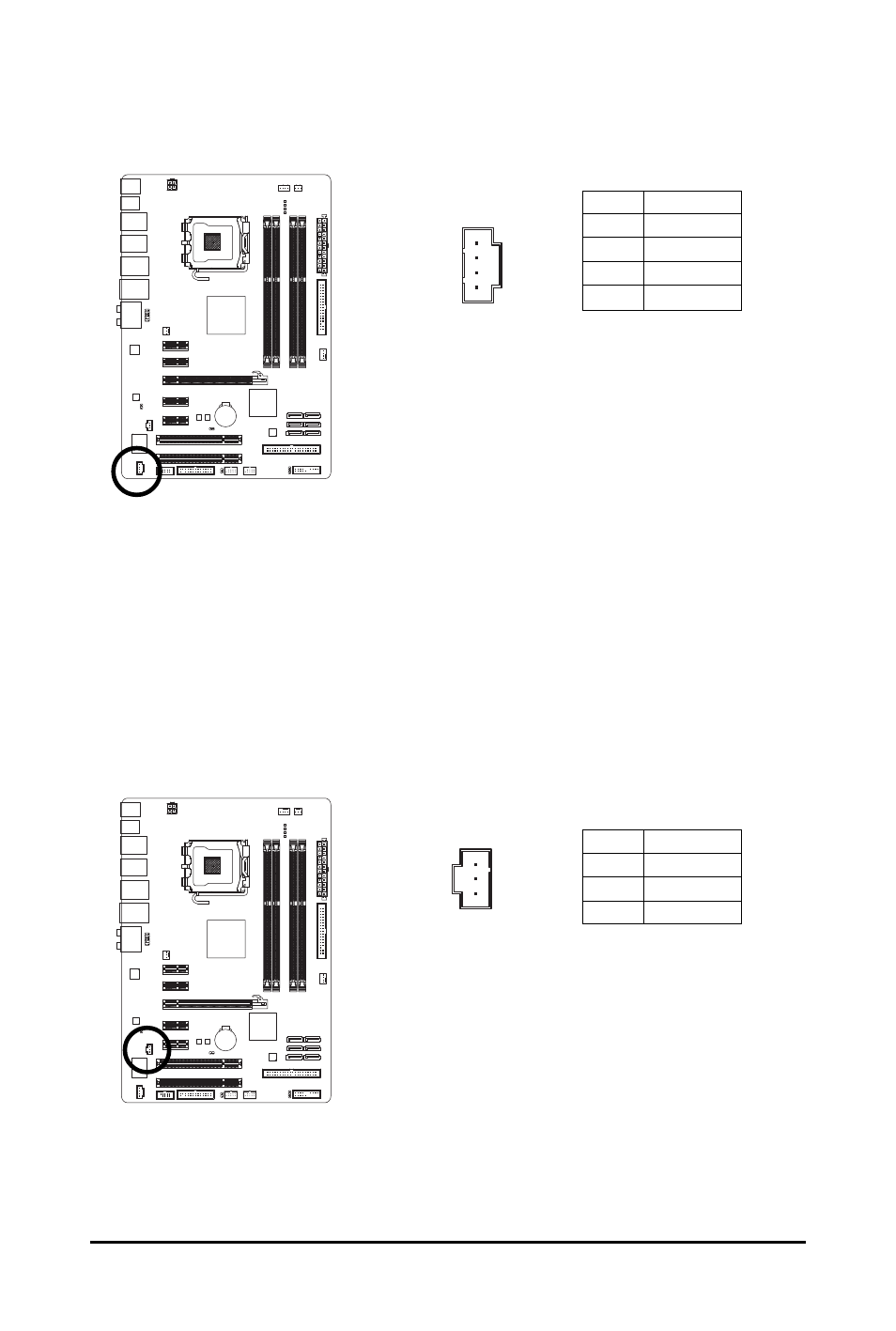

GA-EP45-UD3LR/UD3L Motherboard

- 28 -

12) CD_IN (CD In Connector, Black)

You may connect the audio cable that came with your optical drive to the header.

Pin No.

Definition

1

CD-L

2

GND

3

GND

4

CD-R

1

13) SPDIF_I (S/PDIF In Header, Red)

This header supports digital S/PDIF in and can connect to an audio device that supports digital
audio out via an optional S/PDIF in cable. For purchasing the optional S/PDIF in cable, please
contact the local dealer.

Pin No.

Definition

1

Power

2

SPDIFI

3

GND

1
