Hardware Installation - 21 -

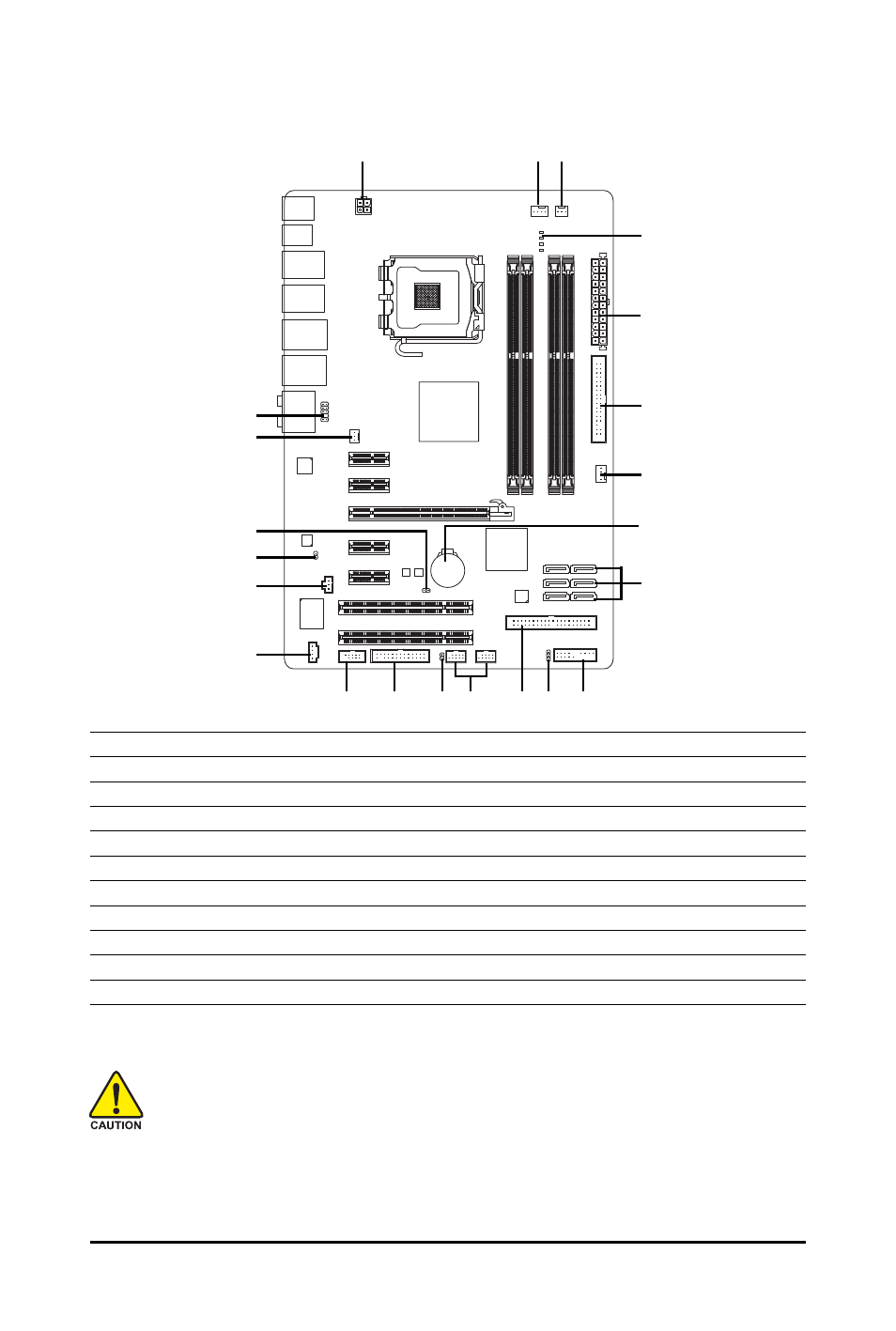

1-7 Internal Connectors
Read the following guidelines before connecting external devices:
•
First make sure your devices are compliant with the connectors you wish to connect.
•
Before installing the devices, be sure to turn off the devices and your computer. Unplug the
power cord from the power outlet to prevent damage to the devices.
•
After installing the device and before turning on the computer, make sure the device cable
has been securely attached to the connector on the motherboard.
2
1 3
18 7 9
8
4
13
4
6
5
14
11 15
19
21
1) ATX_12V
2) ATX
3) CPU_FAN
4) SYS_FAN1/SYS_FAN2
5) PWR_FAN
6) FDD
7) IDE
8) SATA2_0/1/2/3/4/5
9) PWR_LED
10) F_AUDIO
11) F_PANEL
12) CD_IN
13) SPDIF_I
14) SPDIF_O
15) F_USB1/F_USB2
16) LPT
17) COMA
18) CI
19) CLR_CMOS
20) BAT
21) PHASE LED
10
20
12
17 16
