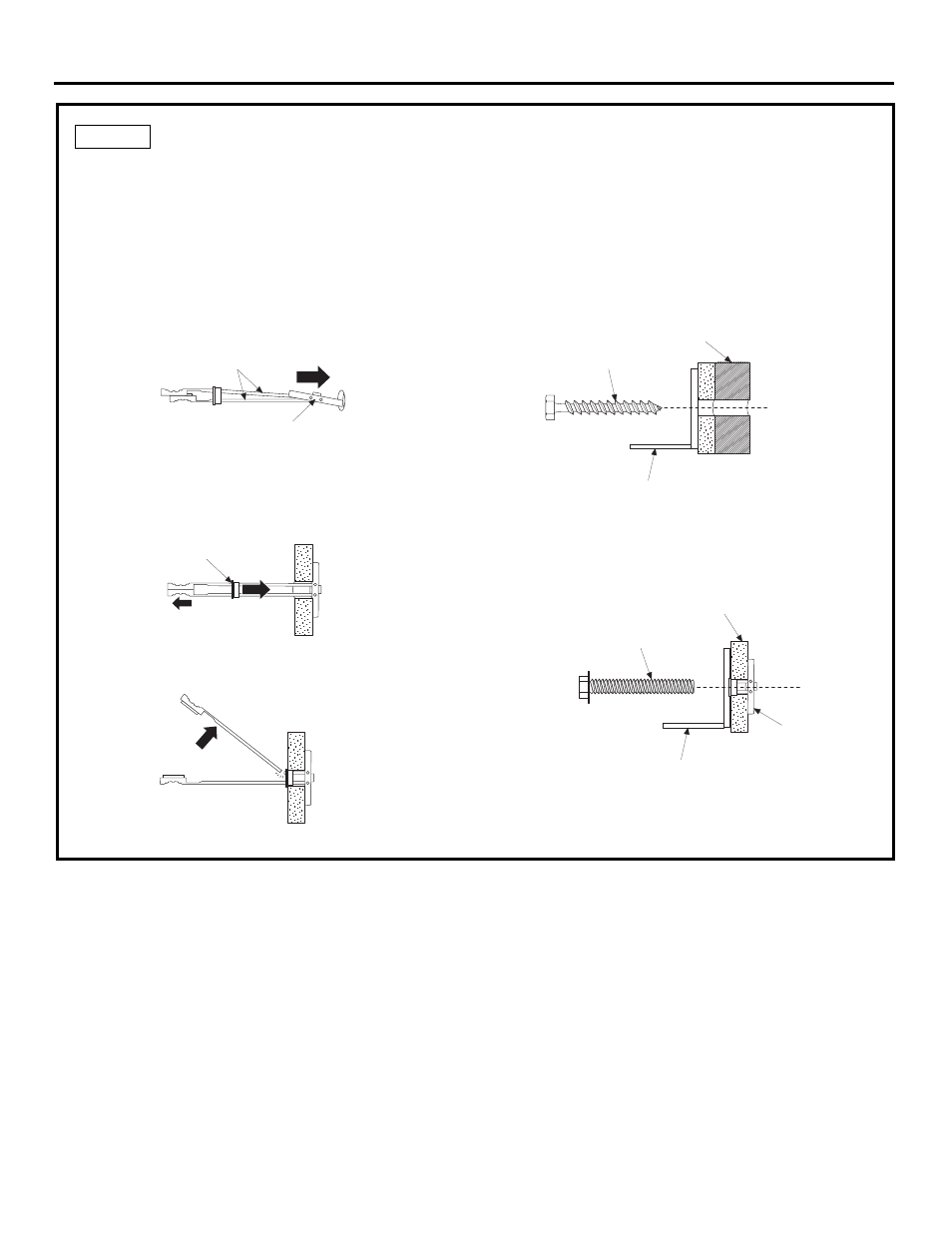

Install Screws and Bolts:
• Have someone hold the wall bracket centered

in place with each of the holes aligned with
the correct opening in the bracket and level
with the horizontal line.

• Insert the lag screws through the bracket

and into the stud. Tighten with a wrench.

• Insert the bolts into the toggle by hand until snug.

Tighten with a wrench.

Anti-Tip Wall Bracket

Bolt

Wall Toggle

Drywall or
Steel Stud

STEP 4 INSTALL ANTI-TIP BRACKET

(cont.)

Install Wall Toggles:
The wall toggles and bolts can be ordered as Service
Kit #WR49X10193. Wall toggles are installed in the
drywall and metal studs for stability. Install the wall
toggles as follows:
• Drill 1/2" holes at the wall markings made in the holes

at the ends of the wall bracket.

• Hold the metal channel flat against the plastic straps

and slide the channel through the hole.

• Gently pull back at the ends of the plastic straps

to make the channel rest flush behind the wall.

• Hold the ends of the straps in one hand and slide

the plastic cap along the straps until the flange
of the cap is flush with the wall.

• Place your thumb between the plastic straps and

bend up and down to snap the straps off at the wall.

Installation Instructions

13

Plastic Straps

Metal Channel

Cap

Wood Stud

Lag Screw

Anti-Tip Wall Bracket
