12 www.goodmanmfg.com SS-CPG180-240
P
roduct
S
PecificationS
e
leCTriCal
e
nTranCe
l
oCaTions
U
niT
C
learanCes
36” minimum
roof overhang

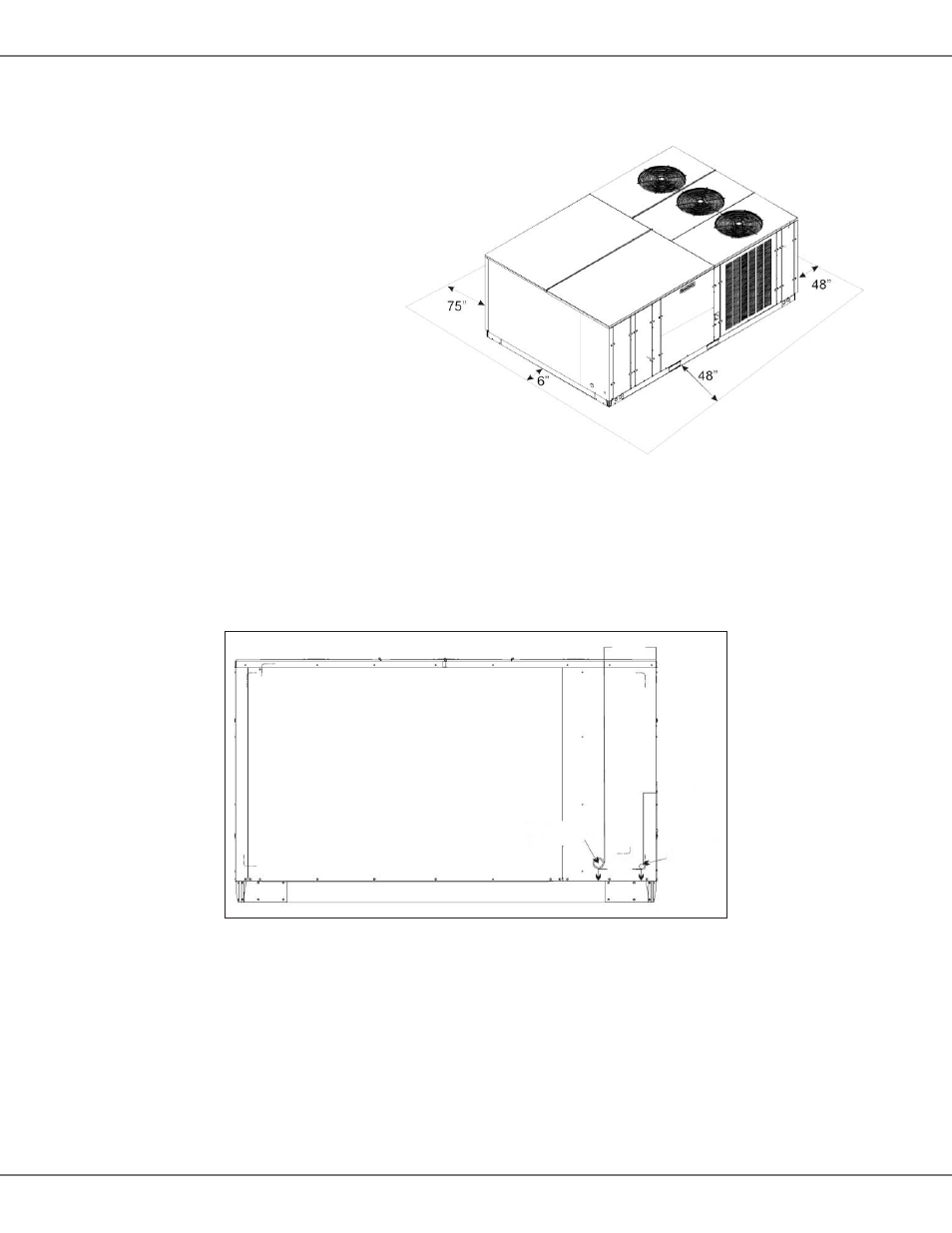

Maintain an adequate clearance around the unit for safety, service, maintenance, and
proper unit operation. Leave a total clearance of 75” on the main control panel side
of the unit for possible removal of fan shaft, coil, electric heat, and gas furnace.
Leave a clearance of 48” on all other sides of the unit for possible compressor
removal or service access, and to ensure proper ventilation and condenser
airflow. Do not install the unit beneath any obstruction. Install
the unit away from all building exhausts to inhibit Ingestion of
exhaust air into the unit’s fresh-air intake.
12¹/₈”
3³/₅”
Low-
Voltage
Entrance
High-Voltage
Entrance
3⁴/₅”
