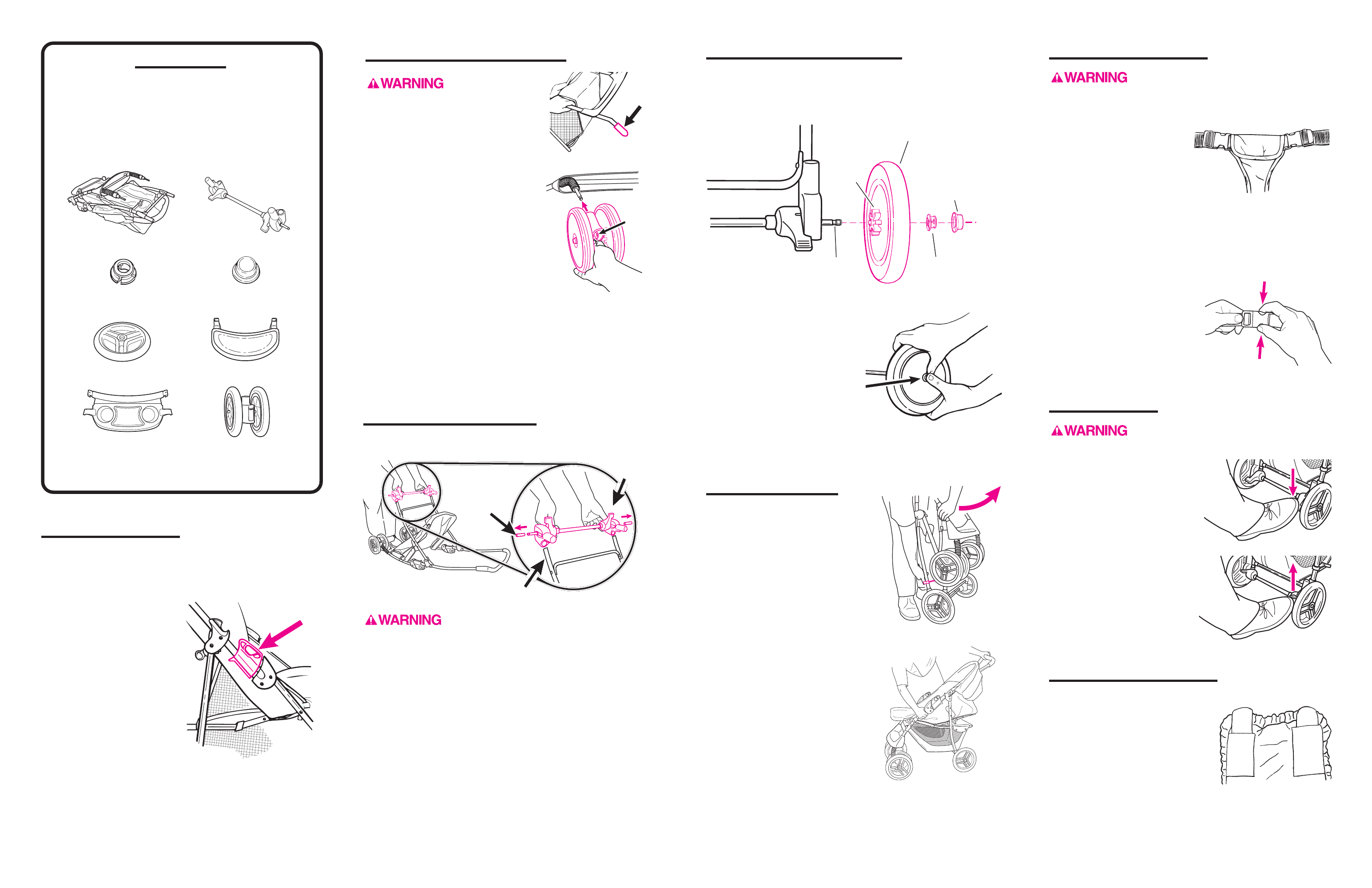

PARTS LIST
CHECK that you have all the parts listed below
BEFORE assembling your stroller.
If any parts are missing,
call Customer Service at 1-800-345-4109
or visit our Internet website, www.gracobaby.com.
THIS PRODUCT REQUIRES ADULT ASSEMBLY .
Frame
Rear wheel (2)
Cap
(2, 1 extra)
Front wheel
assembly (2)
Child’s tray
To Unpack Stroller
Step 1.
Flatten stroller carton to protect floor.
Step 2.
Open stroller on carton
until locking latches on
both sides are locked
as shown.
Step 3.
Push down on the footrest
until it snaps onto the bar
under it.
Locking
latch
To Assemble Front Wheels
To prevent
serious injury or death
from choking, remove and
IMMEDIATELY discard plastic
end caps on the front leg pins.
Step 1.
Line up pin with a wheel
assembly as shown. Plastic snap
inside wheel mount must be
away from pin.
Step 2.
Push wheel assembly onto pin
until it snaps into place.
Step 3.
Repeat for other wheel assembly.
Pull firmly on each wheel assembly to be sure the
wheel assemblies are securely attached.
End cap
To Assemble Rear Axle
To prevent serious injury or death from
choking, remove and immediately discard the plastic
covers on the axle.
Step 1.
Turn stroller over as pictured above.
Step 2.
Position rear axle assembly as shown.
Step 3.
Push both brackets on until plastic tabs snap into the slots
on the legs.
Pull firmly on each bracket to be sure the brackets are
securely attached.
To Unfold Stroller
Step 1.
Release storage latch and
begin opening stroller.
Step 2.
Continue unfolding until both
latches lock.
To Use Brakes
Always apply brakes when parking
stroller.
Push DOWN to park.
Check to make sure brake
is on by pushing the stroller.
Lift brake levers UP to stroll.
To Secure Your Child
Avoid serious injury from falling or
sliding out. Always use seat belt.
Step 1.
Place crotch strap between
legs and fasten both belt
buckles together.
Step 2.
Adjust belt at both buckles as needed to get a snug fit
around your child.
Step 3.
Squeeze sides of buckles to
release.
Plastic
snap
Rear axle assembly
Retainer
(2, 1 extra)
Parent’s tray
(on certain models—
screwdriver required
for assembly)
To Use Head Supports
To use stroller with a smaller
child, pull the plastic pieces
from pockets located in the
back of the cloth seat pad,
and reinsert them with curved
side toward the front.
To use stroller with a larger
child that does not need
head support, insert the plastic
pieces with the curved side
toward the back.
Back of cloth seat pad
To Assemble Rear Wheels
Place one rear wheel, red retainer, and white cap on one end
of rear axle in order as shown below. Push red retainer onto
axle BEFORE attaching white cap. Repeat on other side.
Snap red retainer into axle
groove. Then snap cap
over red retainer as shown.
Be sure cap is snapped securely over red retainer.
Rear
axle
Retainer (red)
Wide end
toward wheel
Wheel
Cap (white)
Attach AFTER
retainer is on axle
Spokes
toward
inside
Rear legs
Brake levers
point toward
you
Remove
end caps
