Wiring, Caution – Furuno GP-80 User Manual
Page 8
5
4. WIRING

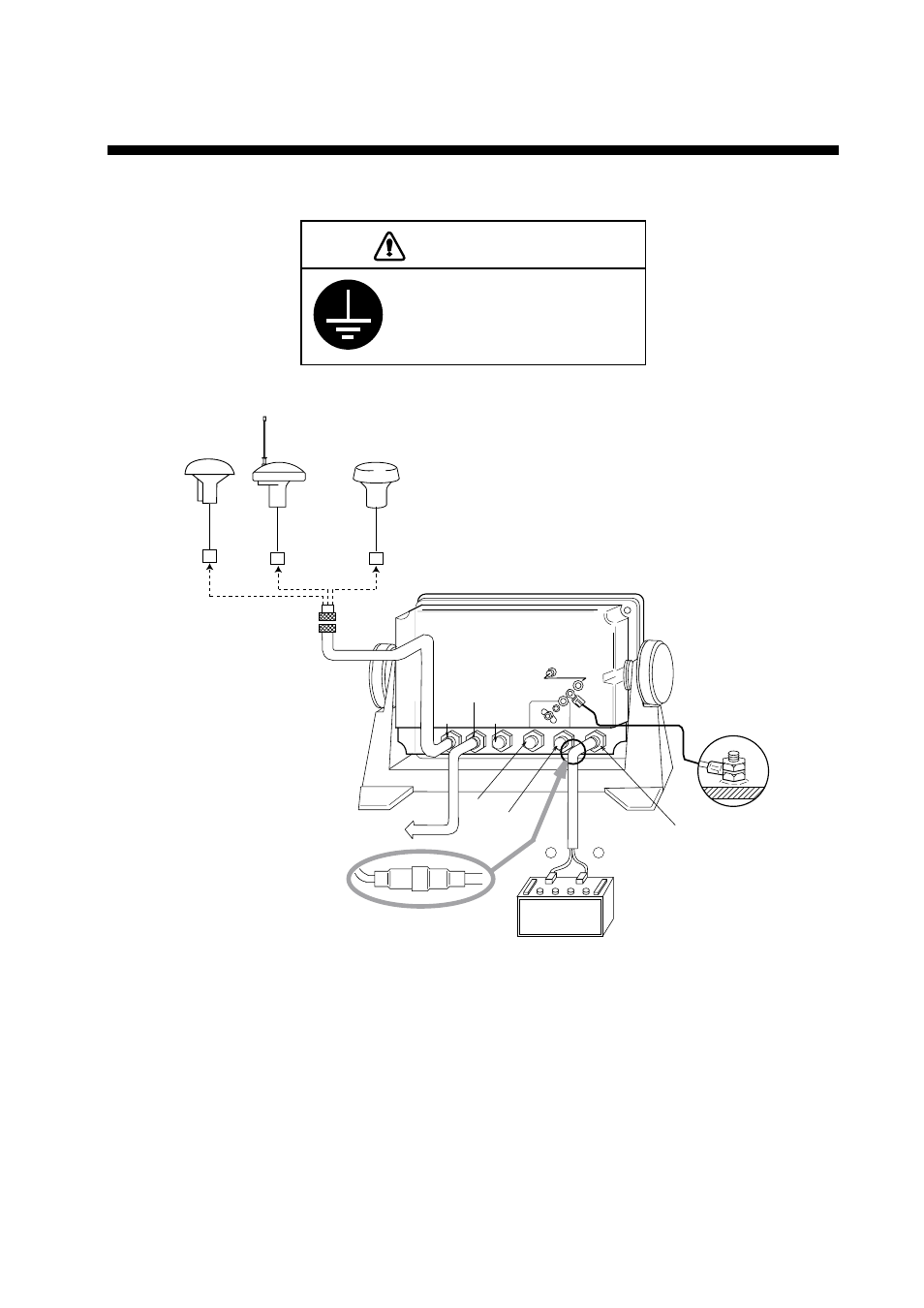

The figure below shows the connection of cables on rear of display unit.
Ground the receiver to
prevent loss of sensitivity
and mutual interference.
CAUTION
Rear of Display Unit
Ground
External Equipment
FUSE 2A
Black
Red
DATA1
DATA3
DATA4
DATA2
INPUT
10.2~31.2VDC
Antenna Unit
GPA-018S GPA-017S
20cm
GPA-019S
ANT
+
–
Connection of cables on display unit
