Step 1. Open the window and mark the centerline of
the window stool (or desired air conditioner
location).
Step 2. Carefully place the case on the window stool
and align the center mark on the bottom front
with the centerline of the stool
Step 3. Pull the window down behind the top
mounting rail
NOTE: Do not shut the window so tightly that
movement of the frame curtains is restricted.
Step 4. Loosely assemble the sill supports.
Step 5. Select the position that will place the sill
supports near the outermost point on the sill.
Attach the sill supports to the case track hole
in relation to the selected position using 2 type
A screws in each support.
Step 6. Adjust the bolt and the nut in each support so
that the case is installed with a slight
downward tilt (about 1/2").
Step 7. Secure the case to the window stool by using
3 type B screws.
Step 8. Pull the frame curtains to each window sash
track. Attach them on each side to the window
sash and the window stool using 4 type C
screws.
Step 1. Attach the window locking bracket with type C
screw.
Step 2. Cut the foam top window gasket to the
window width.
Step 3. Stuff the foam between the glass and the
window to prevent air and insects from getting
into the room.
—15—

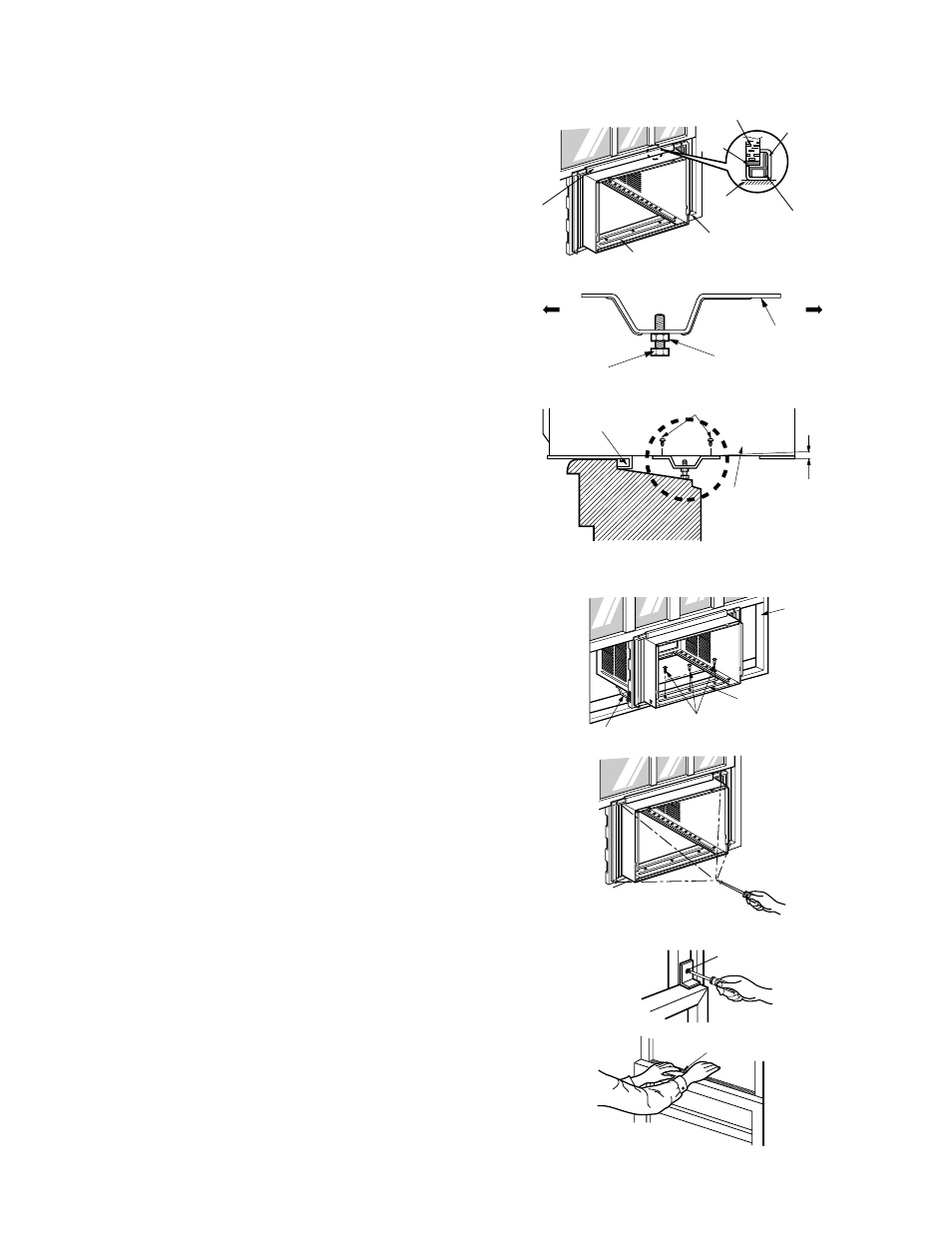

3.7 INSTALL THE CASE IN THE WINDOW
3.8 INSTALL THE WINDOW LOCKING BRACKET
AND THE FOAM TOP WINDOW GASKET
Top
mounting
rail
Front angle
Window stool
Sash
seal
Cabinet
Frame curtains
INDOOR OUTDOOR
Sill Support
Nut
Bolt
INDOOR
OUTDOOR
ABOUT
1/2"
Cabinet
Screw(Type A)
Frame guide
(Type C)
Screw
Sash
Track
Front Angle
Screw(Type B)
Sill Support
(Type C)
Screw
Foam top window gasket
Top
mountaing rail Window Sash
